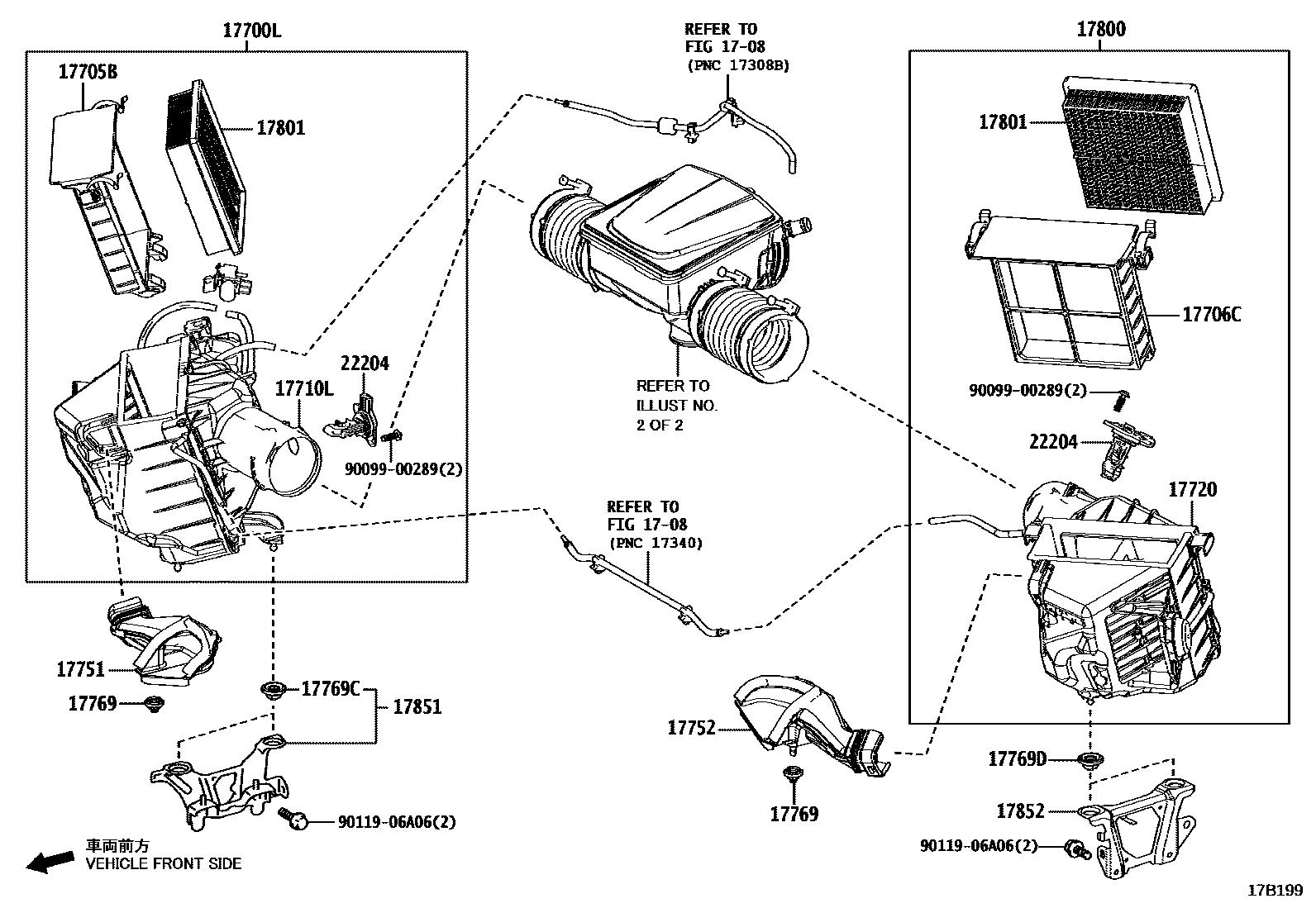

AIR CLEANER

0001 1��������� 0002 1��������� & ������������

1708VACUUM PIPING

→ Go to FIG 17-08

17700LCLEANER ASSY, AIR W/ELEMENT, RH

main17700-38260i2URGSE..URZ100202007

17705BCAP SUB-ASSY, AIR CLEANER RH

main17705-38190i2URGSE..URZ100202007

17706CCAP SUB-ASSY, AIR CLEANER, LH

main17705-38190i2URGSE..URZ100202007

17710LCLEANER ASSY, AIR W/O ELEMENT, RH

main17710-38110i2URGSE..URZ100202007

17720CLEANER ASSY, AIR W/O ELEMENT, LH

main17720-38020i2URGSE..URZ100202007

17751INLET, AIR CLEANER, NO.1

main17751-38130i2URGSE..URZ100202007

17752INLET, AIR CLEANER, NO.2

main17752-38020i2URGSE..URZ100202007

17769SUPPORT, AIR CLEANER

main17769-25040i2URGSE..URZ100202007

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25010i2URGSE..URZ100202007

17769DSUPPORT, AIR CLEANER, NO.2

main17769-25010i2URGSE..URZ100202007

17800CLEANER ASSY, AIR W/ELEMENT, LH

main17800-38040i2URGSE..URZ100202007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38060i2URGSE..URZ100202007

17851BRACKET, AIR CLEANER SUPPORT

main17850-38010i2URGSE..URZ100202007

17852BRACKET, AIR CREANER SUPPORT, NO.2

main17851-38030i2URGSE..URZ100202007

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i2URGSE..URZ100202007

9009900289

main90099-00289

9011906A06

main90119-06A06

18 parts on this diagram · 2 diagrams in section
