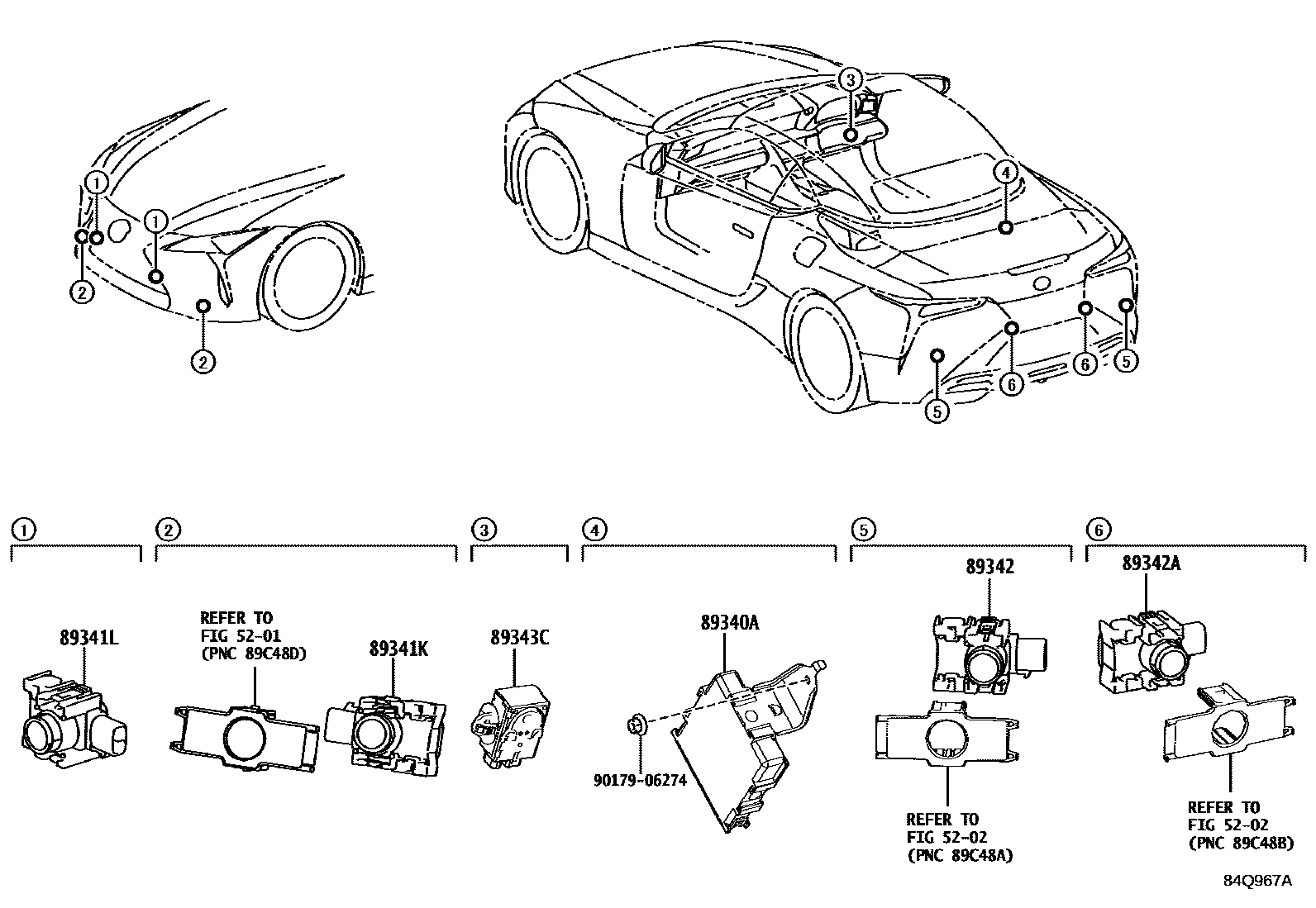

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
WHITE NOVA GF.,083
HAKUJI 2,094
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
89341LSENSOR, ULTRASONIC, FRONT CENTER
89342SENSOR, ULTRASONIC, REAR CORNER
WHITE NOVA GF.,083
HAKUJI 2,094
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
89342ASENSOR, ULTRASONIC, REAR CENTER
WHITE NOVA GF.,083
HAKUJI 2,094
SONIC TITANIUM,1J7
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
GRAPHITE BLACK GF.,223
RADIANT RED CONTRAST LAYE,3T5
SONIC COPPER,4Y5
NAPLES YELLOW,5C1
TERRANE KHAKI M.M.,6X4
HEAT BLUE CONTRAST LAYERI,8X1
89343CBUZZER, CLEARANCE WARNING, NO.1
9017906274
main90179-06274
9 parts on this diagram · 1 diagram in section
