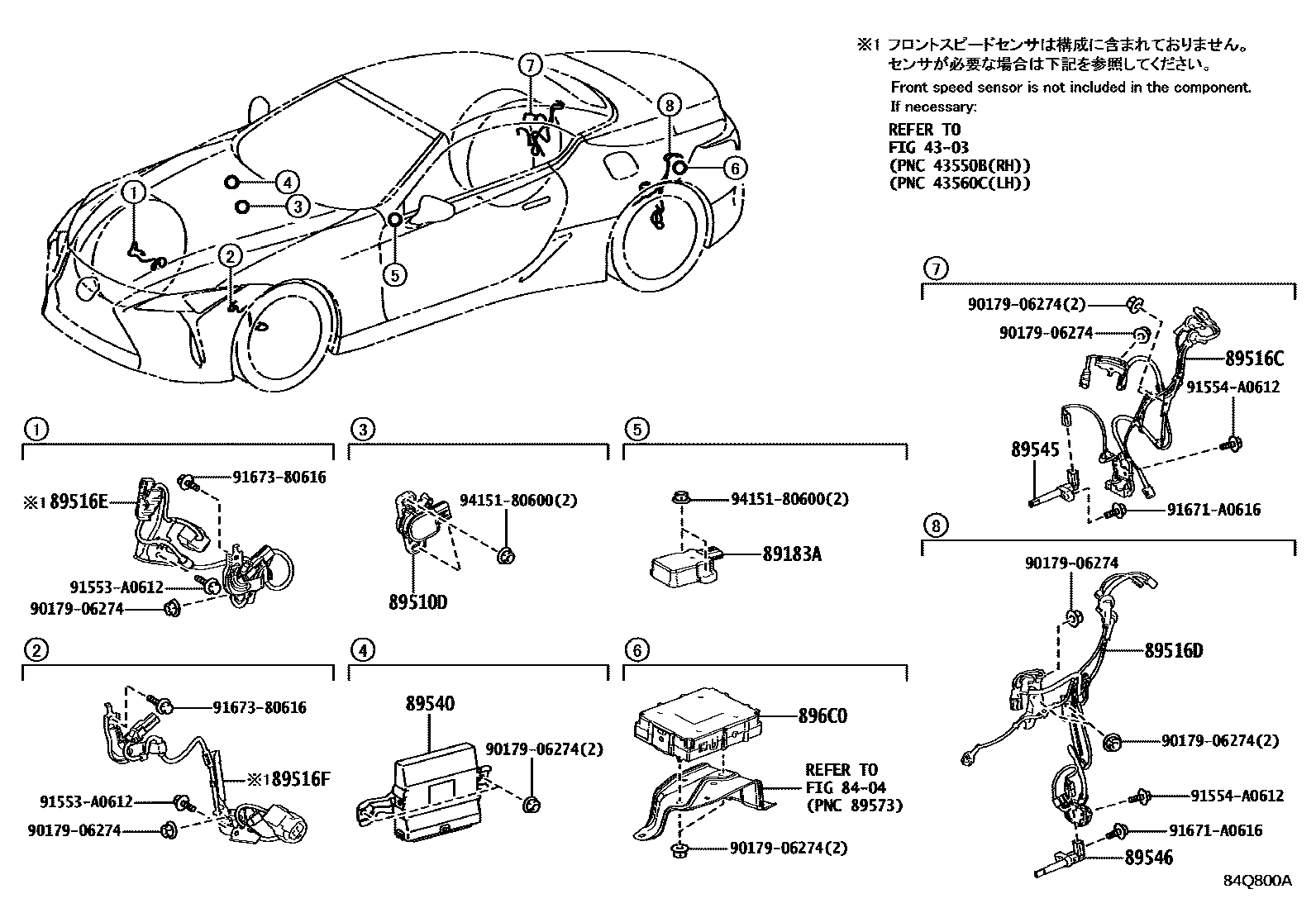

ABS & VSC

0001 1 0002 1

4303FRONT AXLE HUB

→ Go to FIG 43-03

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

89183ASENSOR, YAWRATE

main89183-48020iGWZ100,URZ100202305

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33030iGWZ100,URZ100202305

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-11030iGWZ100,URZ100202305

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-11040iGWZ100,URZ100202305

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-11010iGWZ100,URZ100202305

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-11020iGWZ100,URZ100202305

89540COMPUTER ASSY, SKID CONTROL

main895B0-11810iURZ100..CONV202305

main895B0-11A60iURZ100..CP202305

main895B0-11B80iGWZ100202305

89545SENSOR, SPEED, REAR RH

main89545-30090iGWZ100,URZ100202305

89546SENSOR, SPEED, REAR LH

main89546-30090iGWZ100,URZ100202305

896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET

main896C0-11010iGWZ100,URZ100202305

9017906274

main90179-06274

91553A0612

main91553-A0612

91554A0612

main91554-A0612

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

18 parts on this diagram · 2 diagrams in section
