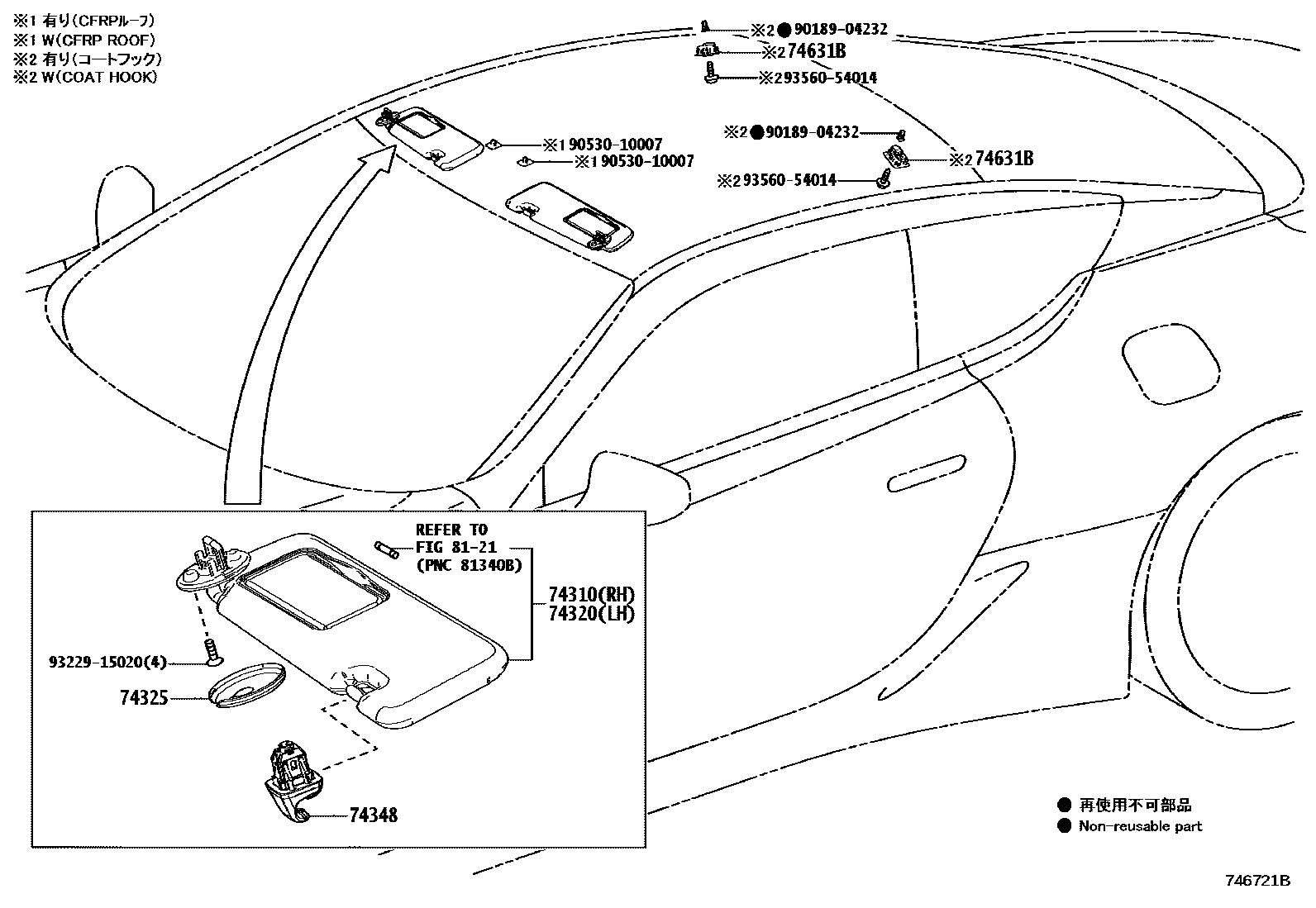

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-11050-20iGWZ100,URZ100..CP202305

BLACK,TRIM2#,3#

main74310-11050-A2iGWZ100,URZ100..CP202305

WHITE,TRIM0#

main74310-11050-E8iGWZ100,URZ100..CP202305

OCHRE,TRIM4#

main74310-11140-A5iURZ100..CONV202305

WHITE,TRIM0#

main74310-11140-C3iURZ100..CONV202305

BLACK,TRIM2#,3#

main74310-11140-E4iURZ100..CONV202305

OCHRE,TRIM4#

74320VISOR ASSY, LH

main74320-11051-20iGWZ100,URZ100..CP202305

BLACK,TRIM2#,3#

main74320-11051-A2iGWZ100,URZ100..CP202305

WHITE,TRIM0#

main74320-11051-E8iGWZ100,URZ100..CP202305

OCHER,TRIM4#

main74320-11101-A5iURZ100..CONV202305

WHITE,TRIM0#

main74320-11101-C3iURZ100..CONV202305

BLACK,TRIM2#,3#

main74320-11101-E4iURZ100..CONV202305

OCHRE,TRIM4#

74325COVER, VISOR BRACKET

main74317-11010-A2iURZ100..CONV202305

WHITE,TRIM0#

main74317-11010-C0iURZ100..CONV202305

BLACK,TRIM2#,3#

main74317-11010-E1iURZ100..CONV202305

OCHER,TRIM4#

main74317-60020-A9iGWZ100,URZ100..CP202305

L WHITE,TRIM0#

main74317-60020-C2iGWZ100,URZ100..CP202305

BLACK,TRIM2#,3#

main74317-60020-E4iGWZ100,URZ100..CP202305

OCHRE,TRIM4#

74348HOLDER, VISOR

main74348-33040-02iGWZ100,URZ100..CP202305

L WHITE,TRIM0#

main74348-33040-C2iGWZ100,URZ100..CP202305

BLACK,TRIM2#,3#

main74348-33040-E5iGWZ100,URZ100..CP202305

OCHRE,TRIM4#

main74348-47010-A1iURZ100..CONV202305

L WHITE,TRIM0#

main74348-47010-C0iURZ100..CONV202305

BLACK,TRIM2#,3#

main74348-47010-E3iURZ100..CONV202305

OCHER,TRIM4#

74631BHOOK, COAT

main74631-11010-A1iGWZ100,URZ100..CP202305

WHITE,TRIM0#

main74631-11010-C1iGWZ100,URZ100..CP202305

BLACK,TRIM2#,3#

main74631-11010-E0iGWZ100,URZ100..CP202305

OCHRE,TRIM4#

8121INTERIOR LAMP

→ Go to FIG 81-21

9018904232

main90189-04232

9053010007

main90530-10007

9322915020

main93229-15020

9356054014

main93560-54014

10 parts on this diagram · 1 diagram in section
