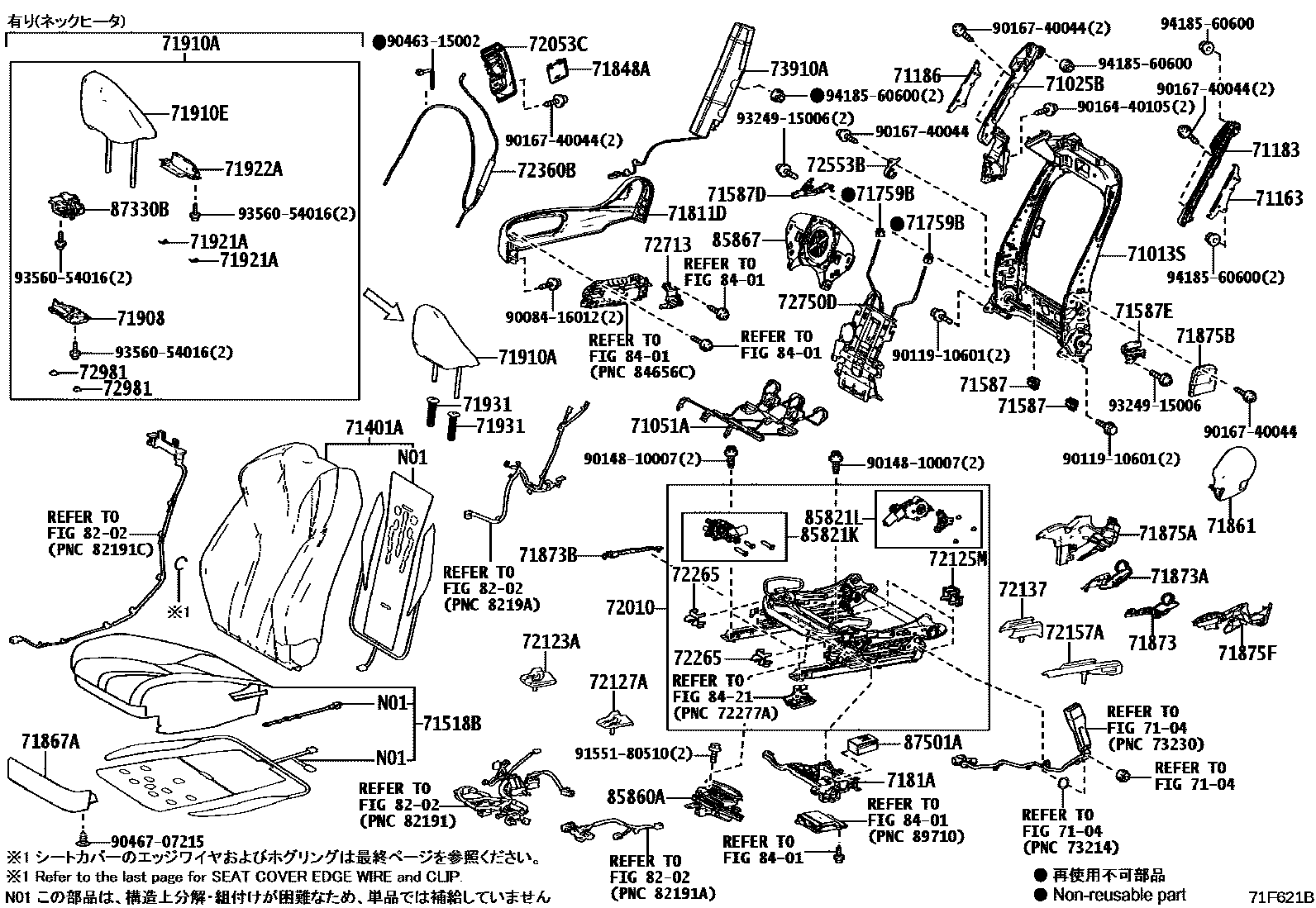

FRONT SEAT & SEAT TRACK

0001 1��������� 0002 1���������� 0003 1�������������� & ������� 0004 1��������� ������� 0005 1��������� �������� 0006 1���������� ������� 0007 1���������� �������� 0008 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-11030iURZ100..CONV202305

main71013-11021supersedes 71013-11011iGWZ100,URZ100..CP202305-202501

71025BSUPPORT SUB-ASSY, FRONT SEATBACK, RH

main71025-11020supersedes 71025-11010iURZ100..CONV202305

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-11010iGWZ100,URZ100202305

71163BRACKET, FRONT SEATBACK SUPPORT, RH

main71164-11010iGWZ100,URZ100202305

71183SUPPORT, FRONT SEATBACK, RH

main71026-11030supersedes 71184-11010iURZ100..CONV202305

71186BRACKET, FRONT SEAT SIDE SUPPORT, RH

main71186-11010iGWZ100,URZ100202305

71401ABACK SUB-ASSY, FRONT SEAT, RH

main71401-11130-C9supersedes 71401-11110-C5iGWZ100,URZ100..CP202305-202501

main71401-11130-D9supersedes 71401-11110-D1iGWZ100,URZ100..CP202305-202501

main71401-11130-E6supersedes 71401-11110-E1iGWZ100,URZ100..CP202501

main71401-11130-J0iURZ100..CP202309-202409

main71401-11260-A0supersedes 71401-11110-A0iGWZ100,URZ100..CP202305-202501

71518BPAD, FRONT SEAT CUSHION W/COVER, RH

main71101-11120-C1iGWZ100,URZ100..CP202305-202501

main71101-11120-D1iGWZ100,URZ100..CP202305-202501

main71101-11120-E0iGWZ100,URZ100..CP202305-202501

main71101-11120-J0iURZ100..CP202309-202409

main71101-11150-A0iURZ100..CP202501-202508

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×4iGWZ100,URZ100202305

71587DPROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR RH SEAT)

main71587-11010iGWZ100,URZ100202305

71587EPROTECTOR, FRONT SEATBACK EDGE, INNER(FOR RH SEAT)

main71587-11020iGWZ100,URZ100202305

71759BHOOK, FRONT SEATBACK

main71759-50040×4iGWZ100,URZ100202305

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-11010-A2iGWZ100,URZ100202305

WHITE,TRIM0#

main71811-11010-C3iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main71811-11010-E3iGWZ100,URZ100202305

OCHRE,TRIM4#

main71811-11010-J3iURZ100..CP202309-202409

BLUE,TRIM8#

7181AHOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

main7181A-11010iGWZ100,URZ100202305

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-11010-A0iGWZ100,URZ100..CP202305

WHITE,TRIM0#

main71848-11010-C1iGWZ100,URZ100..CP202305

BLACK,TRIM2#,30

main71848-11010-D2iGWZ100,URZ100..CP202305

DK. ROSE,TRIM30

main71848-11020-C0iURZ100..CONV202501

BLACK,TRIM2#,3#

main71848-11020-E1iURZ100..CONV202305

OCHER,TRIM4#

main71848-11010-E1supersedes 71848-11010-E2iGWZ100,URZ100..CP202501

main71848-11010-J0iURZ100..CP202309-202409

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-11010-A1iGWZ100,URZ100202305

WHITE,TRIM0#

main71861-11010-C1iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main71861-11010-E1iGWZ100,URZ100202305

OCHRE,TRIM4#

main71861-11010-J0iURZ100..CP202309-202409

BLUE,TRIM8#

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-11010-A1iGWZ100,URZ100202305

WHITE,TRIM0#

main71867-11010-C2iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main71867-11010-E3iGWZ100,URZ100202305

OCHRE,TRIM4#

main71867-11010-J0iURZ100..CP202309-202409

BLUE,TRIM8#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-11010iGWZ100,URZ100202305

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-47070iGWZ100,URZ100202305

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-47090iGWZ100,URZ100202305

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-11020-A1iGWZ100,URZ100202305

WHITE,TRIM0#

main71875-11020-C1iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main71875-11020-E1iGWZ100,URZ100202305

OCHRE,TRIM4#

main71875-11020-J0iURZ100..CP202309-202409

BLUE,TRIM8#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-11030iGWZ100,URZ100202305

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-11010-A1iGWZ100,URZ100202305

WHITE,TRIM0#

main71875-11010-C1iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main71875-11010-E1iGWZ100,URZ100202305

OCHRE,TRIM4#

main71875-11010-J0iURZ100..CP202309-202409

BLUE,TRIM8#

71908COVER SUB-ASSY, FRONT SEAT HEADREST

main71908-11010

71910AHEADREST ASSY, FRONT SEAT

main71910-11040-A0×2supersedes 71910-11030-A3iGWZ100,URZ100..CP202305-202501

sub71910-11070

main71910-11040-C5×2supersedes 71910-11030-27iGWZ100,URZ100..CP202305-202501

sub71910-11070

main71910-11040-D6×2supersedes 71910-11030-D1iGWZ100,URZ100..CP202501

sub71910-11070

main71910-11040-E3×2supersedes 71910-11030-E5iGWZ100,URZ100..CP202305-202501

sub71910-11070

main71910-11040-J0×2iURZ100..CP202309-202409

sub71910-11070

main719B0-11020-A0supersedes 719A0-11020-A0iURZ100..CONV202305-202501

main719B0-11020-C0supersedes 719B0-11040-C0iURZ100..CONV202305-202501

main719B0-11020-D1supersedes 719A0-11020-D1iURZ100..CONV202305-202501

main719B0-11020-E0supersedes 719B0-11040-E0iURZ100..CONV202305-202501

main719B0-11060-A0supersedes 719A0-11020-A0iURZ100..CONV202305-202501

main719B0-11060-C0supersedes 719B0-11040-C0iURZ100..CONV202305-202501

main719B0-11060-D1supersedes 719A0-11020-D1iURZ100..CONV202305-202501

main719B0-11060-E0supersedes 719B0-11040-E0iURZ100..CONV202305-202501

71910EHEADREST ASSY, FRONT SEAT, RH

71921ACOVER, FRONT SEAT HEADREST

71922ACOVER, FRONT SEAT HEADREST UNDER

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5×2iGWZ100,URZ100..CP202305

main71931-47030-C4×2iGWZ100,URZ100..CP202305

main71930-47050-J1×2iURZ100..CP202309-202409

main71931-47030-J1×2iURZ100..CP202309-202409

72010ADJUSTER ASSY, FRONT SEAT, RH

main72010-11030iGWZ100,URZ100202305

72053CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

main72053-11010-A0iGWZ100,URZ100..CP202305

WHITE,TRIM0#

main72053-11010-C1iGWZ100,URZ100..CP202305

BLACK,TRIM2#,30

main72053-11010-D2iGWZ100,URZ100..CP202305

DK. ROSE,TRIM30

main72053-11030-C1iURZ100..CONV202305-202501

BLACK,TRIM2#

main72053-11010-E1supersedes 72053-11010-E2iGWZ100,URZ100..CP202305-202501

main72053-11010-J0iURZ100..CP202309-202409

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-11010-A2iGWZ100,URZ100202305

WHITE,TRIM0#

main72123-11010-C1iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main72123-11010-E1iGWZ100,URZ100202305

OCHRE,TRIM4#

main72123-11010-J0iURZ100..CP202305-202409

BLUE,TRIM8#

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-47020iGWZ100,URZ100202305

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-11010-A2iGWZ100,URZ100202305

WHITE,TRIM0#

main72127-11010-C1iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main72127-11010-E1iGWZ100,URZ100202305

OCHRE,TRIM4#

main72127-11010-J0iURZ100..CP202305-202409

BLUE,TRIM8#

72137COVER, SEAT TRACK, OUTER RH

main72137-11010-A2iGWZ100,URZ100202305

WHITE,TRIM0#

main72137-11010-C1iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main72137-11010-E1iGWZ100,URZ100202305

OCHRE,TRIM4#

main72137-11010-J0iURZ100..CP202305-202409

BLUE,TRIM8#

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-11010-A2iGWZ100,URZ100202305

WHITE,TRIM0#

main72157-11010-C1iGWZ100,URZ100202305

BLACK,TRIM2#,3#

main72157-11010-E1iGWZ100,URZ100202305

OCHRE,TRIM4#

main72157-11010-J0iURZ100..CP202305-202409

BLUE,TRIM8#

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-47020iGWZ100,URZ100202305

72360BCABLE ASSY, RECLINING ADJUSTER EQUALIZING RH

main72360-11010iGWZ100,URZ100202305

72553BPROTECTOR, RECLINING COVER, RH

main72553-11010iGWZ100,URZ100..CP202305

main72553-11020iURZ100..CONV202305

72713BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

main72713-11010iGWZ100,URZ100202305

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-11010iGWZ100,URZ100202305

72981COVER, FRONT SEAT HEADREST

main72981-11040

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-11010iGWZ100,URZ100..CP202305

main73910-11030iURZ100..CONV202305

8202

8401

8421

85821KMOTOR ASSY, POWER SEAT TILT, RH

main85801-11020iGWZ100,URZ100202305

85821LMOTOR ASSY, POWER SEAT LIFTER, RH

main85801-11030iGWZ100,URZ100202305

85860ABLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH

main85801-11010iGWZ100,URZ100202305

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-11011iGWZ100,URZ100202305

87330BBLOWER ASSY, HEATER

87501ACONTROL SUB-ASSY, SEAT HEATER, RH

main87501-11010iGWZ100,URZ100202305

9008416012

main90084-16012

9011910601

main90119-10601

9014810007

main90148-10007

9016440105

main90164-40105

9016740044

main90167-40044

9046315002

main90463-15002

9046707215

main90467-07215

9155180510

main91551-80510

9324915006

main93249-15006

9356054016

main93560-54016

9418560600

main94185-60600

64 parts on this diagram · 8 diagrams in section
