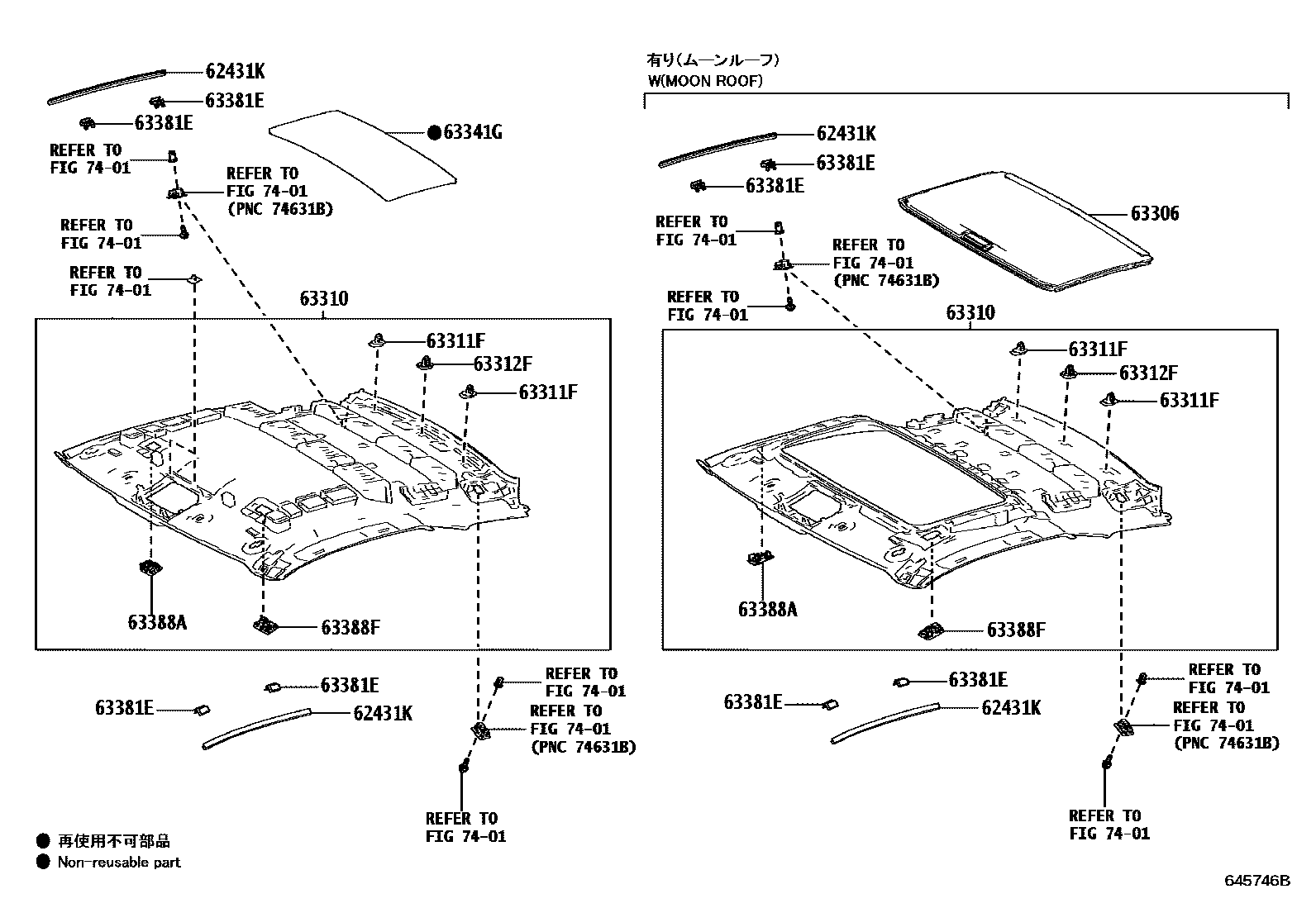

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

62431KGARNISH, ROOF SIDE RAIL

main62431-11010×2iGWZ100,URZ100..CP202305

63306TRIM SUB-ASSY, SUNSHADE

main63306-11010-A0iURZ100..CP202305-202310

main63306-11010-C0iGWZ100,URZ100..CP; URZ100..CP202305

main63306-11010-E0iGWZ100,URZ100..CP; URZ100..CP202305

main63306-11020-C1supersedes 63306-11010-C0iGWZ100,URZ100..CP202305

main63306-11020-E1supersedes 63306-11010-E0iGWZ100,URZ100..CP202305

63310HEADLINING ASSY, ROOF

main63311-11060-A0iURZ100..CONV202305

CREAM,TRIM0#

main63311-11060-C0iURZ100..CONV202305

BLACK,TRIM2#,3#

main63311-11060-E0iURZ100..CONV202305

CARAMEL,TRIM4#

main63310-11021-C6supersedes 63310-11011-C6iGWZ100,URZ100..CP202305

main63310-11021-E5supersedes 63310-11011-E5iGWZ100,URZ100..CP202305

main63310-11031-C7iURZ100..CP202305-202409

main63310-11031-E5supersedes 63310-11011-E5iGWZ100,URZ100..CP202305

main63310-11031-J2iURZ100..CP202309-202409

main63310-11071-A0supersedes 63310-11011-A0iGWZ100,URZ100..CP202305

main63310-11071-C3supersedes 63310-11011-C6iGWZ100,URZ100..CP202305

main63310-11071-E2supersedes 63310-11011-E5iGWZ100,URZ100..CP202305

63311FCLIP, ROOF HEADLINING, NO.1

main90467-09126×2iGWZ100,URZ100..CP202305

63312FCLIP, ROOF HEADLINING, NO.2

main90467-10181iGWZ100,URZ100..CP202305

63341PAD, ROOF SILENCER, NO.1

main63341-11030×2iURZ100..CONV202305

63341GPAD, ROOF SILENCER

main63341-11010iGWZ100,URZ100..CP202305

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main61365-11020×8iURZ100..CONV202305

main63381-11010×4iGWZ100,URZ100..CP202305

63388ACOVER, ROOF HEADLINING HOLDER

main63388-11031-A0supersedes 63388-11011-A0iGWZ100,URZ100..CP202305

main63388-11031-C4supersedes 63388-11011-C5iGWZ100,URZ100..CP202305

main63388-11031-E2supersedes 63388-11011-E2iGWZ100,URZ100..CP202305

main63388-11031-J0iURZ100..CP202309-202409

63388FCOVER, ROOF HEADLINING HOLDER, LH

main63388-11041-A0supersedes 63388-11021-A0iGWZ100,URZ100..CP202305

main63388-11041-C4supersedes 63388-11021-C4iGWZ100,URZ100..CP202305

main63388-11041-E2iURZ100..CP202305-202409

main63388-11041-J0iURZ100..CP202309-202409

7401ARMREST & VISOR

→ Go to FIG 74-01

11 parts on this diagram · 2 diagrams in section
