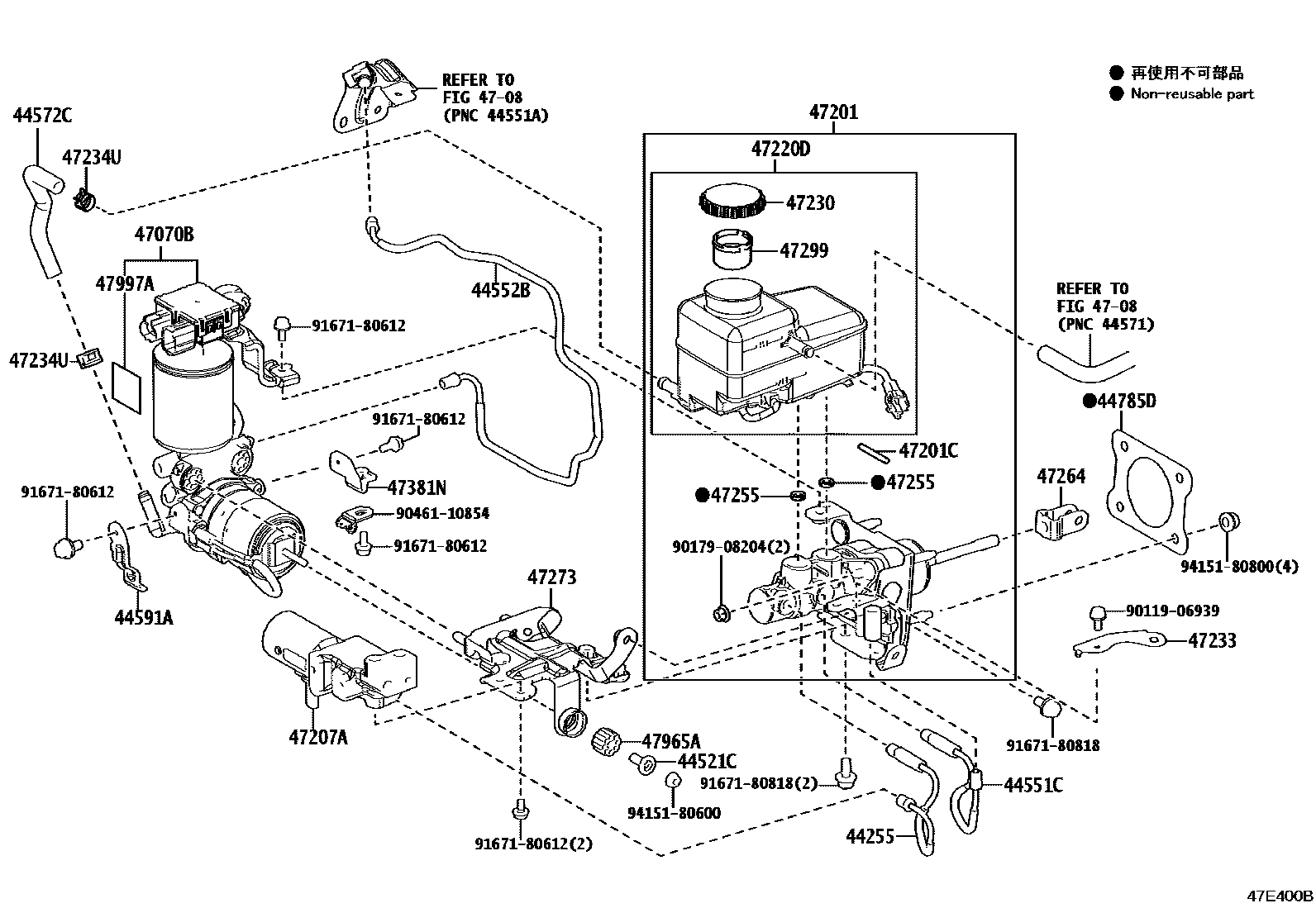

BRAKE MASTER CYLINDER

44255TUBE, BRAKE MASTER CYLINDER

main44255-11020iGWZ100,URZ100202305

44521CCOLLAR, BRAKE ACTUATOR CASE

main44521-47010iGWZ100,URZ100202305

44551CTUBE, BRAKE ACTUATOR, NO.1

main44551-11040iGWZ100,URZ100202305

44552BTUBE, BRAKE ACTUATOR, NO.2

main44552-11040iGWZ100,URZ100202305

44572CHOSE, BRAKE ACTUATOR, NO.2

main44572-11020iGWZ100,URZ100202305

44591ABRACKET, BRAKE ACTUATOR, NO.1

main44591-11040iGWZ100,URZ100202305

44785DGASKET, BRAKE MASTER CYLINDER

main44785-12040iGWZ100,URZ100202305

47070BPUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR

main47070-11040iGWZ100,URZ100202305

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-11050iGWZ100,URZ100202305

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGWZ100,URZ100202305

47207ACYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR

main47207-11030iGWZ100,URZ100202305

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-11050iGWZ100,URZ100202305

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11020iGWZ100,URZ100202305

47233BRACKET, RESERVOIR

main47233-11020iGWZ100,URZ100202305

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-51501×2iGWZ100,URZ100202305

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iGWZ100,URZ100202305

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-63020iGWZ100,URZ100202305

47273BRACKET, BRAKE STROKE SIMULATOR

main47273-11020iGWZ100,URZ100202305

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-30190iGWZ100,URZ100202305

47381NBRACKET, TUBE CLAMP

main47381-11020iGWZ100,URZ100202305

47965ABUSH, BRAKE BOOSTER PUMP

main47965-30010iGWZ100,URZ100202305

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iGWZ100,URZ100202305

9011906939

main90119-06939

9017908204

main90179-08204

9046110854

main90461-10854

9167180612

main91671-80612

9167180818

main91671-80818

9415180600

main94151-80600

9415180800

main94151-80800

30 parts on this diagram · 1 diagram in section
