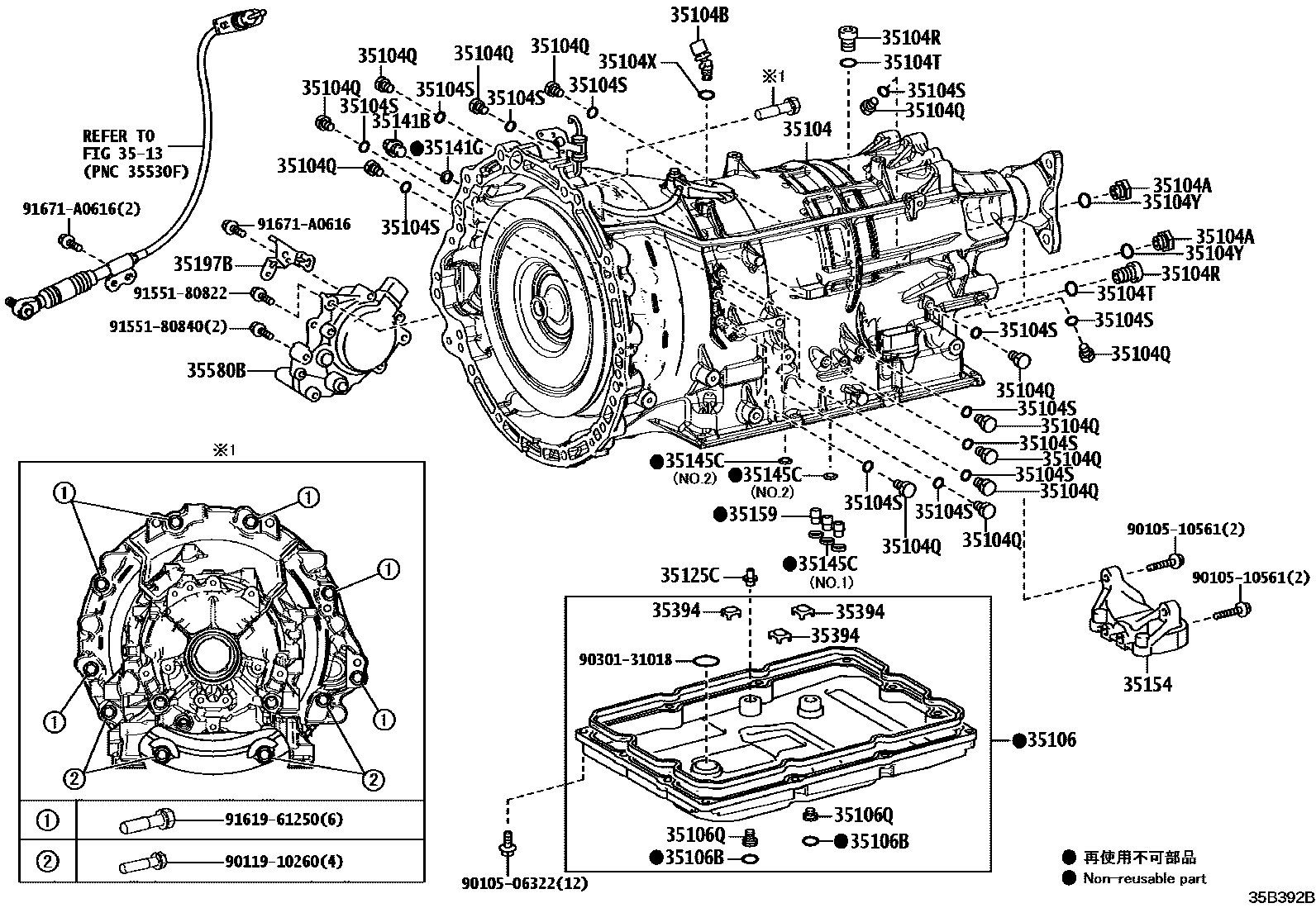

TRANSMISSION CASE & OIL PAN (ATM)

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-11010iURZ100202305

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-18059×2iURZ100202305

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03238iURZ100202305

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×13iURZ100202305

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14011×2iURZ100202305

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×13iURZ100202305

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-11030×2iURZ100202305

35104XRING, O (FOR BREATHER PLUG)

main90301-08015iURZ100202305

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-15004×2iURZ100202305

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-11020iURZ100202305

35106BGASKET, DRAIN PLUG (ATM)

main90301-17022×2iURZ100202305

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-12039×2iURZ100202305

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-11020iURZ100202305

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-18060iURZ100202305

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90430-18008iURZ100202305

35145CGASKET, TRANSAXLE CASE

main35145-11020×3iURZ100202305

main35145-60020×2iURZ100202305

35154ADAPTER, TRANSMISSION CASE

main35154-11010iURZ100202305

35159GASKET, BRAKE DRUM

main35159-11010×3iURZ100202305

35197BBRACKET, HEAT INSULATOR, NO.2

main35197-11010iURZ100202305

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-11010×3iURZ100202305

35580BACTUATOR ASSY, SHIFT CONTROL

main35580-10010iURZ100202305

9010506322

main90105-06322

9010510561

main90105-10561

9011910260

main90119-10260

9030131018

main90301-31018

9155180822

main91551-80822

9155180840

main91551-80840

9161961250

main91619-61250

91671A0616

main91671-A0616

30 parts on this diagram · 1 diagram in section
