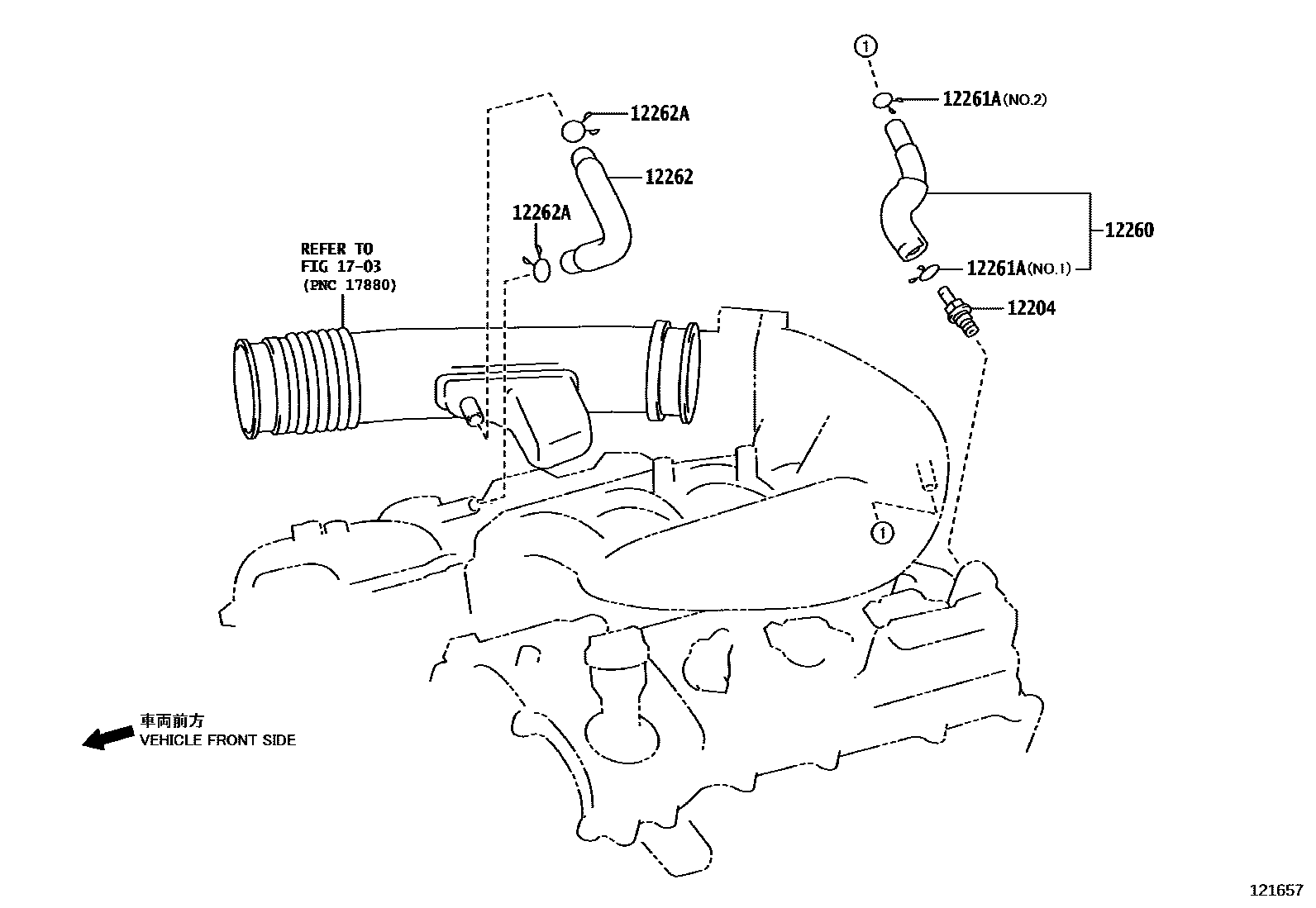

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-31150202305-202409

main12204-38020202305

12260HOSE ASSY, VENTILATION

main12260-31090202305-202403

main12260-31091202404

12261HOSE, VENTILATION

main12261-38130202305

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017202305

main90467-15120202305

main90467-24038202305

12262HOSE, VENTILATION, NO.2

main12262-31200202305

main12262-38100202305-202501

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004202305

1703AIR CLEANER

→ Go to FIG 17-03

7 parts on this diagram · 2 diagrams in section
