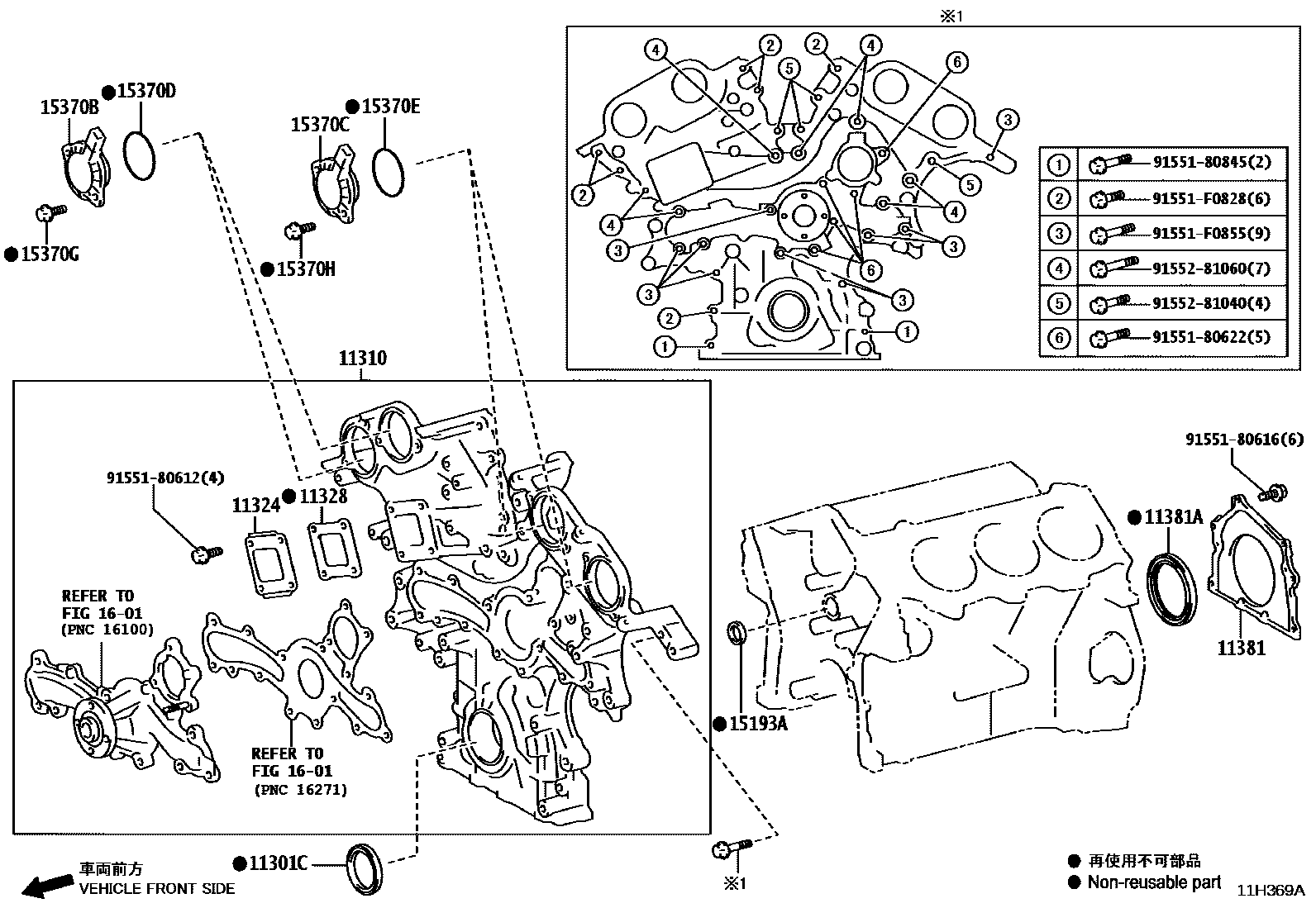

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11310COVER ASSY, TIMING CHAIN
11324PLATE, TIMING CHAIN COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
15193AGASKET, OIL PUMP
15370BSOLENOID ASSY, CAM TIMING OIL CONTROL, RH
15370CSOLENOID ASSY, CAM TIMING OIL CONTROL, LH
15370DRING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370ERING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
15370GBOLT(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370HBOLT(FOR CAM TIMING OIL CONTROL SOLENOID LH)
1601
9155180612
main91551-80612
9155180616
main91551-80616
9155180622
main91551-80622
9155180845
main91551-80845
91551F0828
main91551-F0828
91551F0855
main91551-F0855
9155281040
main91552-81040
9155281060
main91552-81060
22 parts on this diagram · 2 diagrams in section
