8505HEADLAMP CLEANER

→ Go to FIG 85-05

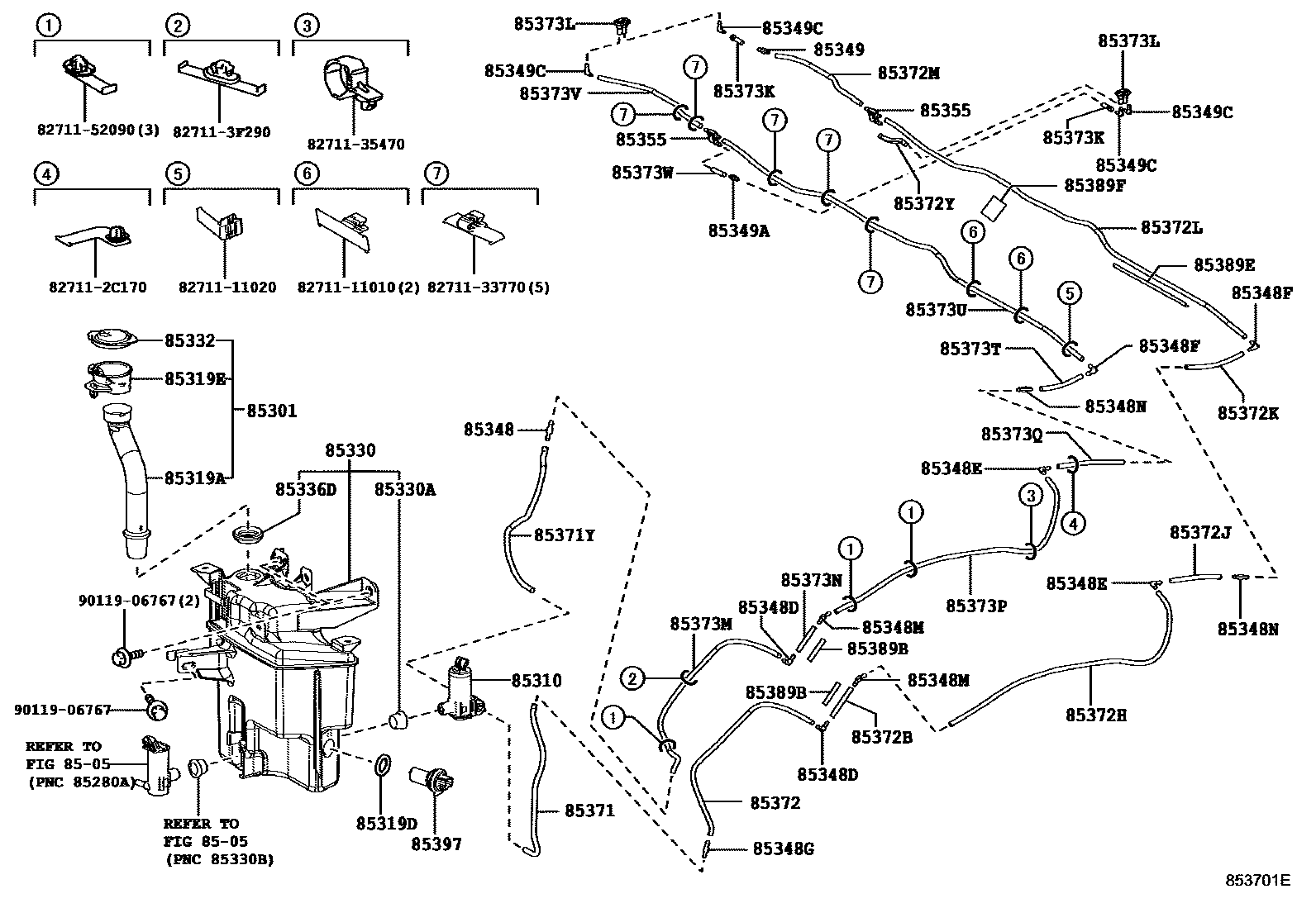

85301INLET SUB-ASSY, WASHER

main85301-11010i201701-202007

main85301-11011i202008

main85301-11020i201703-202007

main85301-11021i202008

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-11030i201701-201707

main85330-11040i201708

85319AHOSE, INLET

main85319-11010i201701

main85319-11020i201703

85319DPACKING, FRONT WASHER

main85319-33230i201701

85319EINLET WASHER

main85318-11010i201701

main85318-11020i201703

85330JAR ASSY, WINDSHIELD WASHER

main85355-11011i201701

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201701

85332CAP, WINDSHIELD WASHER JAR

main85316-11010i201701-202008

main85316-11011i202008

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i201701

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201701

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200×2i201701

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200×2i201701

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200×2i201701

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201701

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-14560×2i201701

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-10260×2i201701

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i201701

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260i201701

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85355-20200×2i201701

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020×2i201701

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i201701

85371YHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT), NO.2

main90446-07001i201701

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299i201701

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i201701

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201701

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201701

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080i201701

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90099-33382i201701

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080i201701

85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8

main90099-33080i201701

85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9

main90099-33080i201701

85373LGROMMET, WASHER

main85373-11020i201701

85373MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10

main90099-33080i201701

85373NHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11

main90099-33080i201701

85373PHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12

main90099-33080i201701

85373QHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13

main90099-33080i201701

85373THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14

main90099-33080i201701

85373UHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15

main90099-33080i201701

85373VHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16

main90099-33080i201701

85373WHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.17

main90099-33080i201701

85389BPROTECTOR, WINDSHIELD WASHER

main85389-11050×2i201701-201808

85389EPROTECTOR, WINDSHIELD WASHER, NO.2

main85389-50100i201701

85389FPROTECTOR, WINDSHIELD WASHER, NO.3

main85389-11030i201701

85397SWITCH ASSY,LEVEL WARNING

main85397-52100i201701

8271111010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-11010

8271111020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-11020

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

8271133770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33770

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906767

main90119-06767
