REAR FOG LAMP

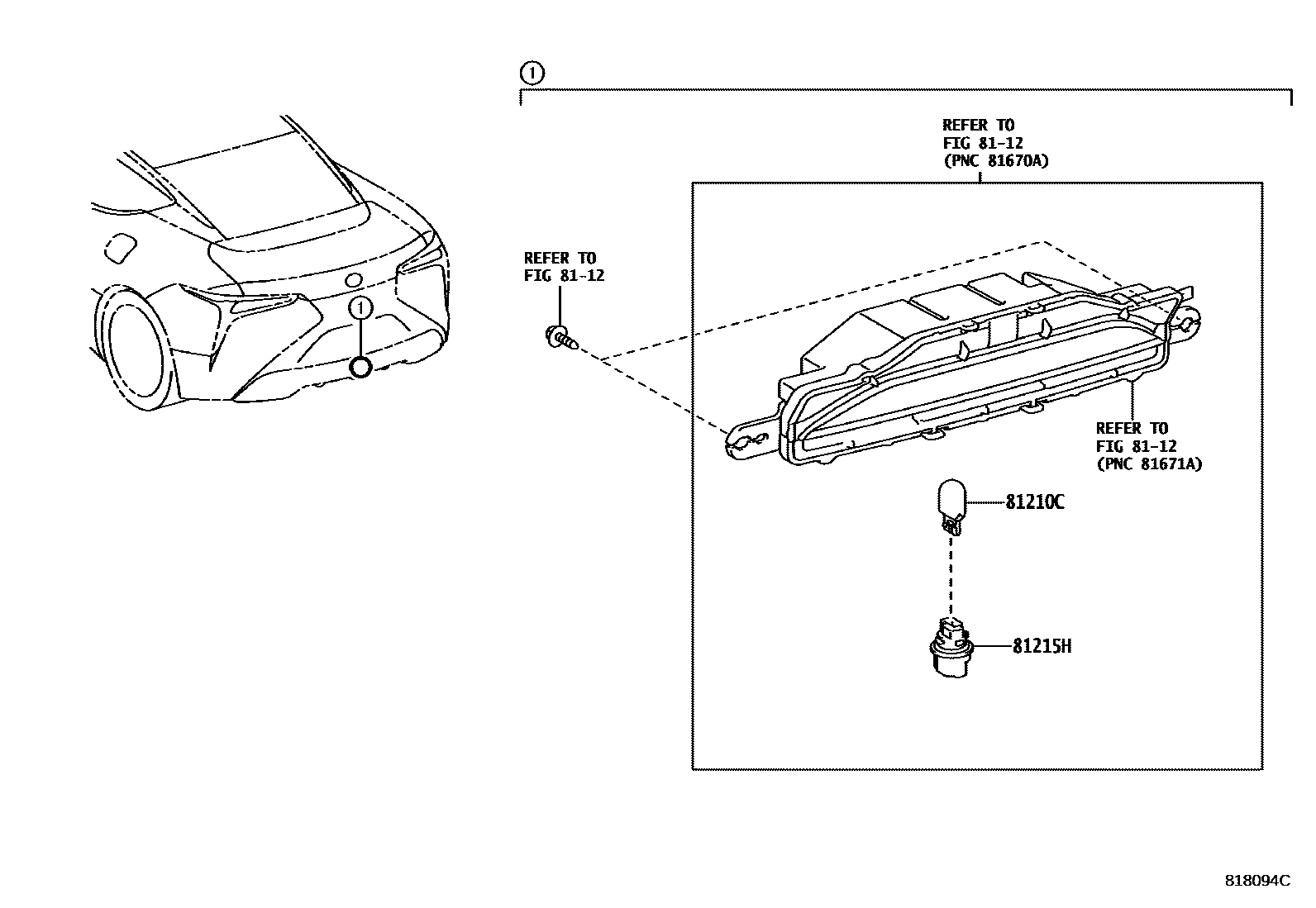

Parts diagram

8112BACK UP LAMP

→ Go to FIG 81-12

81210CBULB, REAR FOG LAMP

main90981-13043i201701

81215HSOCKET, REAR FOG LAMP

main90075-99080i201701

3 parts on this diagram · 1 diagram in section
