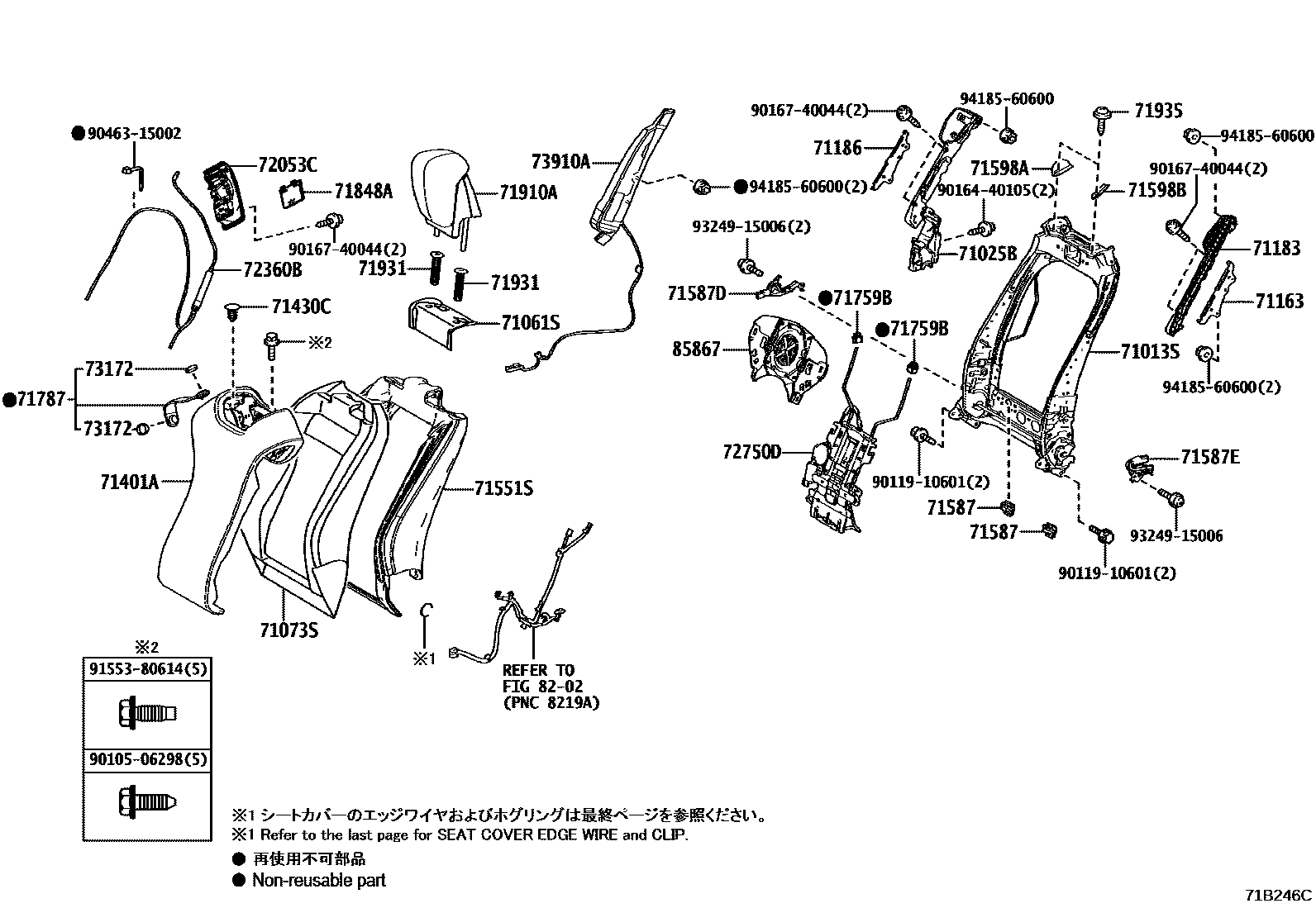

FRONT SEAT & SEAT TRACK

0001 1������:������� 0002 1������:�������� 0003 1������ ��������� ��� 0004 1�������:������� 0005 1�������:�������� 0006 1������� ��������� ��� 0007 1�������������� & �������

71013SFRAME SUB-ASSY, FRONT SEATBACK, RH

main71013-11020supersedes 71013-11011iGWZ100,URZ100201701-201910

main71013-11021iGWZ100,URZ100201911-202111

71025BSUPPORT SUB-ASSY, FRONT SEATBACK, RH

main71025-11010iGWZ100,URZ100201701

main71025-11020iGWZ100,URZ100202111

71061SCOVER SUB-ASSY, FRONT SEATBACK, UPPER RH

main71061-11010-C0iGWZ100,URZ100201701

BLACK,TRIM2#,3#

main71061-11010-E1iGWZ100,URZ100201909-202004

OCHRE,TRIM40

main71061-11010-E2iGWZ100,URZ100201909-202004

KUROKOHAKU,TRIM41

main71061-11010-J0iGWZ100,URZ100201701-202004

BLUE,TRIM8#

main00000-00000iGWZ100,URZ100201701-202111

main71061-11010-E3iGWZ100,URZ100202004

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main00000-00000iGWZ100,URZ100201701-202111

main71073-11080-20supersedes 71073-11040-C9iGWZ100,URZ100201906-202004

main71073-11080-21iGWZ100,URZ100201909-202004

main71073-11080-22iGWZ100,URZ100202004

main71073-11080-23iGWZ100,URZ100202004

main71073-11080-24iGWZ100,URZ100202202

main71073-11080-A7iGWZ100,URZ100201701-201906

main71073-11080-A9iGWZ100,URZ100201809-201906

main71073-11080-C8supersedes 71073-11040-C7iGWZ100,URZ100201701-201906

main71073-11080-C9supersedes 71073-11040-C8iGWZ100,URZ100202202

main71073-11080-D8supersedes 71073-11040-D8iGWZ100,URZ100201701-201906

main71073-11080-E6supersedes 71073-11040-E6iGWZ100,URZ100201701-201906

main71073-11080-E7supersedes 71073-11040-E7iGWZ100,URZ100201909

main71073-11080-J0iGWZ100,URZ100201906-202004

71163BRACKET, FRONT SEATBACK SUPPORT, RH

main71164-11010iGWZ100,URZ100201701

71183SUPPORT, FRONT SEATBACK, RH

main71184-11010iGWZ100,URZ100201701

main71026-11030iGWZ100,URZ100201701-202111

71186BRACKET, FRONT SEAT SIDE SUPPORT, RH

main71186-11010iGWZ100,URZ100201701

71401ABACK SUB-ASSY, FRONT SEAT, RH

main71401-11090-E1iGWZ100,URZ100201701

LT.OCHRE,TRIM4#

main00000-00000iGWZ100,URZ100201701-202111

main71401-11110-A0iGWZ100,URZ100201701-202004

main71401-11110-C5supersedes 71401-11090-C4iGWZ100,URZ100202202

main71401-11110-C6iGWZ100,URZ100202004

main71401-11110-C8iGWZ100,URZ100202202

main71401-11110-D1supersedes 71401-11090-D1iGWZ100,URZ100201701-202004

main71401-11110-D3iGWZ100,URZ100202004

main71401-11110-E1iGWZ100,URZ100201701-202004

main71401-11180-A2iGWZ100,URZ100201809-201906

main71401-11240-E1iGWZ100,URZ100201909-202004

71430CCLIP

main00000-00000supersedes 67771-26230-C1iGWZ100,URZ100201701-202111

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main00000-00000supersedes 71551-11010iGWZ100,URZ100201701-202111

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010×4iGWZ100,URZ100201701

71587DPROTECTOR, FRONT SEATBACK EDGE, OUTER(FOR RH SEAT)

main71587-11010iGWZ100,URZ100201701

71587EPROTECTOR, FRONT SEATBACK EDGE, INNER(FOR RH SEAT)

main71587-11020iGWZ100,URZ100201701

71598APLATE, SEAT COVER, RH

main00000-00000supersedes 71598-11010iGWZ100,URZ100201701-202111

71598BPLATE, SEAT COVER, LH

main00000-00000supersedes 71598-11010iGWZ100,URZ100201701-202111

71759BHOOK, FRONT SEATBACK

main71759-50040×4iGWZ100,URZ100201911

main71759-52050×4iGWZ100,URZ100201701-201910

71787BAND, FRONT SEATBACK POCKET

main71788-11010-C5×2iGWZ100,URZ100201701

BLACK,TRIM2#

main71788-11010-E3×2iGWZ100,URZ100201701

LT.OCHRE,TRIM4#

main71788-11010-A1×2iGWZ100,URZ100201701-202004

main71788-11010-A2×2iGWZ100,URZ100201809-201906

main71788-11010-C6×2iGWZ100,URZ100202004

main71788-11010-D4×2iGWZ100,URZ100202004-202202

main71788-11010-E6×2iGWZ100,URZ100201909-202004

main71788-11020-C2×2iGWZ100,URZ100201701-202111

main71788-11020-C4×2iGWZ100,URZ100202004-202111

main71788-11020-C5×2iGWZ100,URZ100202101-202111

main71788-11020-D1×2supersedes 71788-11010-D2iGWZ100,URZ100201701-202004

main71788-11020-D3×2iGWZ100,URZ100202004-202111

main71788-11020-E1×2iGWZ100,URZ100201701-202004

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-11010-C1supersedes 71848-11010-C1iGWZ100,URZ100202004

BLACK,TRIM2#,3#,42

main71848-11010-D0iGWZ100,URZ100201701-202004

DK.ROSE,TRIM30

main71848-11010-E2iGWZ100,URZ100201701

LT.OCHRE,TRIM40

main71848-11010-E3iGWZ100,URZ100201909-202004

DK.SADDLE TAN,TRIM41

main71848-11010-A0iGWZ100,URZ100201809-201906

main71848-11010-D1iGWZ100,URZ100202004

main71848-11010-E1iGWZ100,URZ100202111

71910AHEADREST ASSY, FRONT SEAT

main71910-11020-E4×2iGWZ100,URZ100202004

OCHER,TRIM4#

main71910-11030-20×2iGWZ100,URZ100201809-201906

main71910-11030-23×2supersedes 71910-11020-20iGWZ100,URZ100202004

main71910-11030-24×2iGWZ100,URZ100202004

main71910-11030-25×2iGWZ100,URZ100202004

main71910-11030-C8×2supersedes 71910-11020-C7iGWZ100,URZ100201701-202004

main71910-11030-C9×2supersedes 71910-11020-C8iGWZ100,URZ100201701-202004

main71910-11030-E3×2supersedes 71910-11020-E3iGWZ100,URZ100201701-202004

main71910-11030-E4×2iGWZ100,URZ100202004

main71910-11030-J1×2iGWZ100,URZ100201701-202004

main71910-11040-C5×2iGWZ100,URZ100201701-202111

sub71910-11070

main71910-11040-C7×2iGWZ100,URZ100202111-202210

sub71910-11070

main71910-11040-C8×2iGWZ100,URZ100202101-202111

sub71910-11070

main71910-11040-D4×2supersedes 71910-11020-C8iGWZ100,URZ100201701-202004

sub71910-11070

main71910-11040-D5×2iGWZ100,URZ100202004-202111

sub71910-11070

main71910-11040-E3×2iGWZ100,URZ100202004-202111

sub71910-11070

main71910-11190-E0×2supersedes 71910-11020-E3iGWZ100,URZ100201909-202004

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5×2iGWZ100,URZ100201701

main71931-47030-C4×2iGWZ100,URZ100201701

71935CLIP

main00000-00000supersedes 90467-08186-C0iGWZ100,URZ100201701-202111

72053CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH

main72053-11010-C1supersedes 72053-11010-C1iGWZ100,URZ100202004-202305

BLACK,TRIM2#,3#,42

main72053-11010-A0iGWZ100,URZ100201701-202004

main72053-11010-D1iGWZ100,URZ100202004-202305

main72053-11010-E1iGWZ100,URZ100201701-202111

72360BCABLE ASSY, RECLINING ADJUSTER EQUALIZING RH

main72360-11010iGWZ100,URZ100201701

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-11010iGWZ100,URZ100201701

73172CAP, FRONT SHOULDER BELT HANGER

main73172-50020×4iGWZ100,URZ100201701

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-11010iGWZ100,URZ100201701

8202

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-11011iGWZ100,URZ100201701

9010506298

main90105-06298

9011910601

main90119-10601

9016440105

main90164-40105

9016740044

main90167-40044

9046315002

main90463-15002

9155380614

main91553-80614

9324915006

main93249-15006

9418560600

main94185-60600

36 parts on this diagram · 7 diagrams in section
