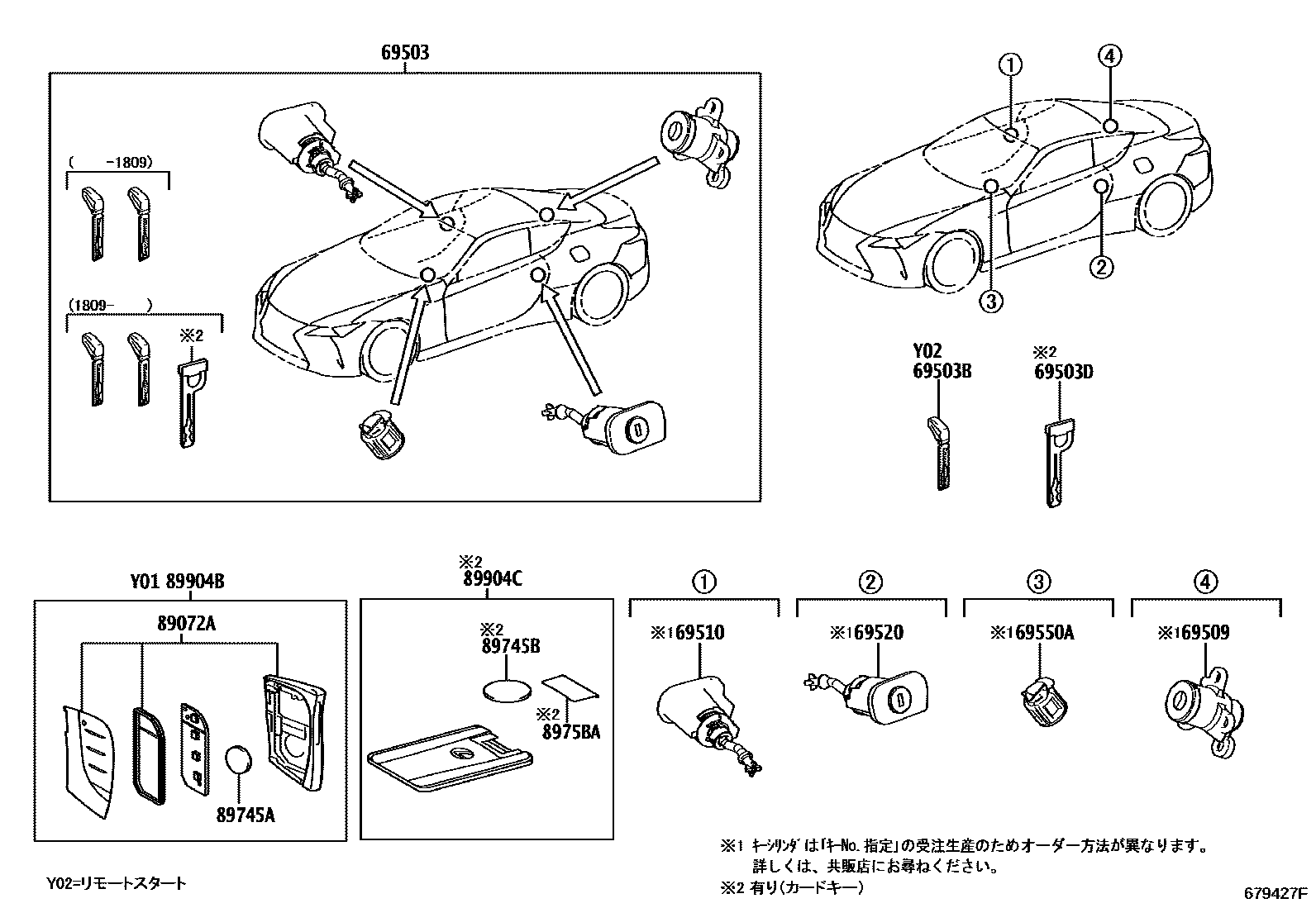

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-11050iGWZ100,URZ100201701-201809

main69005-11070iGWZ100,URZ100201809

69503BKEY, CUT

main69515-11010iGWZ100,URZ100201701

69503DKEY, CUT(CARD KEY)

main69515-30330iGWZ100,URZ100201809

69509CYLINDER SUB-ASSY, DECK COMPARTMENT LOCK

main69509-11010iGWZ100,URZ100201701

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-11040iGWZ100,URZ100201701

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-11040iGWZ100,URZ100201701

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iGWZ100,URZ100201701

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-11270×2iURZ100201703

main89072-11280×2iGWZ100201701-202210

89745ABATTERY, TRANSMITTER

main89745-45010iGWZ100,URZ100201701-202004

main89745-50020iGWZ100,URZ100202004

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iGWZ100,URZ100201809

8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)

main8975B-50030iGWZ100,URZ100201809

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-11030×2iURZ100201703-202004

main89904-11240×2iGWZ100201701-202004

main89904-11710×2iGWZ100202210

main89904-11720×2iGWZ100202004-202210

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-11450iURZ100201809-202004

main89904-11460iGWZ100201809-202004

main89904-48X50iURZ100202004

main89904-48X60iGWZ100202004-202210

13 parts on this diagram · 1 diagram in section
