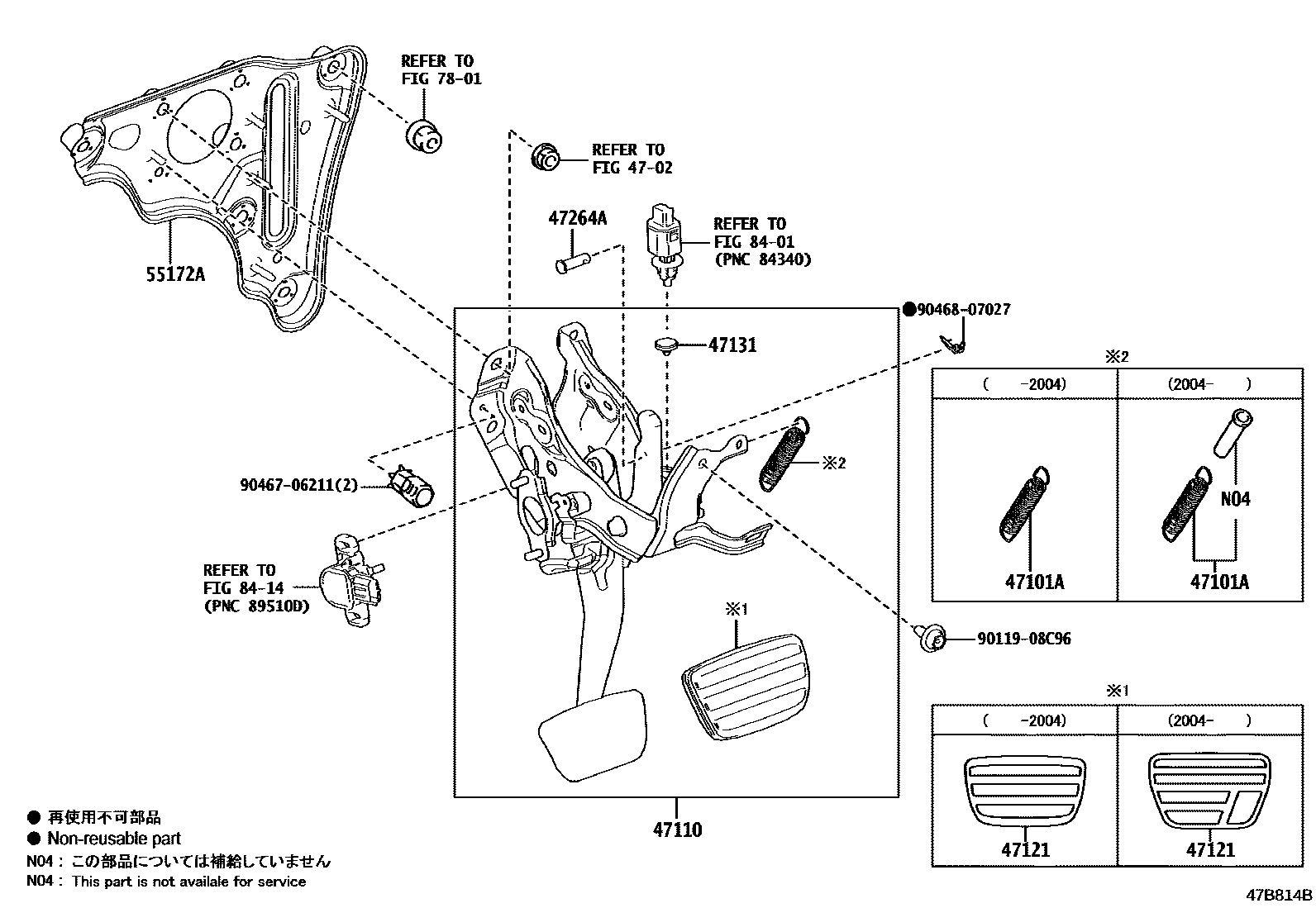

BRAKE PEDAL & BRACKET

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13014iGWZ100,URZ100202004

main90507-14054iGWZ100,URZ100201701-202004

47110SUPPORT ASSY, BRAKE PEDAL

main47110-11020iGWZ100,URZ100201701-202003

main47110-11021iGWZ100,URZ100202004

47121PAD, BRAKE PEDAL

main47121-11010iGWZ100,URZ100201701-202004

main47121-11020iGWZ100,URZ100202004

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGWZ100,URZ100201701

47264APIN(FOR PUSH ROD)

main90240-08078iGWZ100,URZ100201806

main90240-08082iGWZ100,URZ100201701-201805

55172ABASE, BRAKE PEDAL SUPPORT

main55172-11020iGWZ100,URZ100201701

7801ACCELERATOR LINK

→ Go to FIG 78-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C96

main90119-08C96

9046706211

main90467-06211

9046807027

main90468-07027

13 parts on this diagram · 1 diagram in section
