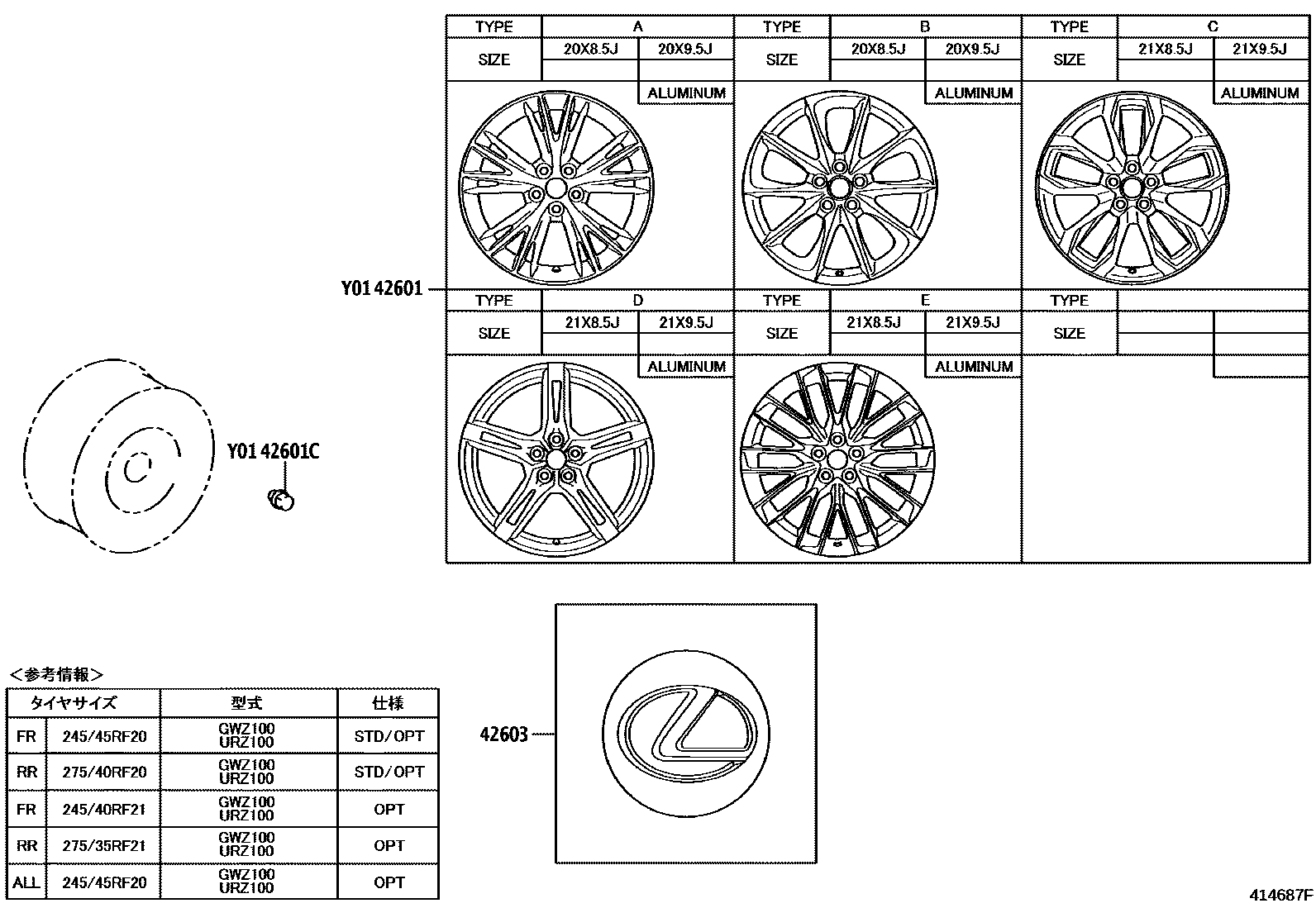

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-11090×2iGWZ100,URZ100201701-201801

main42611-11110×2iGWZ100,URZ100201701-201801

main42611-11120×2iGWZ100,URZ100201701-202004

main42611-11130×2iGWZ100,URZ100201701-202004

main42611-11140×2iGWZ100,URZ100201801

main42611-11150×2iGWZ100,URZ100201801-202004

main42611-11170×2iGWZ100,URZ100202004

main42611-WY340×2iGWZ100,URZ100202101-202111

main42611-WY350×2iGWZ100,URZ100202111-202210

main42611-WY370×2supersedes 42611-11070iGWZ100,URZ100202302

main42611-WY380×2supersedes 42611-11070iGWZ100,URZ100202302

main4261A-11010×2iGWZ100,URZ100202004-202111

main4261A-11020×2iGWZ100,URZ100202004-202111

42601CNUT, HUB (FOR AXLE)

main90942-01118×20iGWZ100,URZ100201701

main90942-01111×20iGWZ100,URZ100201701-202004

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-53110×4iGWZ100,URZ100201701

3 parts on this diagram · 3 diagrams in section
