PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-11020iURZ100201703

main37100-11030iGWZ100201701

37110ABOLT (FOR PROPELLER SHAFT)

main90105-12265×3iGWZ100,URZ100201701

37110DNUT (FOR PROPELLER SHAFT)

main90179-12128×3iGWZ100,URZ100201701

37110EWASHER (FOR PROPELLER SHAFT)

main90560-12059×3iGWZ100,URZ100201701

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10017×2iGWZ100,URZ100201701

main90201-10034×2iGWZ100,URZ100201701

37238DAMPER, CENTER SUPPORT BEARING

main37209-30020×2iGWZ100,URZ100201701

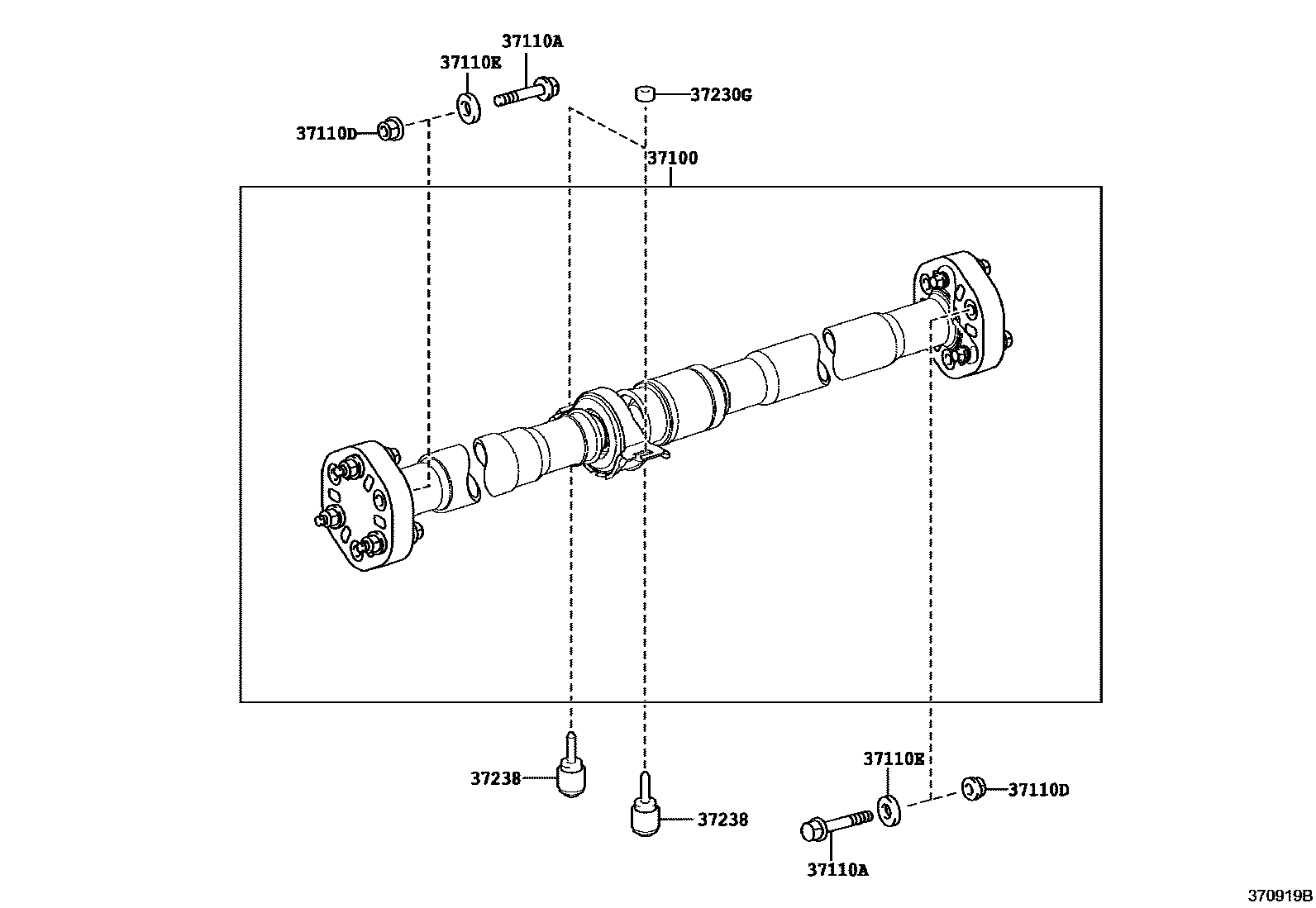

6 parts on this diagram · 1 diagram in section
