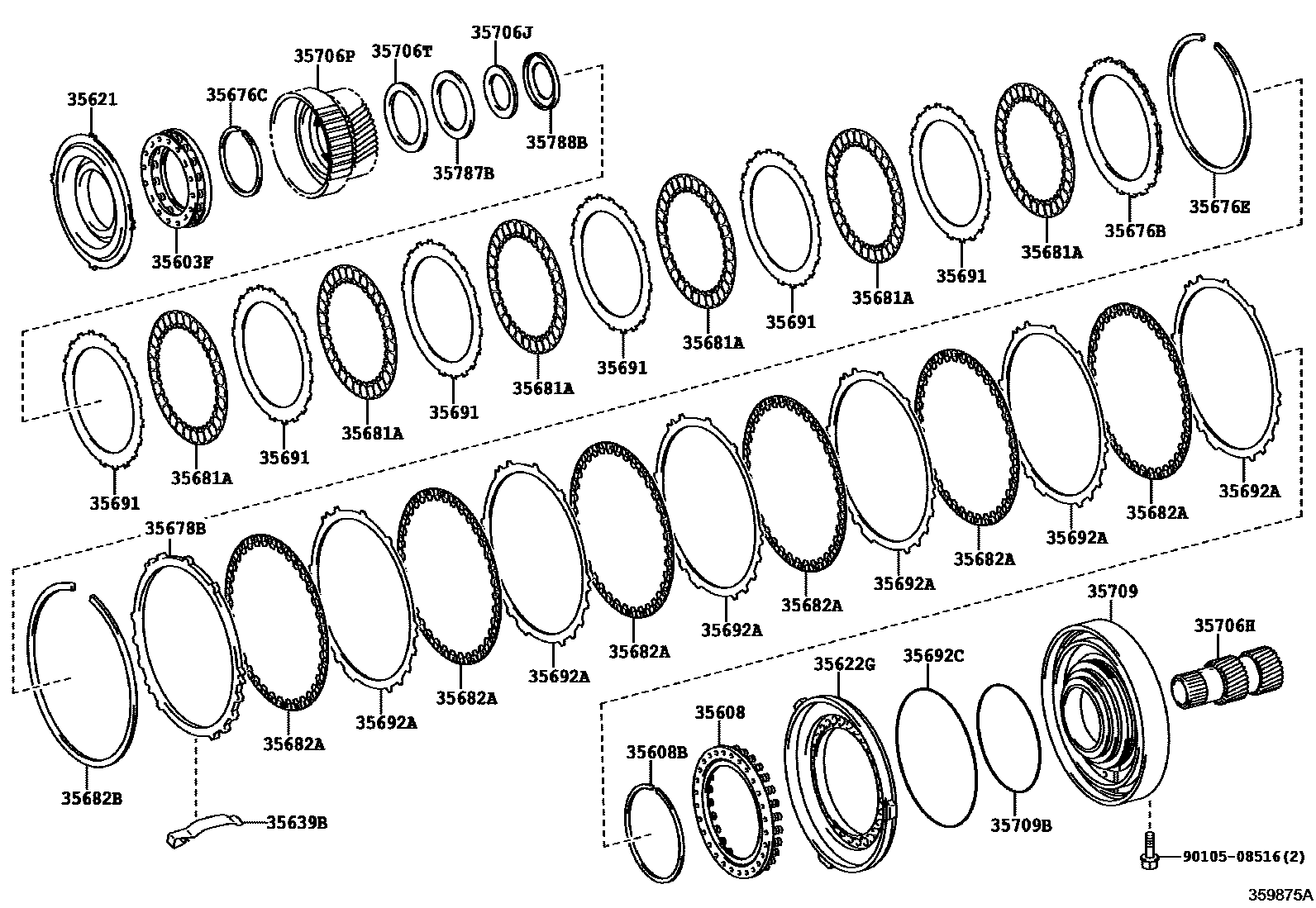

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35603FSPRING SUB-ASSY, 2ND BRAKE RETURN W/RETAINER
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608BRING, HOLE SNAP (FOR BRAKE PISTON RETURN SPRING)
35621PISTON, BRAKE, NO.1
35622GPISTON, BRAKE, NO.2
35639BSPRING, BRAKE PLATE STOPPER
35676BFLANGE, BRAKE, NO.1
35676CRING, HOLE SNAP (FOR BRAKE FLANGE NO.1)
35676ERING, HOLE SNAP (FOR 2ND BRAKE)
35678BFLANGE, BRAKE, NO.2
35681ADISC, BRAKE, NO.1
35682ADISC, BRAKE, NO.2
35682BRING, HOLE SNAP(FOR DISC BRAKE NO.2)
35691PLATE, BRAKE, NO.1
35692APLATE, BRAKE, NO.2
35692CRING, O (FOR BRAKE PLATE, NO.2)
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35706PGEAR SUB-ASSY, FRONT PLANETARY SUN
35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)
35709SUPPORT SUB-ASSY, CENTER
35709BRING, O (FOR CENTER SUPPORT)
35787BRACE, THRUST BEARING, NO.2
35788BRACE, THRUST BEARING, NO.3
9010508516
main90105-08516
25 parts on this diagram · 1 diagram in section
