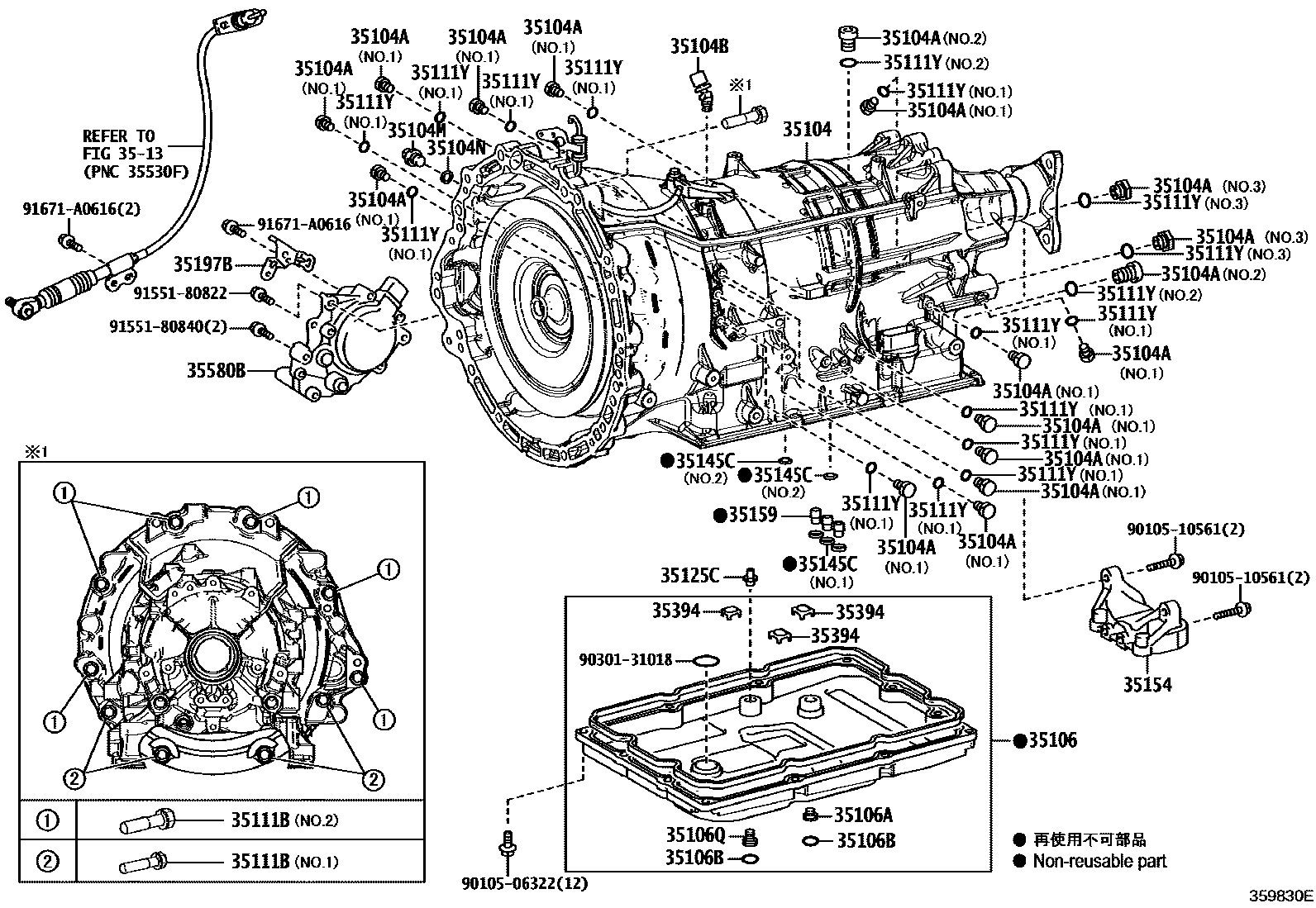

TRANSMISSION CASE & OIL PAN (ATM)

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-11010iURZ100201703

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×13iURZ100201703

main90341-14011×2iURZ100201703

main90341-18059×2iURZ100201703

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03238iURZ100201703

35104MPLUG, REFILL(ATM)

main90341-18060iURZ100201703-202305

35104NRING, O (FOR REFILL PLUG)

main90430-18008iURZ100201703-202305

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-11020iURZ100201703

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12039iURZ100201703

35106BGASKET, DRAIN PLUG (ATM)

main90301-17022×2iURZ100201703

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90341-12039iURZ100201703

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-10260×4iURZ100201703

main91619-61250×6iURZ100201703

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×13iURZ100201703

main90301-11030×2iURZ100201703

main90301-15004×2iURZ100201703

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-11020iURZ100201703

3513

35145CGASKET, TRANSAXLE CASE

main35145-11020×3iURZ100201703

main35145-60020×2iURZ100201703

35154ADAPTER, TRANSMISSION CASE

main35154-11010iURZ100201703

35159GASKET, BRAKE DRUM

main35159-11010×3iURZ100201703

35197BBRACKET, HEAT INSULATOR, NO.2

main35197-11010iURZ100201703

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-11010×3iURZ100201703

35580BACTUATOR ASSY, SHIFT CONTROL

main35580-10010iURZ100202004

main35580-11010iURZ100201703-202004

9010506322

main90105-06322

9010510561

main90105-10561

9030131018

main90301-31018

9155180822

main91551-80822

9155180840

main91551-80840

91671A0616

main91671-A0616

25 parts on this diagram · 1 diagram in section
