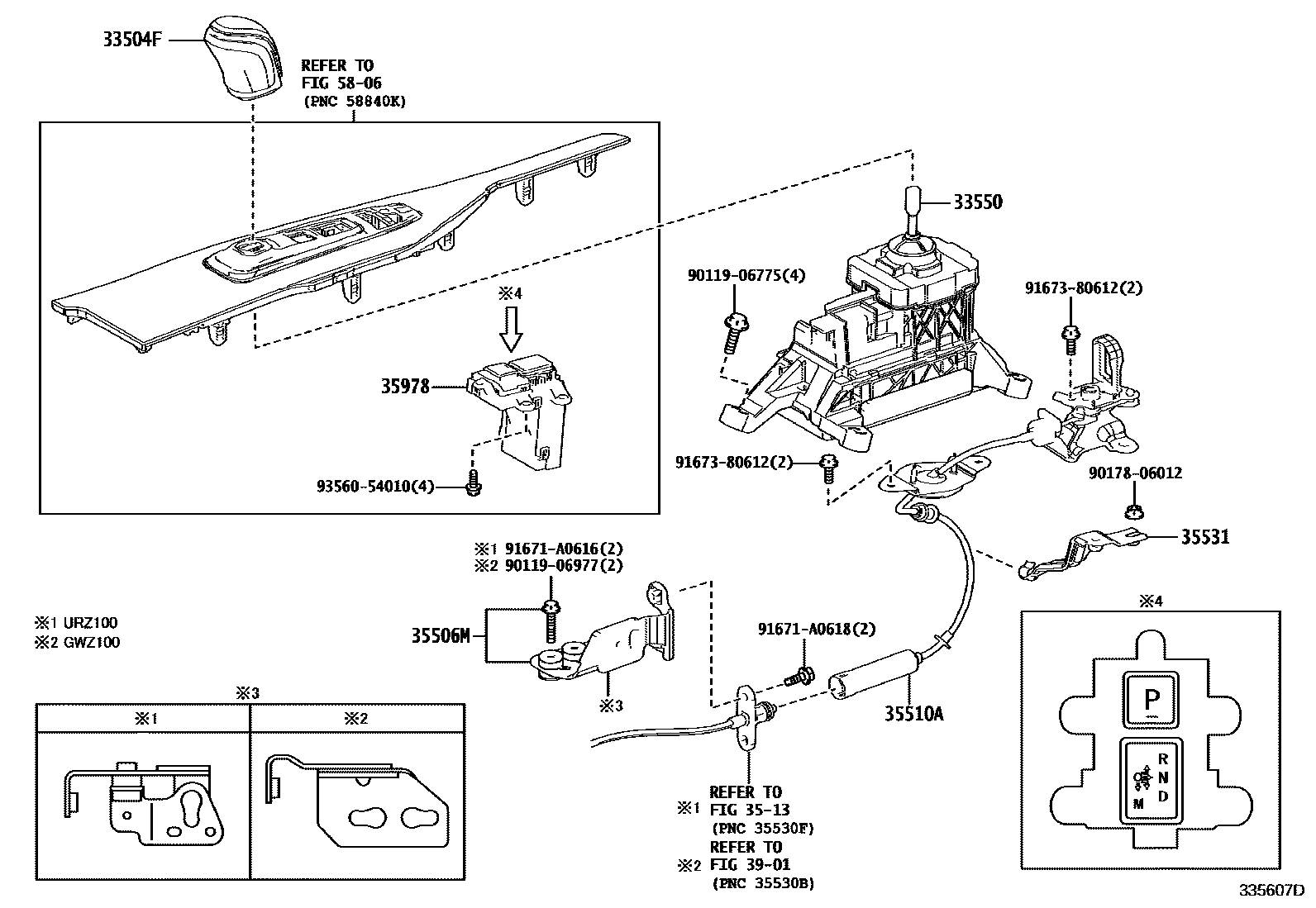

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-11010-C1iGWZ100,URZ100201701

BLACK,TRIM2#,3#

main33504-11010-E0iGWZ100,URZ100202004

OCHRE,TRIM40

main33504-11010-E3iGWZ100,URZ100202004

ORANGE,TRIM42

main33504-11010-J0iGWZ100,URZ100201701-202004

BLUE,TRIM8#

main33504-11030-E0supersedes 33504-11010-E0iGWZ100,URZ100201909-202004

main33504-11050-C0iGWZ100,URZ100202101-202111

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-11020iGWZ100,URZ100201701

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35506MBRACKET SUB-ASSY, PARKING RELEASE CABLE, NO.2

main35506-11010iGWZ100201701-201702

main35506-50040iGWZ100,URZ100201703

35510ALEVER ASSY, PARKING LOCK RELEASE

main35510-11010iGWZ100201701-201702

main35510-11050iGWZ100,URZ100201703-201808

main35510-11070iGWZ100,URZ100201809

35531BRACKET, PARKING LOCK RELEASE CABLE CLAMP, NO.1

main35531-11010iGWZ100201701-201702

main35531-11030iGWZ100,URZ100201703

35978INDICATOR, SHIFT POSITION

main35978-11020iGWZ100,URZ100201701

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

9011906775

main90119-06775

9011906977

main90119-06977

9017806012

main90178-06012

91671A0616

main91671-A0616

91671A0618

main91671-A0618

9167380612

main91673-80612

9356054010

main93560-54010

16 parts on this diagram · 1 diagram in section
