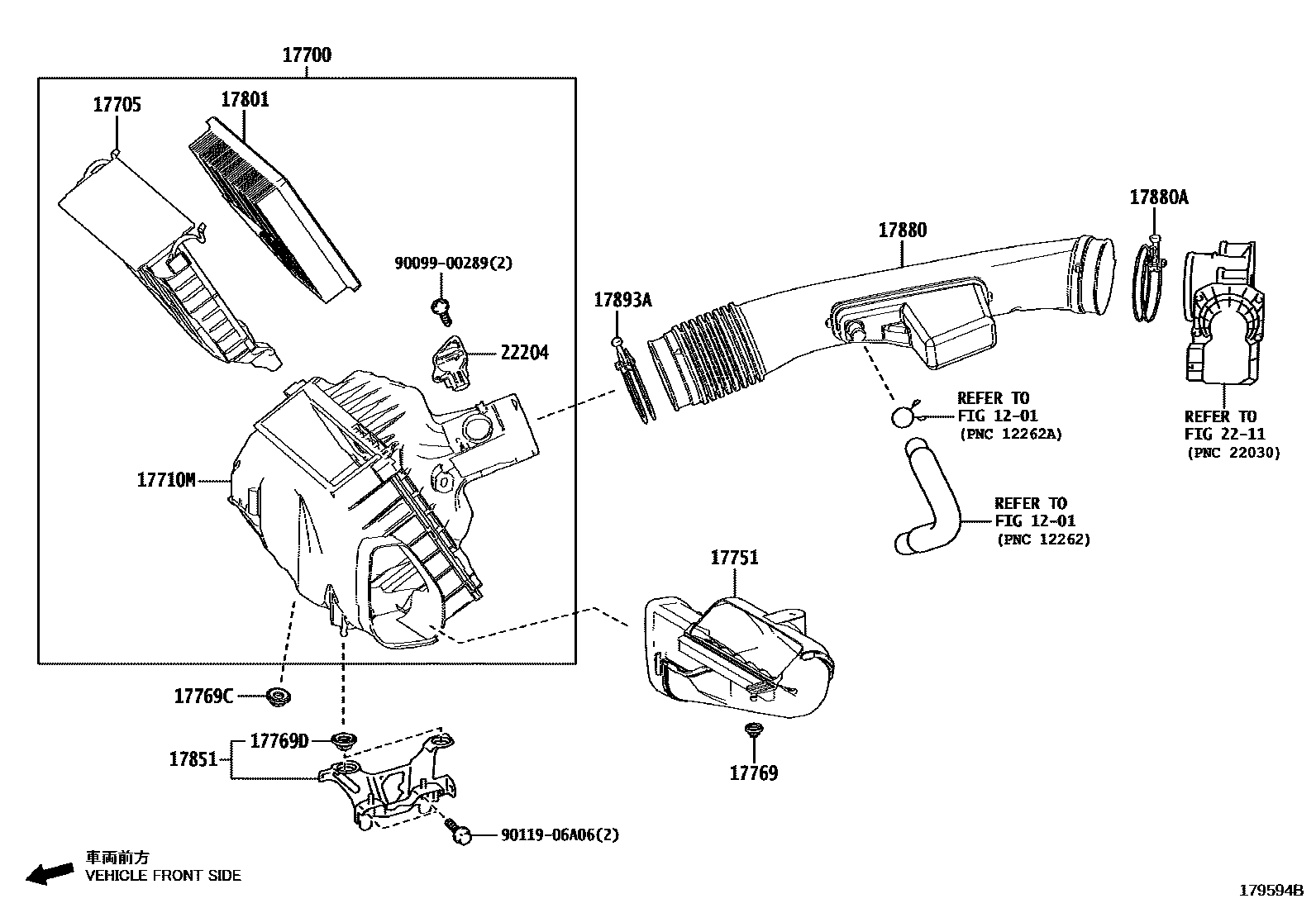

AIR CLEANER

0001 1 0002 1��������� 0003 1��������� & ������������

1201

17700CLEANER ASSY, AIR

main17700-31B70i8GRFXS..GWZ100201701

17705CAP SUB-ASSY, AIR CLEANER

main17705-25140i8GRFXS..GWZ100201810

main17705-31510i8GRFXS..GWZ100201701-201809

17710MCLEANER ASSY, AIR (WITHOUT ELEMENT)

main17710-31600i8GRFXS..GWZ100201701

17751INLET, AIR CLEANER, NO.1

main17751-31420i8GRFXS..GWZ100201701

main17751-38130i2URGSE..URZ100201703

17769SUPPORT, AIR CLEANER

main17769-25040i8GRFXS..GWZ100201901

main17769-38030i8GRFXS..GWZ100201701-201812

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25010i8GRFXS..GWZ100201804

main17769-38020×2i2URGSE..URZ100201703-201803

main17769-38040i8GRFXS..GWZ100201701-201803

17769DSUPPORT, AIR CLEANER, NO.2

main17769-25010×2i8GRFXS..GWZ100201804

main17769-38020×2i8GRFXS..GWZ100201701-201803

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31150i8GRFXS..GWZ100201701

main17801-38060×2i2URGSE..URZ100201703

17851BRACKET, AIR CLEANER SUPPORT

main17850-38010i8GRFXS..GWZ100201701

17880HOSE ASSY, AIR CLEANER

main17880-31430i8GRFXS..GWZ100201701

main17880-38090i2URGSE..URZ100201703

17880ACLAMP, HOSE

main17891-38070i2URGSE..URZ100201703

main90460-90005i8GRFXS..GWZ100201701

17893ACLAMP, HOSE

main90460-85010i8GRFXS..GWZ100201701

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040i8GRFXS..GWZ100201701

9009900289

main90099-00289

9011906A06

main90119-06A06

17 parts on this diagram · 3 diagrams in section
