WATER PUMP

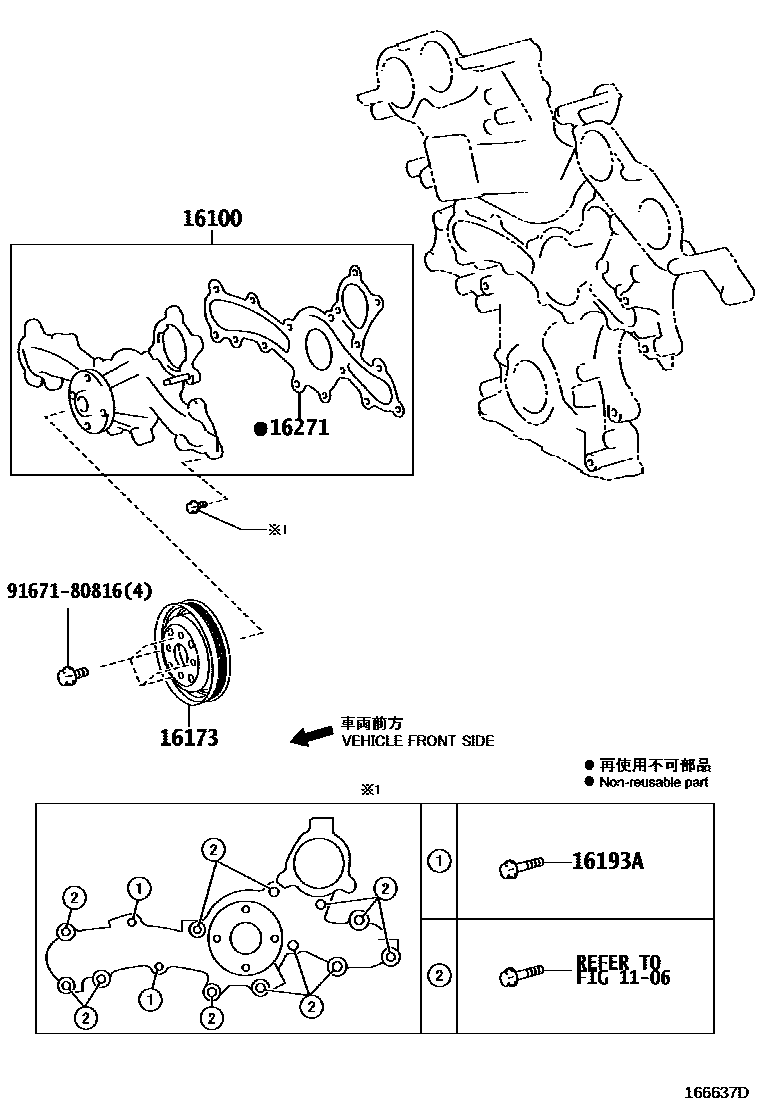

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main16100-39506i201703

main16100-39615i201701-202004

main16100-39616i202004

16173PULLEY, WATER PUMP

main16173-31040i201701-202003

main16173-31041i202004-202012

main16173-31042i202101

main16173-38040i201703-202005

main16173-38041i202006

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080×2i201701

16271GASKET, WATER PUMP

main16271-31050i201701

main16271-38010i201703

9167180816

main91671-80816

6 parts on this diagram · 2 diagrams in section
