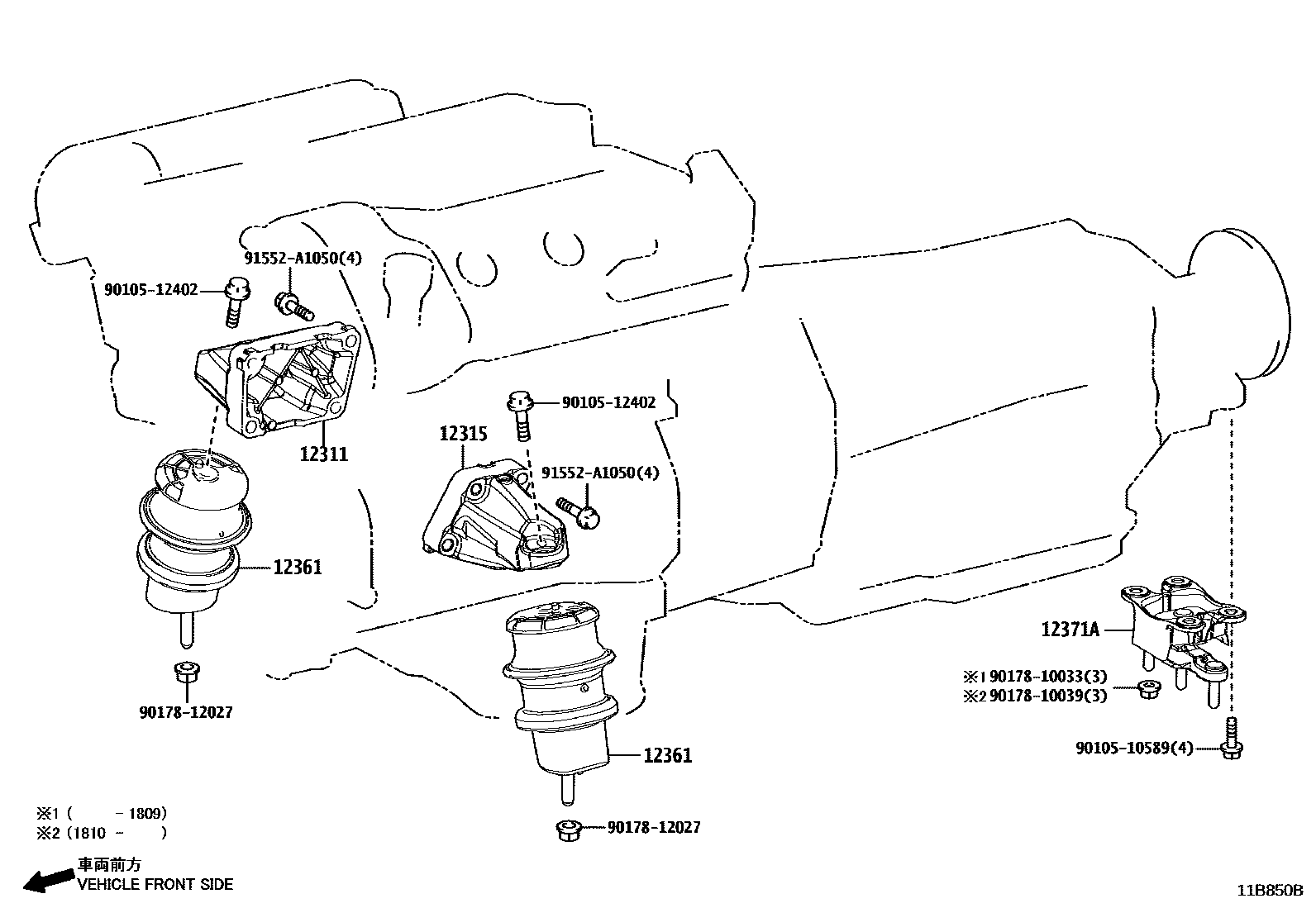

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-31230i8GRFXS..GWZ100201701

main12311-38050i2URGSE..URZ100201703

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-31220i8GRFXS..GWZ100201701

main12315-38040i2URGSE..URZ100201703

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-31500×2i8GRFXS..GWZ100201701

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-31410i8GRFXS..GWZ100201701-201808

main12371-31420i8GRFXS..GWZ100201809

main12371-38140i2URGSE..URZ100201703-201808

main12371-38170i2URGSE..URZ100201809

9010510589

main90105-10589

9010512402

main90105-12402

9017810033

main90178-10033

9017810039

main90178-10039

9017812027

main90178-12027

91552A1050

main91552-A1050

10 parts on this diagram · 2 diagrams in section
