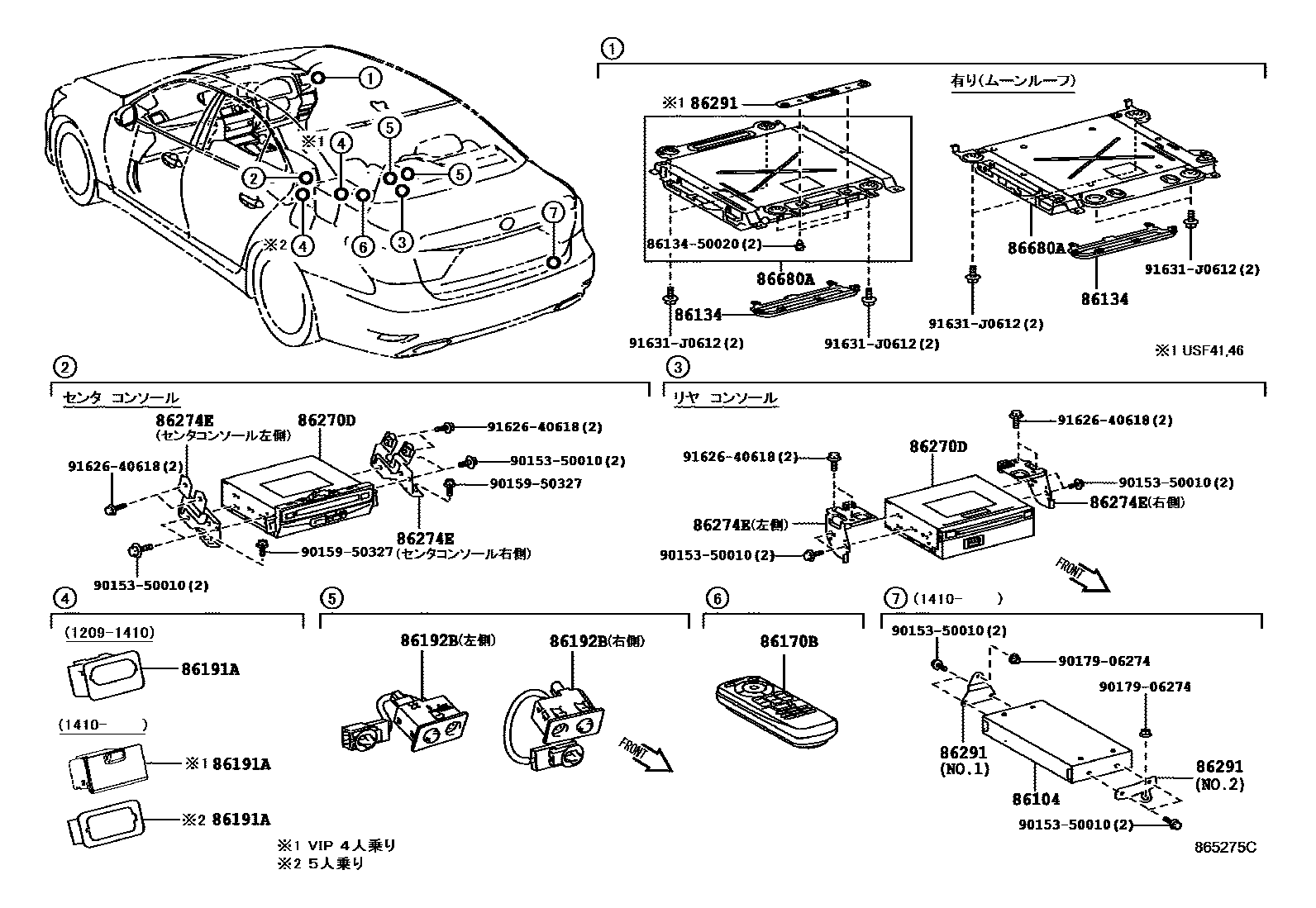

CAMERA & REAR MONITOR DISPLAY

0001 1��(������������:���) 0002 1��(������������:�����) 0003 1

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main86104-50040

86134PARTS, MULTI-DISPLAY

main86134-50010

86170BSWITCH & VOLUME ASSY, TELEVISION

86191ATERMINAL, VIDEO(VIDEO ADAPTER)

86192BTERMINAL, HEADPHONE

86270DDISC PLAYER ASSY

86274EBRACKET, DISC PLAYER

86291BRACKET, TELEVISION

main86291-50030

main86291-50040

main86291-50050

86680ADISPLAY ASSY, TELEVISION

8613450020PARTS, MULTI-DISPLAY

main86134-50020

9015350010

main90153-50010

9015950327

main90159-50327

9017906274

main90179-06274

9162640618

main91626-40618

91631J0612

main91631-J0612

15 parts on this diagram · 3 diagrams in section
