WIRING & CLAMP

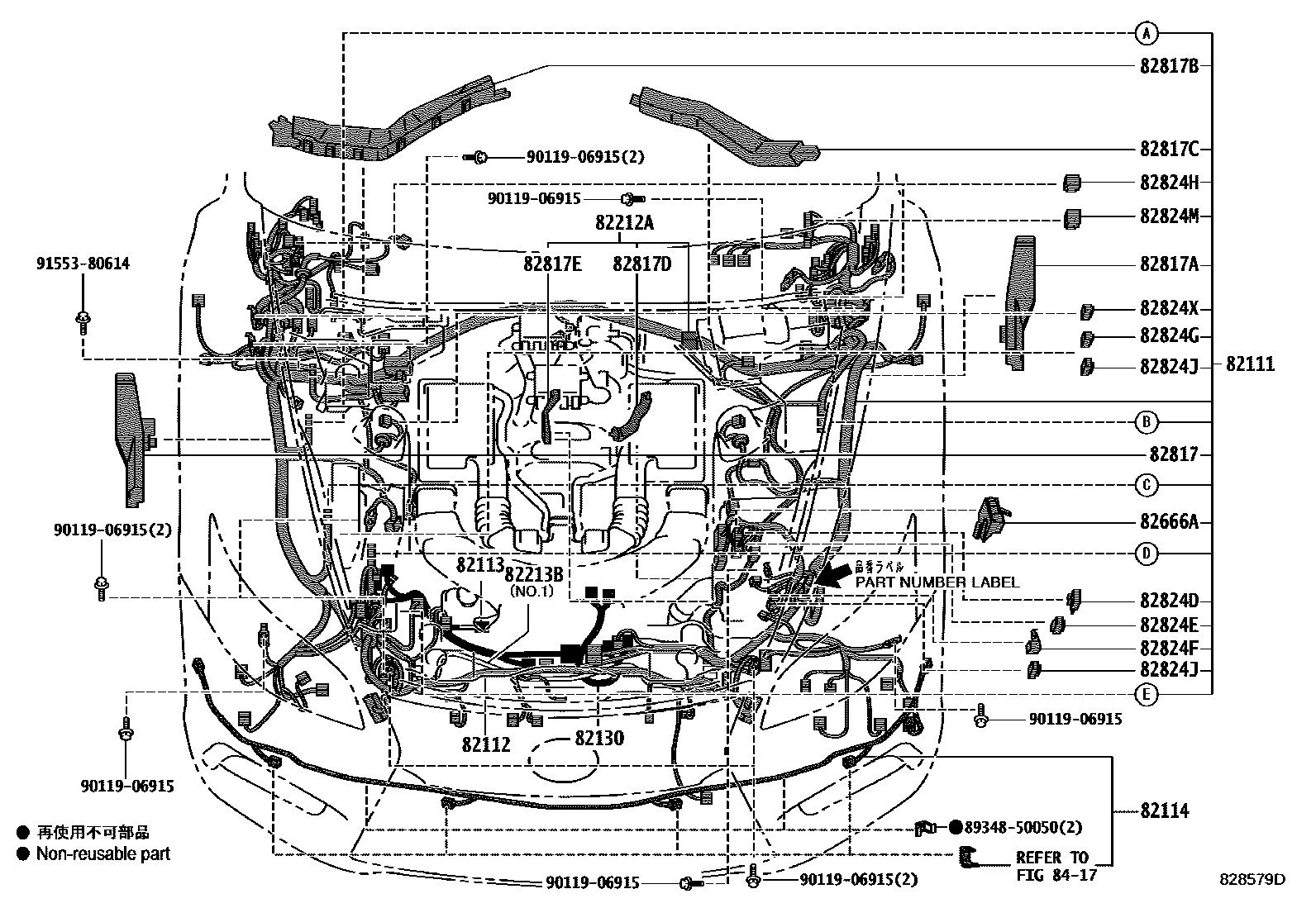

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-50S30i201209-201301

main82111-50S31i201301-201309

main82111-50S32i201309-201410

main82111-50S33i201410

main82111-50S40i201210-201301

main82111-50S41i201301-201309

main82111-50S42i201309-201410

main82111-50S43i201412-201509

82112WIRE, ENGINE ROOM, NO.2

main82112-50530supersedes 82112-50520i201209

82113WIRE, ENGINE ROOM, NO.3

main82113-50060i201209

82114WIRE, ENGINE ROOM, NO.4

main82114-50050i201209-201708

main82114-50060i201210-201708

82130HARNESS ASSY, CHASSIS WIRE

main82130-50040i201209

82212AHARNESS, AIR CONDITIONER

main82212-50081i201209-201708

82213BWIRE, HEATER

main82213-50020×2i201209

main82213-50041i201209

82666AHOLDER, CONNECTOR NO.2

main82666-50570i201209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-50B30i201209

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-50D40i201209

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-50E70i201209

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-50C20i201209

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-50F50i201209

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-50J90i201209

82824CONNECTOR, WIRING HARNESS

main82824-50270i201209

82824DCONNECTOR, WIRING HARNESS

main82824-30130i201209

82824ECONNECTOR, WIRING HARNESS

main82824-30170i201209

82824FCONNECTOR, WIRING HARNESS

main82824-48020i201209

82824GCONNECTOR, WIRING HARNESS

main82824-50110i201209

82824HCONNECTOR, WIRING HARNESS

main82824-50350×2i201209

82824JCONNECTOR, WIRING HARNESS

main82824-52280×2i201209

82824MCONNECTOR, WIRING HARNESS

main82824-52290i201209

82824XCONNECTOR, WIRING HARNESS

main82824-50300i201209

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9011906915

main90119-06915

9155380614

main91553-80614

27 parts on this diagram · 16 diagrams in section
