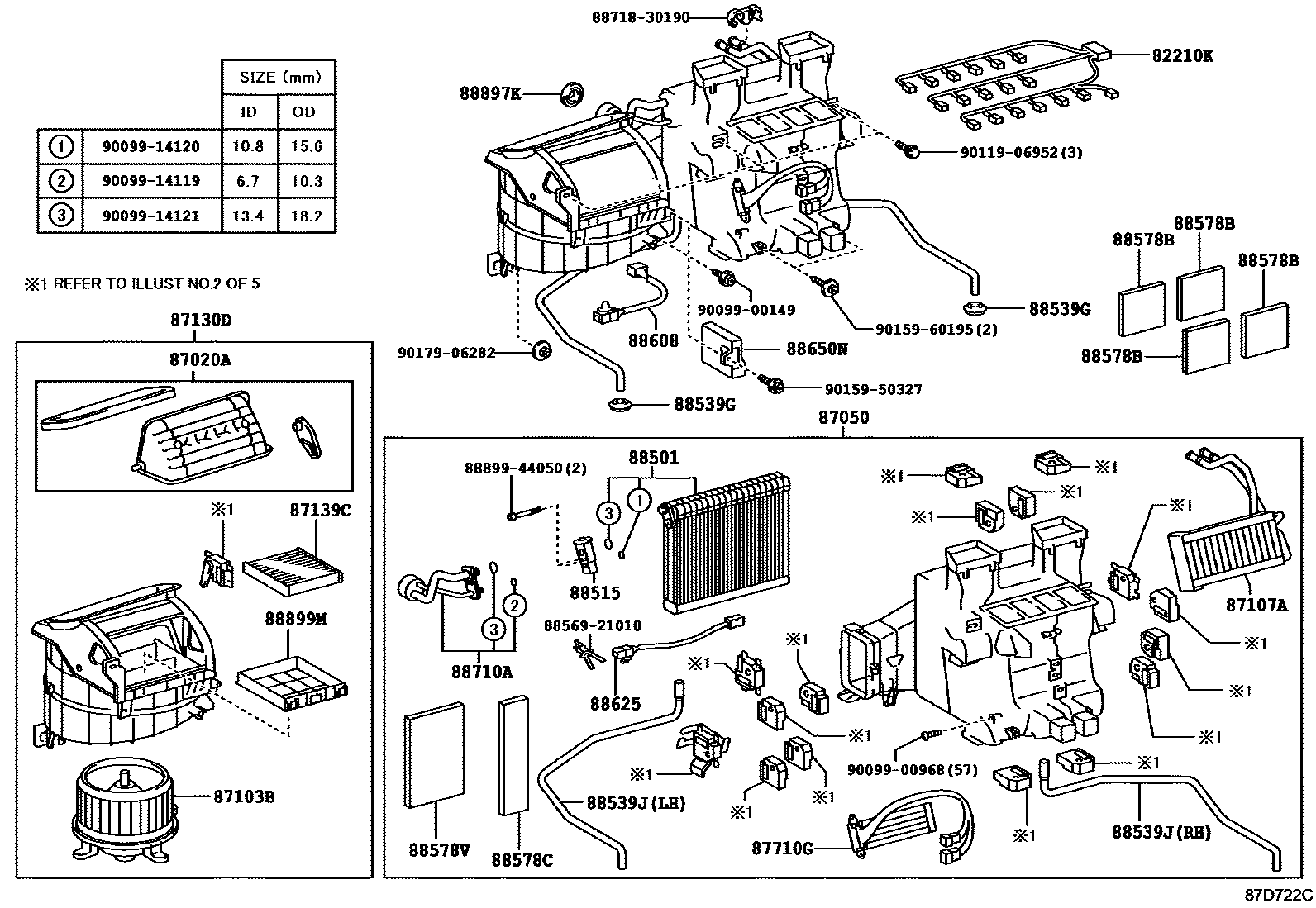

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1���� 0003 1�� 0004 1�� 0005 1�� : ������ ��� 0006 1�� : ������ ��� 0007 1�� ��������� 0008 1�� ���������

82210KHARNESS ASSY, AIR CONDITIONER

main82212-50040iUVF4#200911-201205

main82212-50041iUVF4#201206-201209

87020ADAMPER ASSY, HEATER AIR

main87020-50010iUVF4#200911

87050RADIATOR ASSY, AIR CONDITIONER

main87050-50220iUVF4#200704-200802

main87050-50221iUVF4#200803-200809

main87050-50222iUVF4#200911

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50110iUVF4#200704-200809

main87103-50111iUVF4#201011

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-50060iUVF4#200704-200809

87130DBLOWER ASSY

main87130-50111iUVF4#200704-200807

main87130-50112iUVF4#200810-200911

87139CFILTER, CLEAN AIR

main87139-50060iUVF4#200704-200809

main87139-50100iUVF4#201203-201209

87710GQUICK HEATER ASSY

main87710-50020iUVF4#200809-200911

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-50250iUVF4#200704-200808

main88501-50251iUVF4#200809-200911

main88501-50252iUVF4#200911-201103

main88501-50253iUVF4#201104

88515VALVE, COOLER EXPANSION

main88515-50180iUVF4#200704-200705

main88515-50210iUVF4#200809-200911

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26029×2iUVF4#200704-200809

88539JHOSE, DRAIN COOLER

main88539-50110iUVF4#200809-200911

main88539-50121iUVF4#200809-200911

88578BPACKING, COOLING UNIT, NO.1

main88578-50260×4iUVF4#200704-200809

88578CPACKING, COOLING UNIT, NO.2

main88578-30830iUVF4#200809-200911

88578VPACKING, COOLING UNIT, NO.3

main88578-30840iUVF4#200704-200809

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-3A170iUVF4#200809-200911

88625THERMISTOR, COOLER, NO.1

main88620-50020iUVF4#200809-200911

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-50691supersedes 88650-50E61iUVF45200704-200709

main88650-50692supersedes 88650-50E61iUVF45200710-200802

main88650-50693supersedes 88650-50E61iUVF45200803-200809

main88650-50701supersedes 88650-50E61iUVF45200704-200709

main88650-50702supersedes 88650-50E61iUVF45200710-200802

main88650-50703supersedes 88650-50E61iUVF45200803-200809

main88650-50711supersedes 88650-50E61iUVF45; UVF46200704-200709

main88650-50712supersedes 88650-50E61iUVF45; UVF46200710-200802

main88650-50713supersedes 88650-50E61iUVF45; UVF46200803-200809

main88650-50721supersedes 88650-50E71iUVF45; UVF46200704-200709

main88650-50722supersedes 88650-50E61iUVF45; UVF46200710-200802

main88650-50723supersedes 88650-50E71iUVF45; UVF46200803-200809

main88650-50870supersedes 88650-50E61iUVF45200809-200911

main88650-50880supersedes 88650-50E61iUVF45200809-200911

main88650-50890supersedes 88650-50E61iUVF45; UVF46200809-200911

main88650-50A00supersedes 88650-50E71iUVF45; UVF46200809-200911

main88650-50E70supersedes 88650-50E61iUVF45; UVF46200911-201006

main88650-50E71supersedes 88650-50E61iUVF45; UVF46201007

main88650-50E80iUVF4#; UVF45200911-201006

main88650-50E81supersedes 88650-50E61iUVF4#; UVF45201007

88710ATUBE ASSY, AIR CONDITIONER

main88710-50820iUVF4#200704-200809

88897KGROMMET, (FOR COOLER PIPE)

main88897-35030iUVF4#200704-200809

88899MPLATE, COVER(FOR AIR FILTER)

main88899-3A080iUVF4#200704-200809

8856921010CLAMP (FOR COOLER RELAY)

main88569-21010

8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30190

8889944050COVER, EVAPORATOR

main88899-44050

9009900149

main90099-00149

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9017906282

main90179-06282

33 parts on this diagram · 8 diagrams in section
