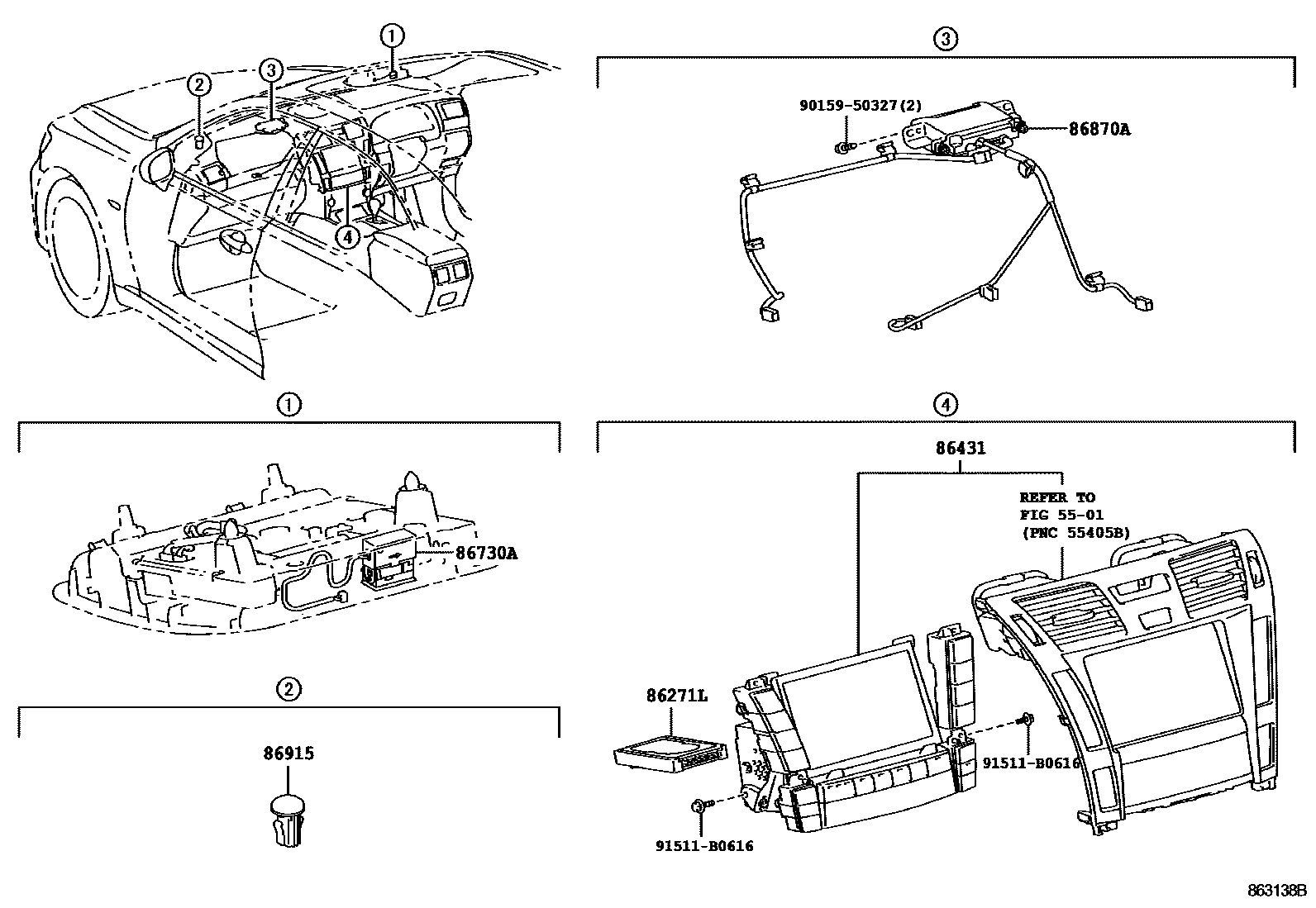

NAVIGATION & FRONT MONITOR DISPLAY

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

86271LHARD DISC

main86271-50891i200704-200707

main86271-50892i200708-200804

main86271-50893i200804-200809

main86271-50894i200809-200903

main86271-50895i200904-200911

86431DISPLAY, DISPLAY & NAVIGATION MODULE

main86431-50010supersedes 86431-50201i200704-200809

main86431-50020supersedes 86431-50231i200704-200809

main86431-50030supersedes 86431-50231i200704-200809

main86431-50040supersedes 86431-50231i200704-200809

main86431-50050supersedes 86431-50231i200704-200809

main86431-50180supersedes 86431-50201i200809-200905

main86431-50181supersedes 86431-50201i200905-200911

main86431-50190supersedes 86431-50231i200809-200905

main86431-50191supersedes 86431-50231i200905-200911

main86431-50200supersedes 86431-50231i200809-200905

main86431-50201supersedes 86431-50231i200905-200911

main86431-50210supersedes 86431-50231i200809-200905

main86431-50211supersedes 86431-50231i200905-200911

main86431-50220supersedes 86431-50231i200809-200905

main86431-50221supersedes 86431-50231i200905-200911

main86431-50340supersedes 86431-50201i200809-200905

main86431-50341supersedes 86431-50231i200905-200911

main86431-50350supersedes 86431-50231i200809-200905

main86431-50351supersedes 86431-50231i200905-200911

main86431-50360supersedes 86431-50231i200809-200905

main86431-50361supersedes 86431-50231i200905-200911

main86431-50370supersedes 86431-50231i200809-200905

main86431-50371supersedes 86431-50231i200905-200911

86730AMICROPHONE ASSY, TELEPHONE

main86730-50050i200704-200809

main86730-53030i200911-201209

86870AANTENNA ASSY, GPS & VICS

main86870-50090supersedes 86870-50080i200911

86915TRANSCEIVER, OPTICAL BEACON

9015950327

91511B0616

8 parts on this diagram · 2 diagrams in section
