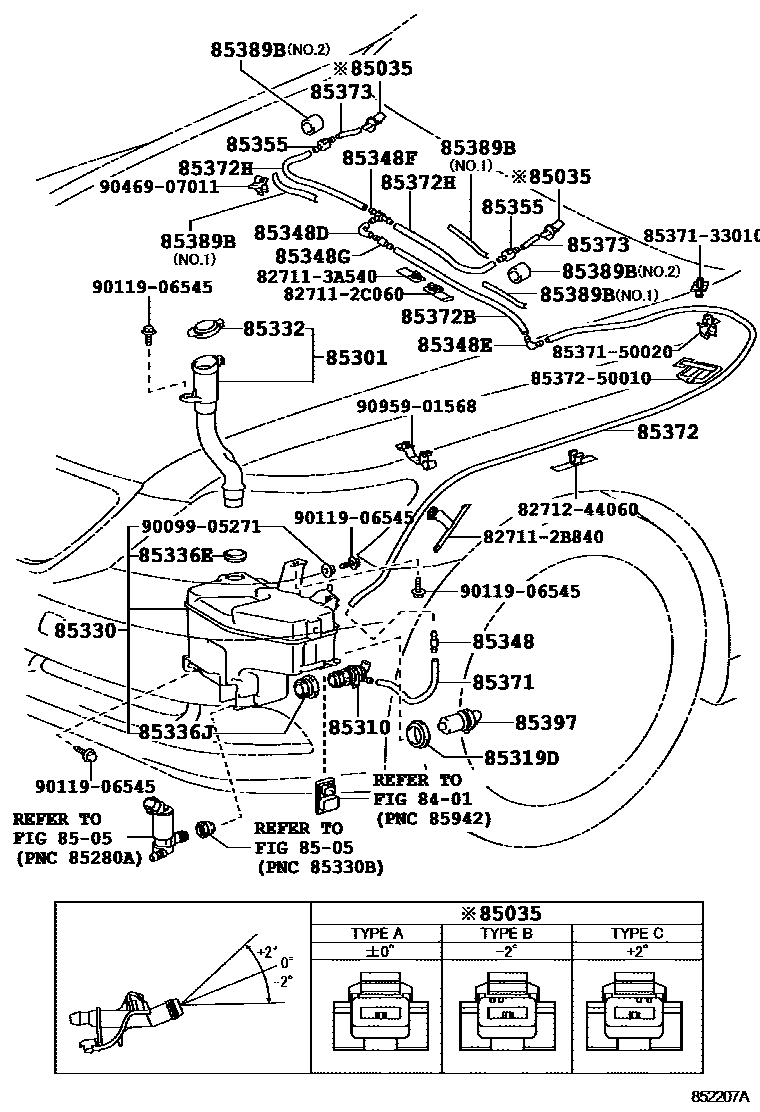

WINDSHIELD WASHER
8401SWITCH & RELAY & COMPUTER
85035NOZZLE SUB-ASSY, WASHER
8505HEADLAMP CLEANER
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
827112B840WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B840
827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C060
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3A540
8271244060CLAMP, WIRING HARNESS
main82712-44060
8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-33010
8537150020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-50020
8537250010HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85372-50010
9009905271
main90099-05271
9011906545
main90119-06545
9046907011
main90469-07011
9095901568
main90959-01568
34 parts on this diagram · 3 diagrams in section
