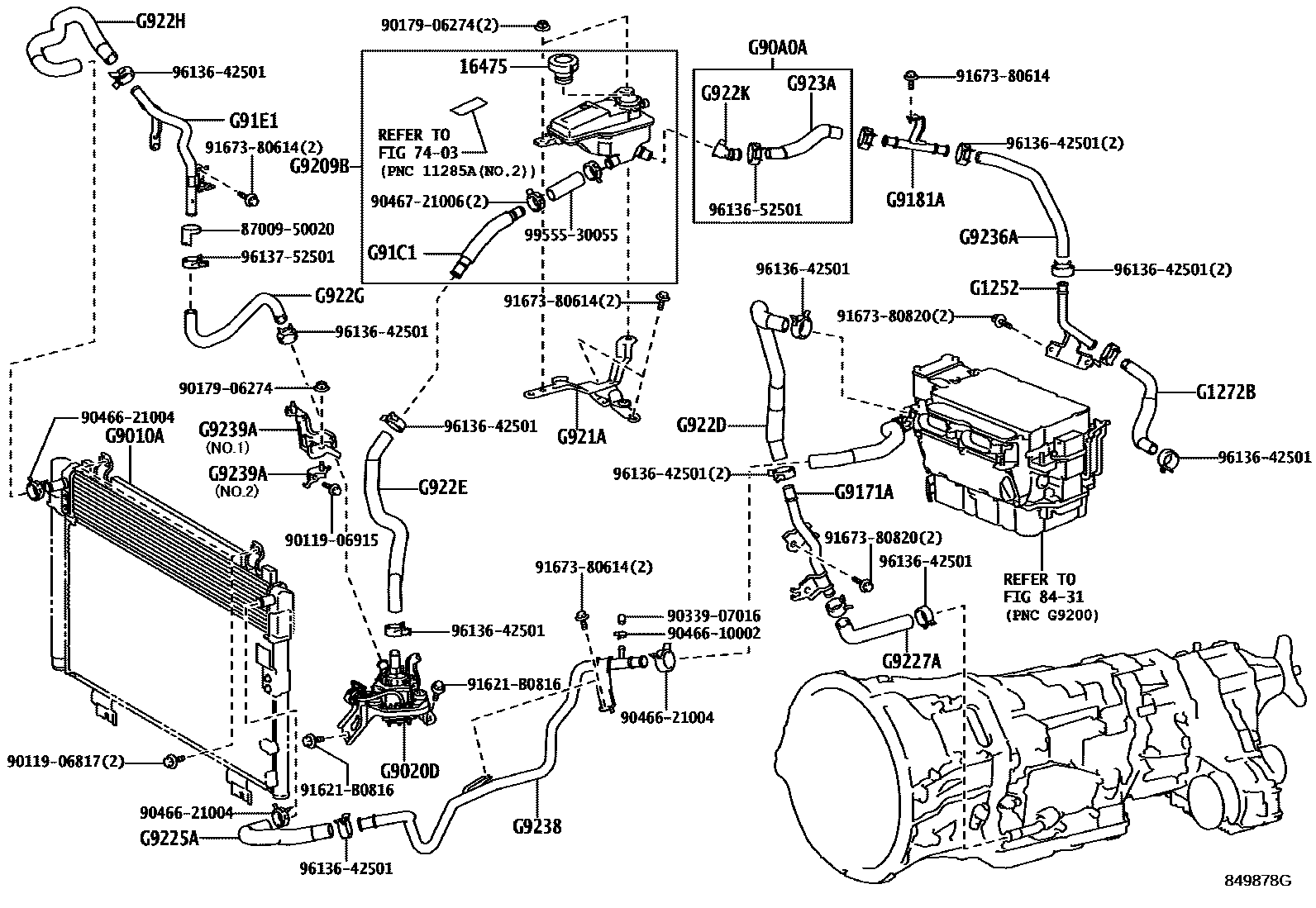

INVERTER COOLING
16475CAP, RESERVE TANK
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8431HEV INVERTER
G1252PIPE, MOTOR COOLING, NO.2
G1272BHOSE, MOTOR COOLING, NO.2
G9010ARADIATOR ASSY
G9020DPUMP ASSY, WATER W/MOTOR & BRACKET
G90A0AHOSE ASSY, INVERTER COOLING, NO.1
G9171APIPE, INVERTER COOLING, NO.1
G9181APIPE, INVERTER COOLING, NO.2
G91C1PIPE, HV WATER PUMP INLET
G91E1PIPE, HV WATER PUMP OUTLET, NO.2
G9209BTANK SUB-ASSY, INVERTER RESERVE
G921ABRACKET, INVERTER RESERVE TANK, NO.1
G9225AHOSE, INVERTER COOLING, NO.7
G922DHOSE, INVERTER COOLING OUTLET, NO.2
G922EHOSE, HYBRID WATER PUMP INLET
G922GHOSE, HYBRID WATER PUMP OUTLET, NO.2
G922HHOSE, HYBRID RADIATOR INLET
G922KCONNECTOR, HYBRID WATER HOSE
G9236AHOSE, INVERTER COOLING, NO.6
G9238PIPE, INVERTER COOLING
G9239ABRACKET, INVERTER COOLING PIPE
G923AHOSE, INVERTER COOLING, NO.7
8700950020HOSE SET, WATER, NO.1
main87009-50020
9011906817
main90119-06817
9011906915
main90119-06915
9017906274
main90179-06274
9033907016
main90339-07016
9046610002
main90466-10002
9046621004
main90466-21004
9046721006
main90467-21006
91621B0816
main91621-B0816
9167380614
main91673-80614
9167380820
main91673-80820
9613642501
main96136-42501
9613652501
main96136-52501
9613752501
main96137-52501
9955530055
main99555-30055
