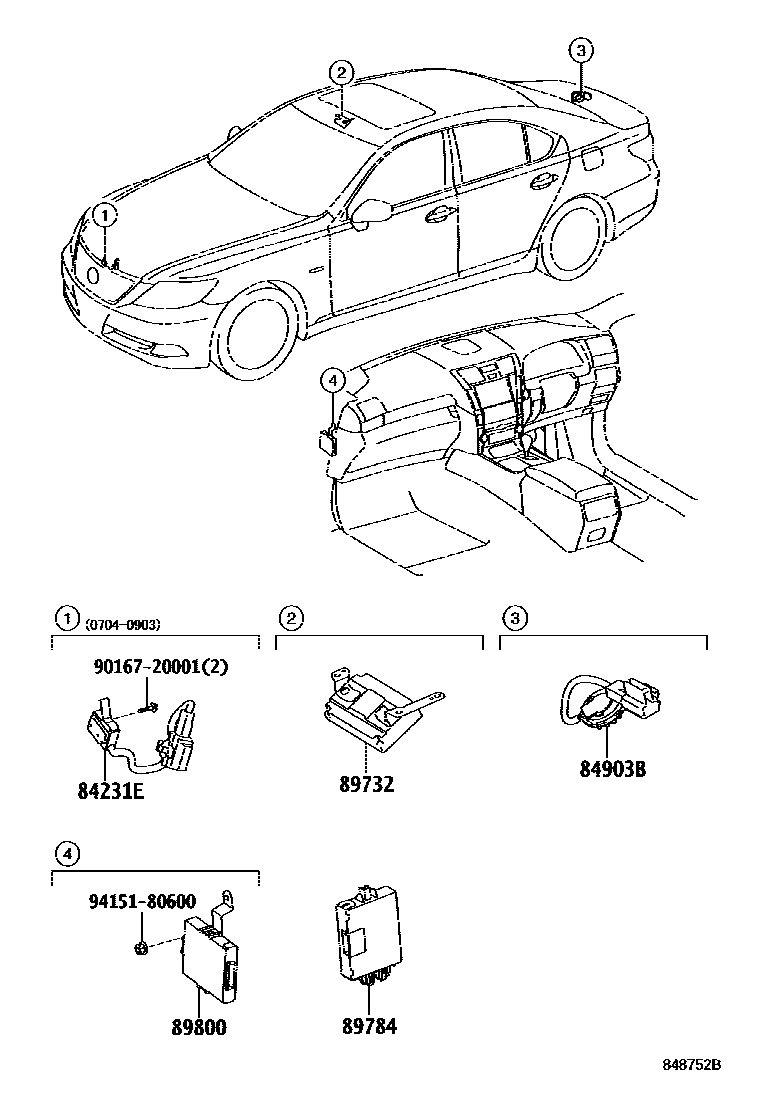

ANTI-THEFT DEVICE

84231ESWITCH, COURTESY(FOR SECURITY)

main84231-50160iUVF4#200809-200903

84903BSWITCH SUB-ASSY, DOOR UNLOCK

main84903-50210iUVF4#200704-200809

89732SENSOR, THEFT WARNING RADAR

main89732-50030supersedes 89732-50071iUVF45; UVF46200704-200710

main89732-50070supersedes 89732-50081iUVF45; UVF46200809-200810

main89732-50071supersedes 89732-50081iUVF45; UVF46200811-200911

main89732-50080supersedes 89732-50071iUVF45; UVF46200711-200809

main89732-50081supersedes 89732-50071iUVF45; UVF46200811-200911

89784COMPUTER, IMMOBILIZER CODE

main89784-50010iUVF4#200704-200809

main89784-50020iUVF4#200911-201008

main89784-50030iUVF4#201009

89800COMPUTER ASSY, REMOTE SECURITY

main89800-50010iUVF4#200704-200809

main89800-50020iUVF4#200911

9016720001

main90167-20001

9415180600

main94151-80600

7 parts on this diagram · 1 diagram in section
