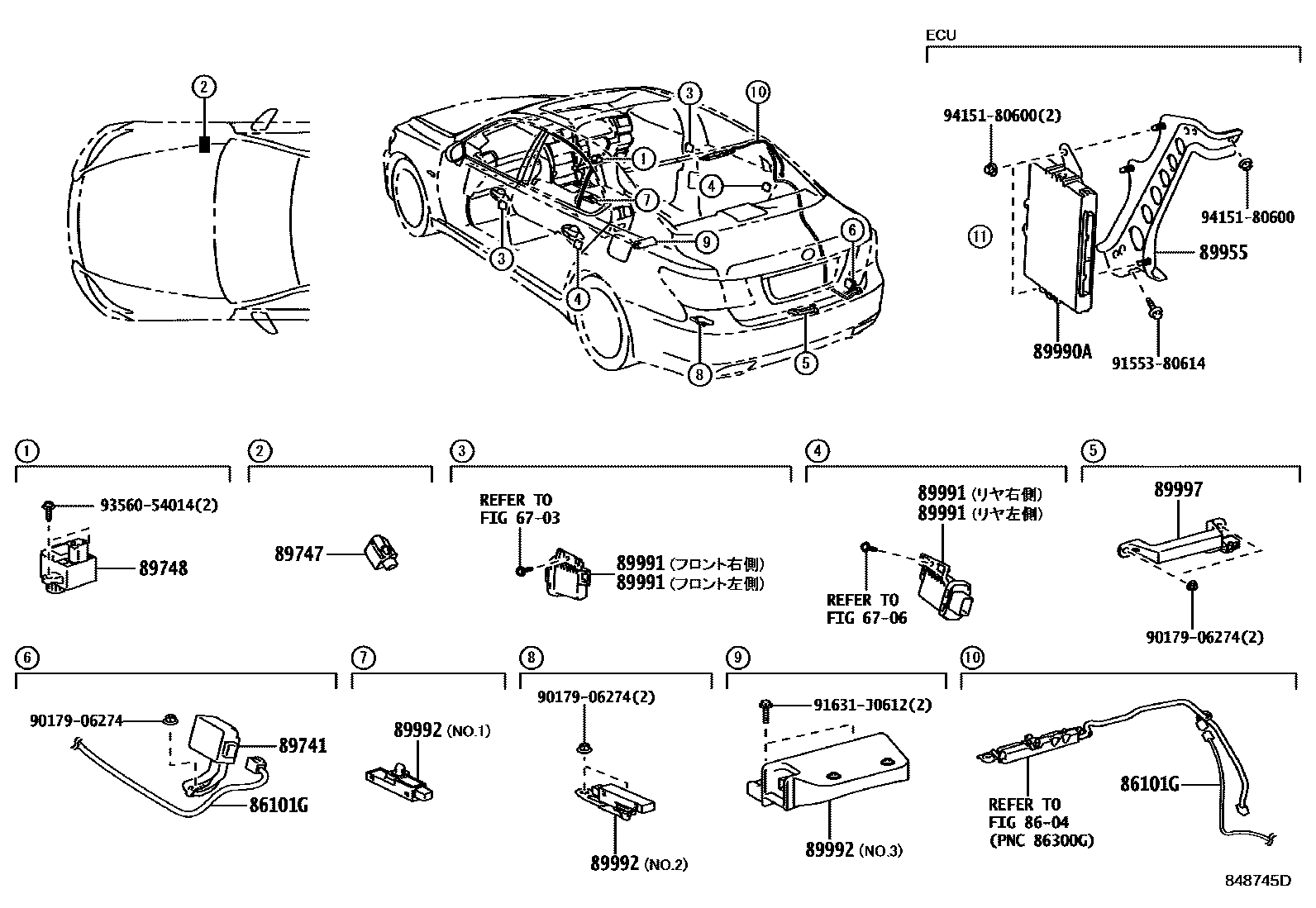

WIRELESS DOOR LOCK

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

8604ANTENNA

→ Go to FIG 86-04

86101GCORD SUB-ASSY, ANTENNA

main86101-50620iUVF4#200704-200809

89741RECEIVER, DOOR CONTROL

main89740-50080iUVF4#200704-200707

main89740-50081iUVF4#200708-200809

main89740-50170iUVF4#200911

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iUVF4#200704-200809

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-50010iUVF4#200704-200809

89955BRACKET, SMART KEY COMPUTER

main89955-50010iUVF4#200704-200809

89990ACOMPUTER ASSY, SMART KEY

main89990-50011iUVF4#200704-200809

main89990-50090iUVF4#200809-200911

main89990-50130iUVF4#200911-201008

main89990-50131iUVF4#201009-201106

main89990-50132iUVF4#201107

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-33010×2iUVF4#200704-200809

main89991-33020×2iUVF4#200911-201209

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30090iUVF4#200809-200911

main89992-50100iUVF4#200911-201111

main89992-50101iUVF4#201112

main89992-50110iUVF4#200911-201102

main89992-50111iUVF4#201103

main89992-53010iUVF4#200704-200809

89997ANTENNA, ELECTRICAL KEY

main89997-30070iUVF4#201108-201209

main89997-41010iUVF4#200704-200809

9017906274

main90179-06274

9155380614

main91553-80614

91631J0612

main91631-J0612

9356054014

main93560-54014

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
