SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 1/2 0003 1�������� 2/2 0004 1��� 0005 1������������ 0006 1������������ 0007 1������� 0008 1������� 0009 1����� 0010 1���,���,������� & ��� 0011 1���,���,������� & ���

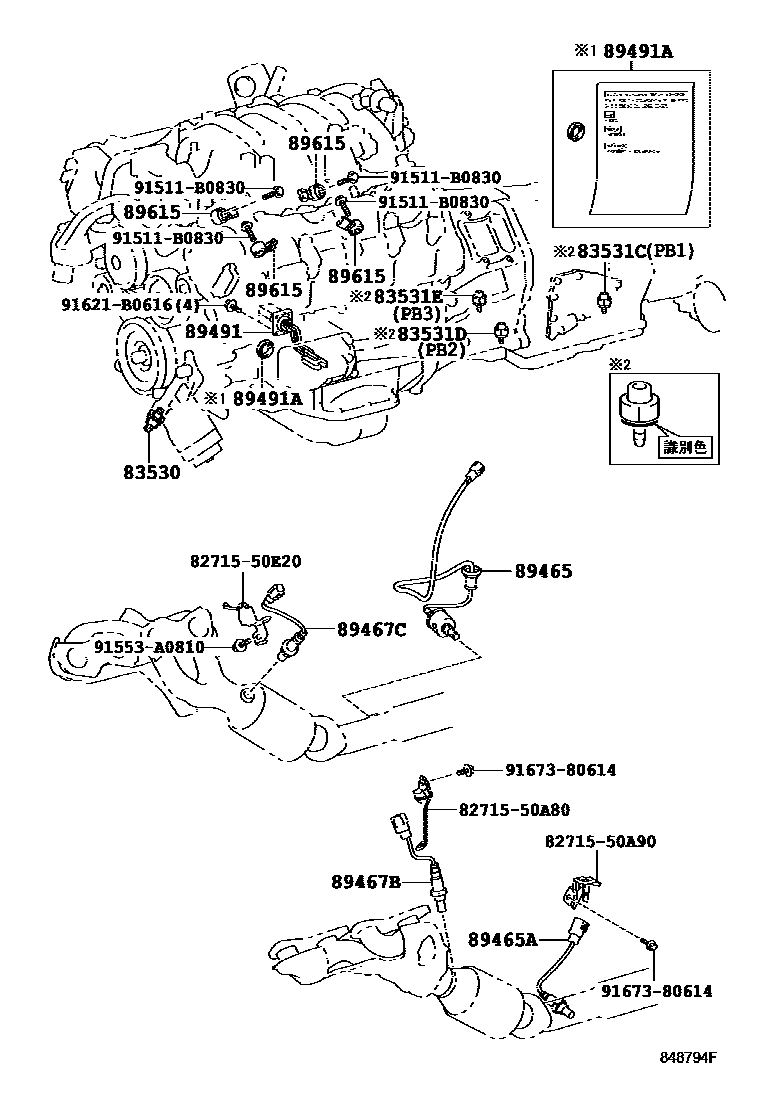

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUVF4#200704-201104

main83530-28020iUVF4#201104

main83530-60020iUVF4#201104

83531CSWITCH, OIL PRESSURE, (PB1)

main83531-30011iUVF4#200704-201209

83531DSWITCH, OIL PRESSURE, (PB2)

main83531-30011iUVF4#200704-201209

83531ESWITCH, OIL PRESSURE, (PB3)

main83531-30021iUVF4#200704-201112

main83531-30022iUVF4#201112-201209

89465SENSOR, OXYGEN

main89465-50170iUVF4#200704-200911

89465ASENSOR, OXYGEN NO.2

main89465-50200iUVF4#200704-200911

89467BSENSOR, AIR FUEL RATIO

main89467-50030iUVF4#200704-200911

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-50040iUVF4#200704-200911

89491SENSOR, ENGINE OIL LEVEL

main89491-50050iUVF4#200704-200911

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUVF4#200704-200911

89615SENSOR, KNOCK CONTROL

main89615-20090iUVF4#200704-200911

8271550A80BRACKET,WIRING HARNESS CLAMP

main82715-50A80

8271550A90BRACKET,WIRING HARNESS CLAMP

main82715-50A90

8271550E20BRACKET,WIRING HARNESS CLAMP

main82715-50E20

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167380614

main91673-80614

18 parts on this diagram · 11 diagrams in section
