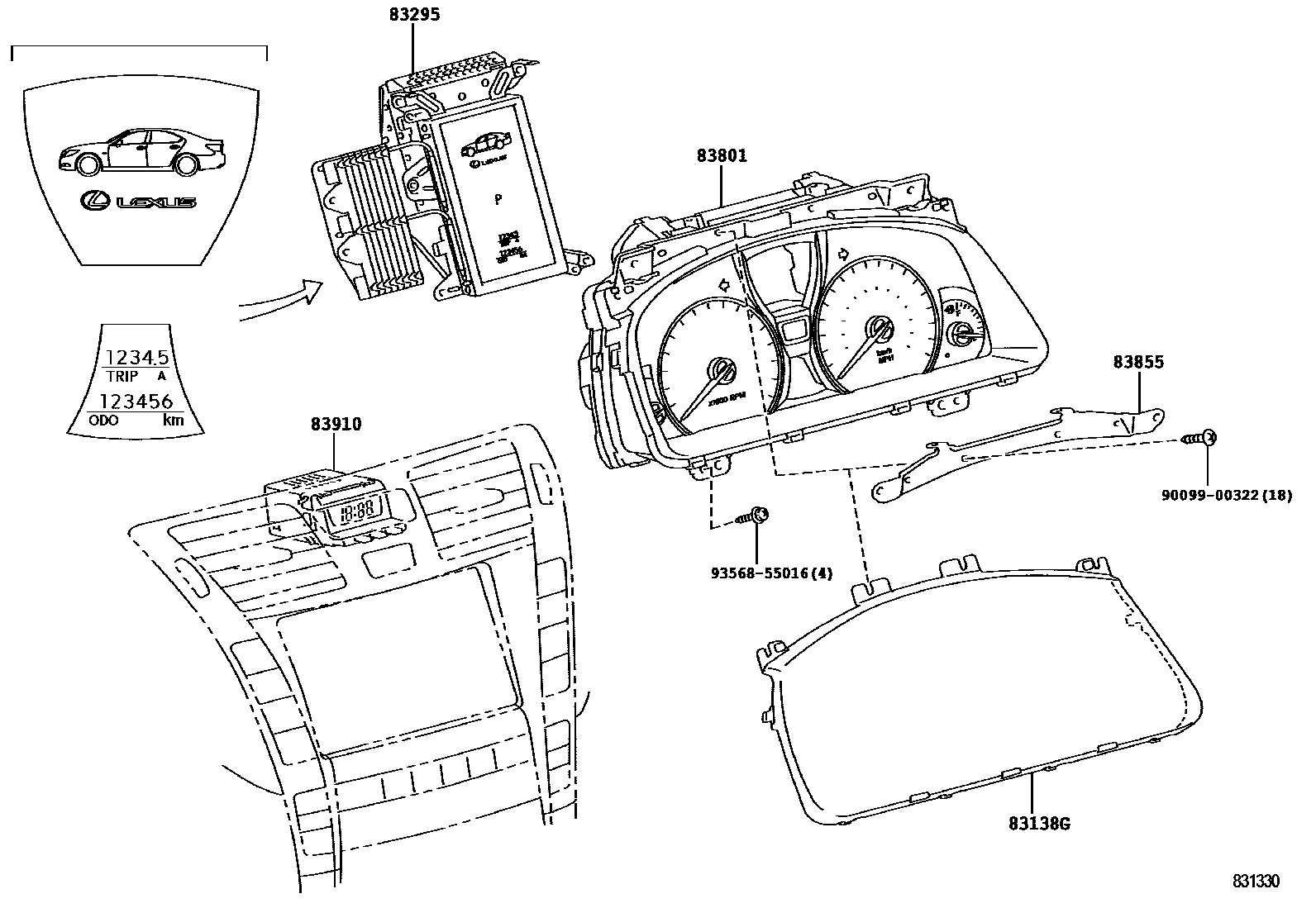

METER

0001 1 0002 1

83138GGLASS, COMBINATION METER

main83852-50350iUVF4#200704-200809

main83852-50720iUVF4#200911

83295PANEL, METER DISPLAY

main83295-50420iUVF4#200704-200809

main83889-50560iUVF4#200809-200911

83801COMPUTER SUB-ASSY, METER NO.1

main83801-50480iUVF4#200704-200809

main83801-50620iUVF4#200809-200911

83855BRACKET, COMBINATION METER, NO.1

main83855-50350iUVF4#200704-200809

83910CLOCK ASSY

main83910-50050iUVF4#200704-200809

main83910-50070iUVF4#200911

9009900322

main90099-00322

9356855016

main93568-55016

7 parts on this diagram · 2 diagrams in section
