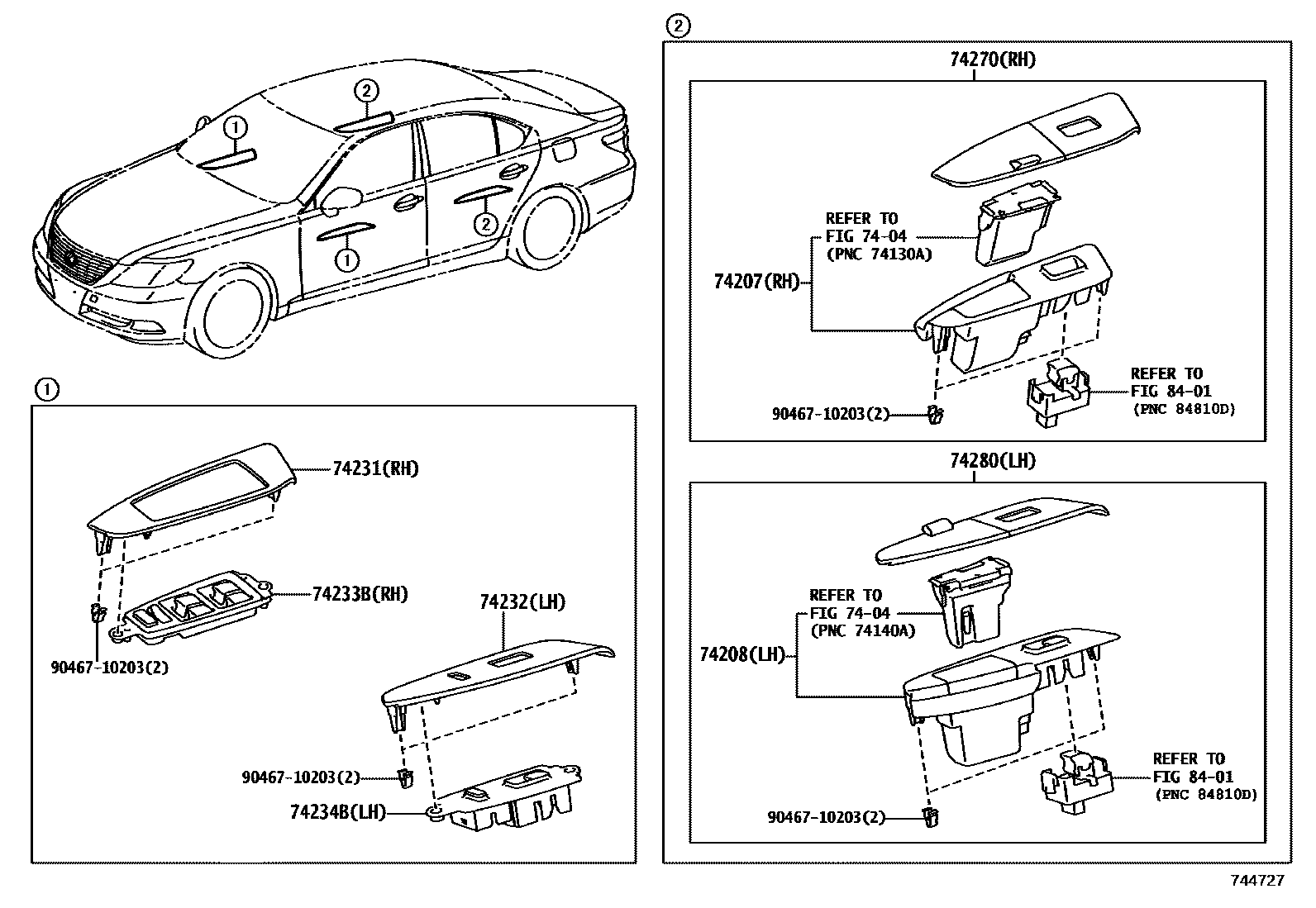

ARMREST & VISOR
7404ASH RECEPTACLE
74207PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH
74208PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH
74231PANEL, FRONT ARMREST BASE, UPPER RH
GRAY,TRIM06,08,10,12,21
DK.BROWN,TRIM01,05,13
BROWN,TRIM00,07,11,20
74232PANEL, FRONT ARMREST BASE, UPPER LH
GRAY,TRIM06,08,10,12,21
DK.BROWN,TRIM01,05,13
BROWN,TRIM00,07,11,20
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
74270PANEL ASSY, REAR DOOR ARMREST BASE, RH
GRAY,TRIM06,08,10,21
DK.BROWN,TRIM01,05
BROWN,TRIM00,07,11,20
74280PANEL ASSY, REAR DOOR ARMREST BASE, LH
GRAY,TRIM06,08,10,21
DK.BROWN,TRIM01,05,13
BROWN,TRIM00,07,11,20
8401SWITCH & RELAY & COMPUTER
9046710203
main90467-10203
11 parts on this diagram · 2 diagrams in section
