SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�����:������ 0003 1�����:��������� ��� 0004 1�����: �������-��(�����)

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-50010×2iUVF4#200911

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-50090×2iUVF4#200704-200809

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-50340-A0supersedes 73210-50370-A0iUVF4#200704-200809

main73210-50340-A1supersedes 73210-50370-A1iUVF4#200704-200809

main73210-50340-B0supersedes 73210-50300-B0iUVF4#200704-200809

main73210-50340-C0supersedes 73210-50300-C0iUVF4#200704-200809

main73210-50370-A1iUVF4#200911-201108

main73210-50370-A2iUVF4#200911-201108

main73210-50370-B1supersedes 73210-50300-B0iUVF4#200911-201108

main73210-50370-B2iUVF4#200911-201108

main73210-50370-B3iUVF4#200911-201108

main73210-50371-A1supersedes 73210-50370-A1iUVF4#201108-201209

main73210-50371-A2iUVF4#201108-201209

main73210-50371-B1iUVF45201108-201209

main73210-50371-B2supersedes 73210-50370-C0iUVF4#201108-201209

main73210-50371-B3iUVF45; UVF46201108-201209

main73210-50380-A0supersedes 73210-50370-A0iUVF4#200809-200911

main73210-50380-A1supersedes 73210-50370-A1iUVF4#200809-200911

main73210-50380-A2supersedes 73210-50370-A2iUVF4#200911-201108

main73210-50380-B0supersedes 73210-50370-B0iUVF4#200809-200911

main73210-50380-B1supersedes 73210-50370-B1iUVF4#200911-201108

main73210-50380-B2supersedes 73210-50370-B2iUVF4#200911-201108

main73210-50380-B3supersedes 73210-50370-B3iUVF4#200911-201108

main73210-50380-C0supersedes 73210-50370-C0iUVF4#200809-200911

main73210-50381-A1supersedes 73210-50371-A1iUVF4#201108-201209

main73210-50381-A2supersedes 73210-50371-A2iUVF4#201108-201209

main73210-50381-B1supersedes 73210-50371-B1iUVF45201108-201209

main73210-50381-B2supersedes 73210-50371-B2iUVF4#201108-201209

main73210-50381-B3supersedes 73210-50371-B3iUVF45; UVF46201108-201209

main73210-50460-A0iUVF4#200911-201108

main73210-50460-A1iUVF4#200911-201108

main73210-50460-C0iUVF4#200911-201108

main73210-50461-A0iUVF4#201108-201209

main73210-50461-A1iUVF4#201108-201209

main73210-50461-C0iUVF4#201108-201209

main73210-50470-A0iUVF4#200911-201108

main73210-50470-A1iUVF4#200911-201108

main73210-50470-C0iUVF4#200911-201108

main73210-50471-A0iUVF4#201108-201209

main73210-50471-A1iUVF4#201108-201209

main73210-50471-C0iUVF4#201108-201209

73219STOPPER, TONGUE PLATE

main73219-33010iUVF4#200911

main73219-33020iUVF4#200911

main73219-33030iUVF4#200911

main73219-50010iUVF4#200911

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-50310-A0supersedes 73220-50330-A0iUVF4#200704-200809

main73220-50310-A1supersedes 73220-50330-A1iUVF4#200704-200809

main73220-50310-B0supersedes 73220-50280-B0iUVF4#200704-200809

main73220-50310-C0supersedes 73220-50280-C0iUVF4#200704-200809

main73220-50330-A1iUVF4#200911-201108

main73220-50330-A2iUVF4#200911-201108

main73220-50330-B1supersedes 73220-50280-B0iUVF4#200911-201108

main73220-50330-B2iUVF4#200911-201108

main73220-50330-B3iUVF4#200911-201108

main73220-50331-A1supersedes 73220-50330-A1iUVF4#201108-201209

main73220-50331-A2iUVF4#201108-201209

main73220-50331-B1iUVF45201108-201209

main73220-50331-B2iUVF4#201108-201209

main73220-50331-B3iUVF45; UVF46201108-201209

main73220-50340-A0supersedes 73220-50330-A0iUVF4#200809-200911

main73220-50340-A1supersedes 73220-50330-A1iUVF4#200809-200911

main73220-50340-A2supersedes 73220-50330-A2iUVF4#200911-201108

main73220-50340-B0supersedes 73220-50330-B0iUVF4#200809-200911

main73220-50340-B1supersedes 73220-50330-B1iUVF4#200911-201108

main73220-50340-B2supersedes 73220-50330-B2iUVF4#200911-201108

main73220-50340-B3supersedes 73220-50330-B3iUVF4#200911-201108

main73220-50340-C0supersedes 73220-50330-C0iUVF4#200809-200911

main73220-50341-A1supersedes 73220-50331-A1iUVF4#201108-201209

main73220-50341-A2supersedes 73220-50331-A2iUVF4#201108-201209

main73220-50341-B1supersedes 73220-50331-B1iUVF45201108-201209

main73220-50341-B2iUVF4#201108-201209

main73220-50341-B3supersedes 73220-50331-B3iUVF45; UVF46201108-201209

main73220-50420-A0iUVF4#200911-201108

main73220-50420-A1iUVF4#200911-201108

main73220-50420-C0iUVF4#200911-201108

main73220-50421-A0iUVF4#201108-201209

main73220-50421-A1iUVF4#201108-201209

main73220-50421-C0iUVF4#201108-201209

main73220-50430-A0iUVF4#200911-201108

main73220-50430-A1iUVF4#200911-201108

main73220-50430-C0iUVF4#200911-201108

main73220-50431-A0iUVF4#201108-201209

main73220-50431-A1iUVF4#201108-201209

main73220-50431-C0iUVF4#201108-201209

73223COVER, SEAT BELT RETRACTOR

main73223-50060iUVF4#200704-200809

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-50050iUVF4#200911

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-50040iUVF4#200911

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-50121-A0iUVF4#200809-200911

IVORY,TRIM00,06

main73230-50121-B0iUVF4#200704-200809

LT.GRAY,TRIM10,11

main73230-50121-C0iUVF4#200809-200911

BLACK,TRIM2#

main73230-50121-A1iUVF4#200911-201209

main73230-50121-A2iUVF4#200911-201209

main73230-50121-A3iUVF4#200911-201209

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-50131-A0iUVF4#200809-200911

IVORY,TRIM00,06

main73230-50131-B0iUVF4#200809-200911

LT.GRAY,TRIM1#

main73230-50131-C0iUVF4#200704-200809

BLACK,TRIM20,21

main73230-50131-A1iUVF4#200911-201209

main73230-50131-A2iUVF4#200911-201209

main73230-50131-A3iUVF4#200911-201209

85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH

main85642-50040iUVF4#200911

85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH

main85642-50040iUVF4#200809-200911

main85642-50050iUVF4#200704-200809

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511058

main90105-11058

9017911010

main90179-11010

9018904059

main90189-04059

91512G1025

main91512-G1025

9155380612

main91553-80612

9356054014

main93560-54014

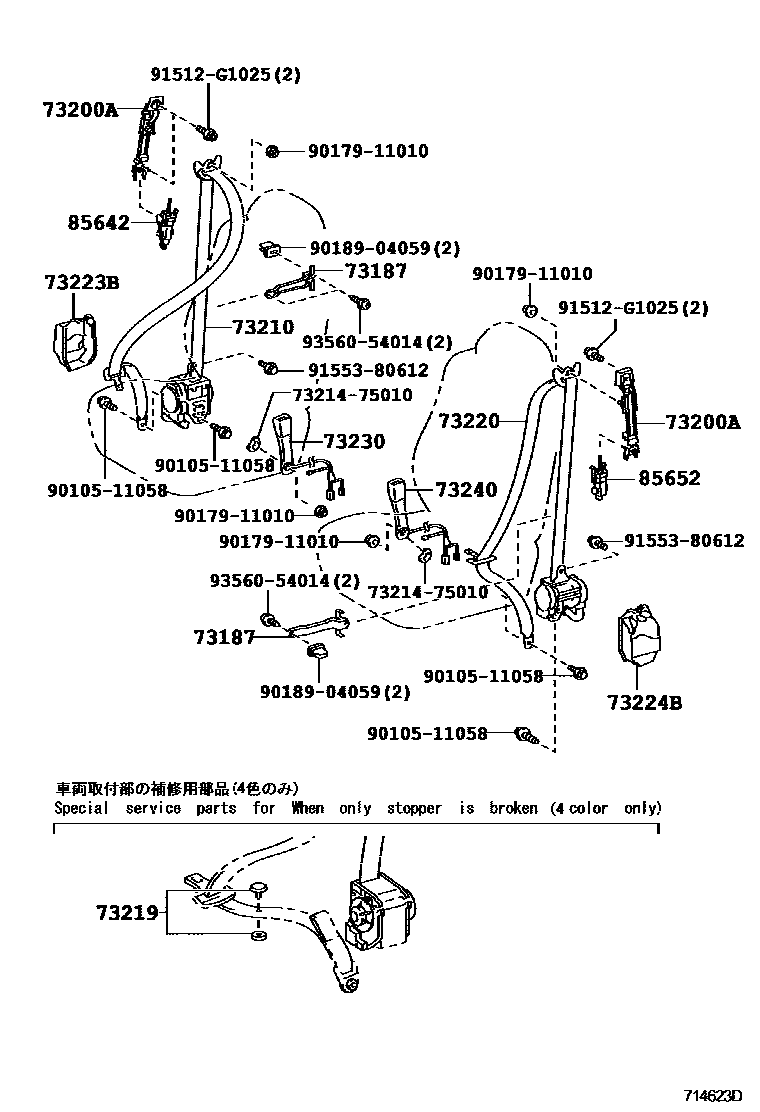

19 parts on this diagram · 4 diagrams in section
