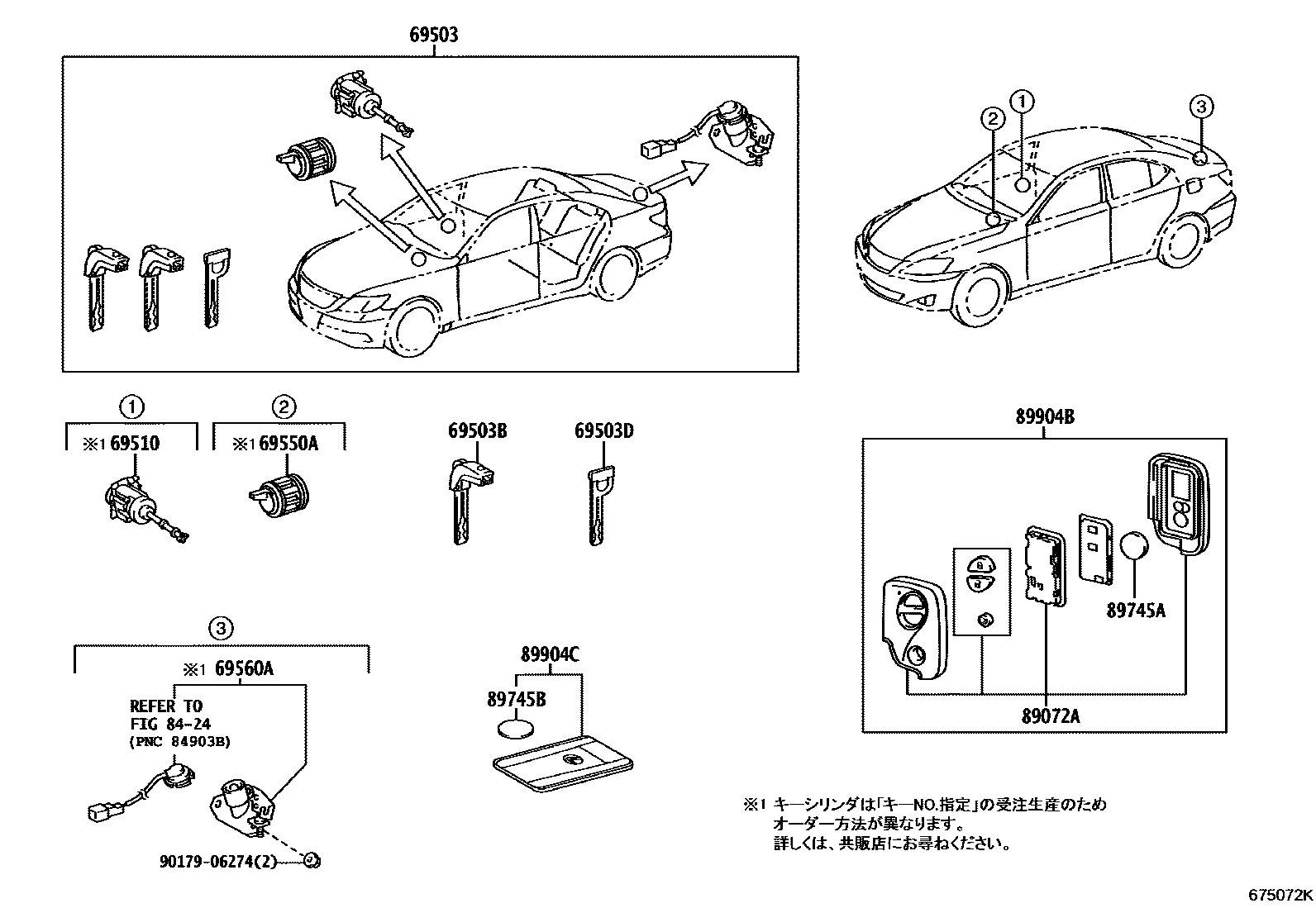

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-50B10iUVF4#200809-200911

main69005-50C10iUVF4#200911

69503BKEY, CUT

main69515-50240×2iUVF4#200704-200809

69503DKEY, CUT(CARD KEY)

main69515-30330iUVF4#200911

main69515-50220iUVF4#200809-200911

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-50100iUVF4#200704-200809

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-50040iUVF4#200704-200809

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-50090iUVF4#200911-201209

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-50770iUVF4#200704-200807

main89072-50771iUVF4#200808-200809

89745ABATTERY, TRANSMITTER

main89745-52020iUVF4#200704-200809

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iUVF4#200704-200809

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-50C00iUVF4#200704-200809

main89904-50D30×2iUVF4#200809-200911

main89904-75040×2iUVF4#200911-201209

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-50820iUVF4#200704-200803

main89904-50821iUVF4#200804-200809

main89904-50E10iUVF4#200809-200911

main89994-50510iUVF4#200911

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
