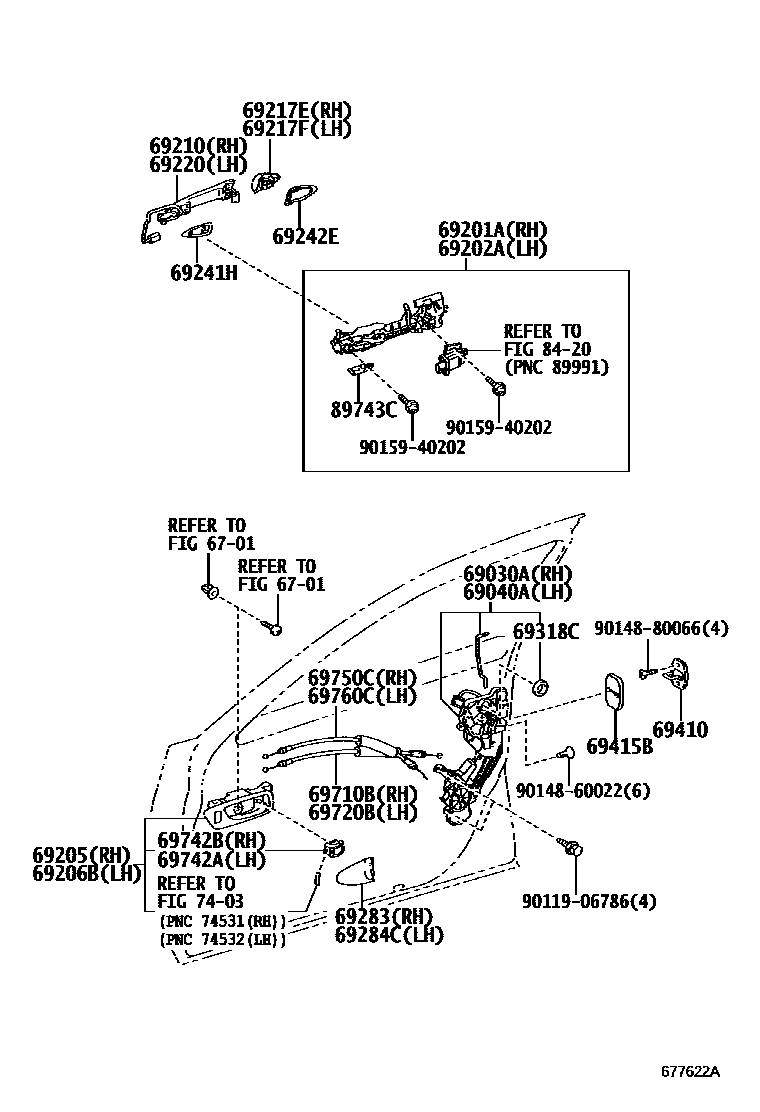

FRONT DOOR LOCK & HANDLE
6701FRONT DOOR PANEL & GLASS
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
IVORY,TRIM00,06
LT.GRAY,TRIM10,11
BLACK,TRIM05,08,12,13,2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,07
LT.GRAY,TRIM10,11
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,07
WATER WHITE,TRIM1#; WATER WHITE,TRIM14,15
LT.GRAY,TRIM10,11
BLACK,TRIM05,08,20,21
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,07
WATER WHITE,TRIM1#; WATER WHITE,TRIM14,15
LT.GRAY,TRIM10,11
BLACK,TRIM05,08,12,13,2#
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69742AKNOB, REAR DOOR LOCK CONTROL, LH
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,07
WATER WHITE,TRIM1#; WATER WHITE,TRIM14,15
LT.GRAY,TRIM10,11
BLACK,TRIM00,02,03,05,06,08,2#,3#,4#,6#
69742BKNOB, FRONT DOOR LOCK CONTROL, RH
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,07
WATER WHITE,TRIM1#; WATER WHITE,TRIM14,15
LT.GRAY,TRIM10,11
BLACK,TRIM05,08,12,13,2#
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
7403CAUTION PLATE (EXTERIOR & INTERIOR)
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
9011906786
main90119-06786
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
31 parts on this diagram · 1 diagram in section
