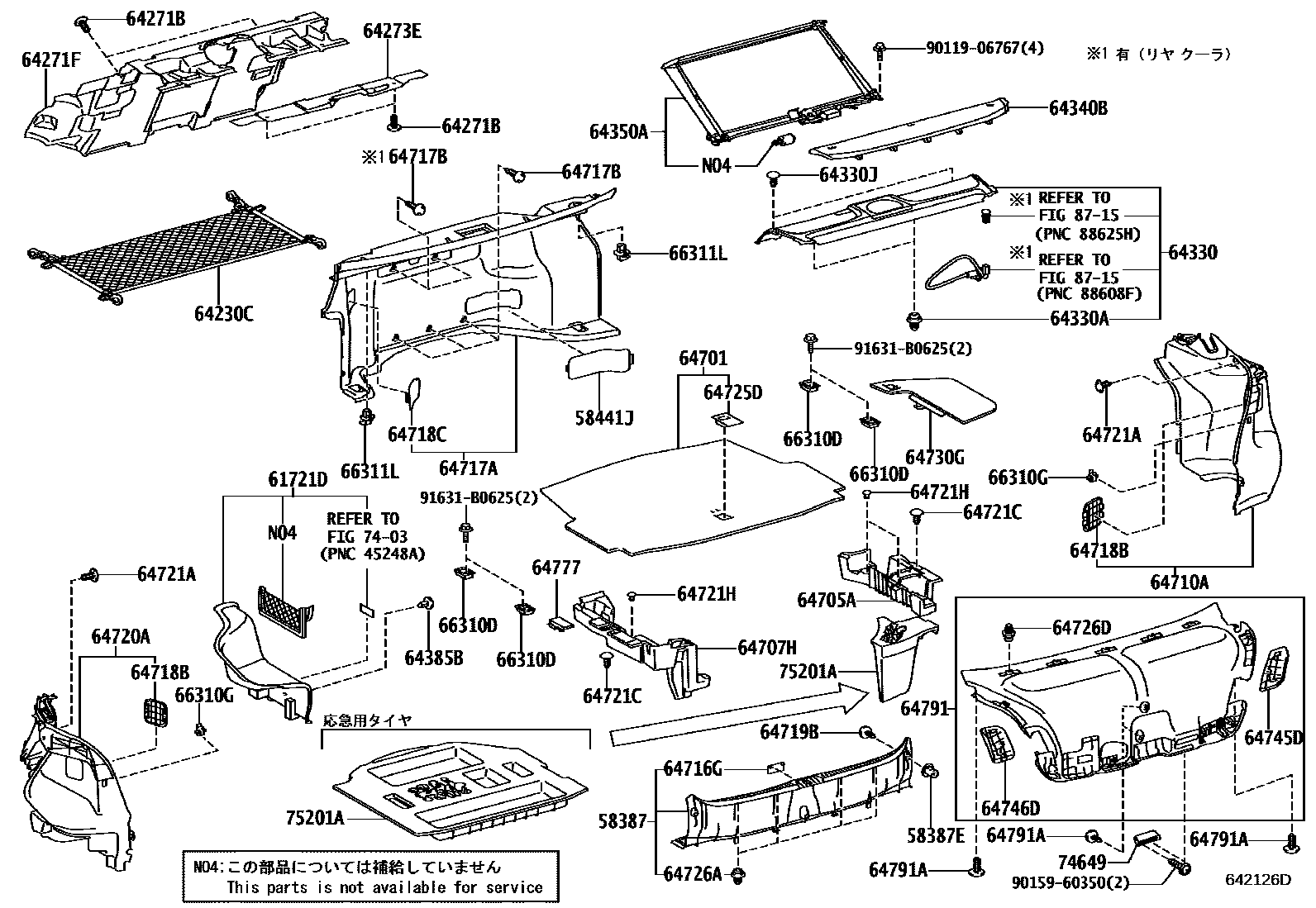

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58441JCOVER, BATTERY SERVICE HOLE
BLACK,TRIM0#,1#,2#
61721DCOVER, BATTERY SERVICE HOLE, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64230CNET ASSY, ROOM PARTITION
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK
64271FTRIM, ROOM PARTITION
64273EPAD, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,05,07,08
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,05,07,08
LT.GRAY,TRIM1#
BLACK,TRIM2#
MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02,03
LT.GRAY,TRIM10,11
BLACK,TRIM14,15,2#
MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02,03
BLACK,TRIM1#,2#,3#,4#,6#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02,03
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,11
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#,6#
BLACK,TRIM14,15,2#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
IVORY,TRIM00,06
MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02,03
LT.GRAY,TRIM1#
LT.GRAY,TRIM10,11
BLACK,TRIM14,15,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#,6#
64350ASHADE ASSY, REAR WINDOW
64385BCLIP
BLACK
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
BLACK,TRIM0#,1#,2#
64705AGUARD SUB-ASSY, SPARE WHEEL
64707HGUARD SUB-ASSY, SPARE WHEEL, NO.2
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#,3#,4#,6#
BLACK,TRIM0#,1#,2#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64721CCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM0#,1#,2#
64721HCLIP(LUGGAGE COMPARTMENT)
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM0#,1#,2#
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64730GBOARD, DECK TRIM SIDE, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64777CLAMP, SPARE WHEEL COVER
BLACK,TRIM0#,1#,2#
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
BLACK,TRIM0#,1#,2#,3#,4#,6#
64791ACLIP(FOR BACK DOOR TRIM)
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
66310DHOOK ASSY, ROPE
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
66310GHOOK ASSY, ROPE
BLACK
66311LHOOK,ROPE
BLACK
7403CAUTION PLATE (EXTERIOR & INTERIOR)
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#,4#,6#
75201ABOX, TOOL
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9011906767
main90119-06767
9015960350
main90159-60350
91631B0625
main91631-B0625
47 parts on this diagram · 2 diagrams in section
