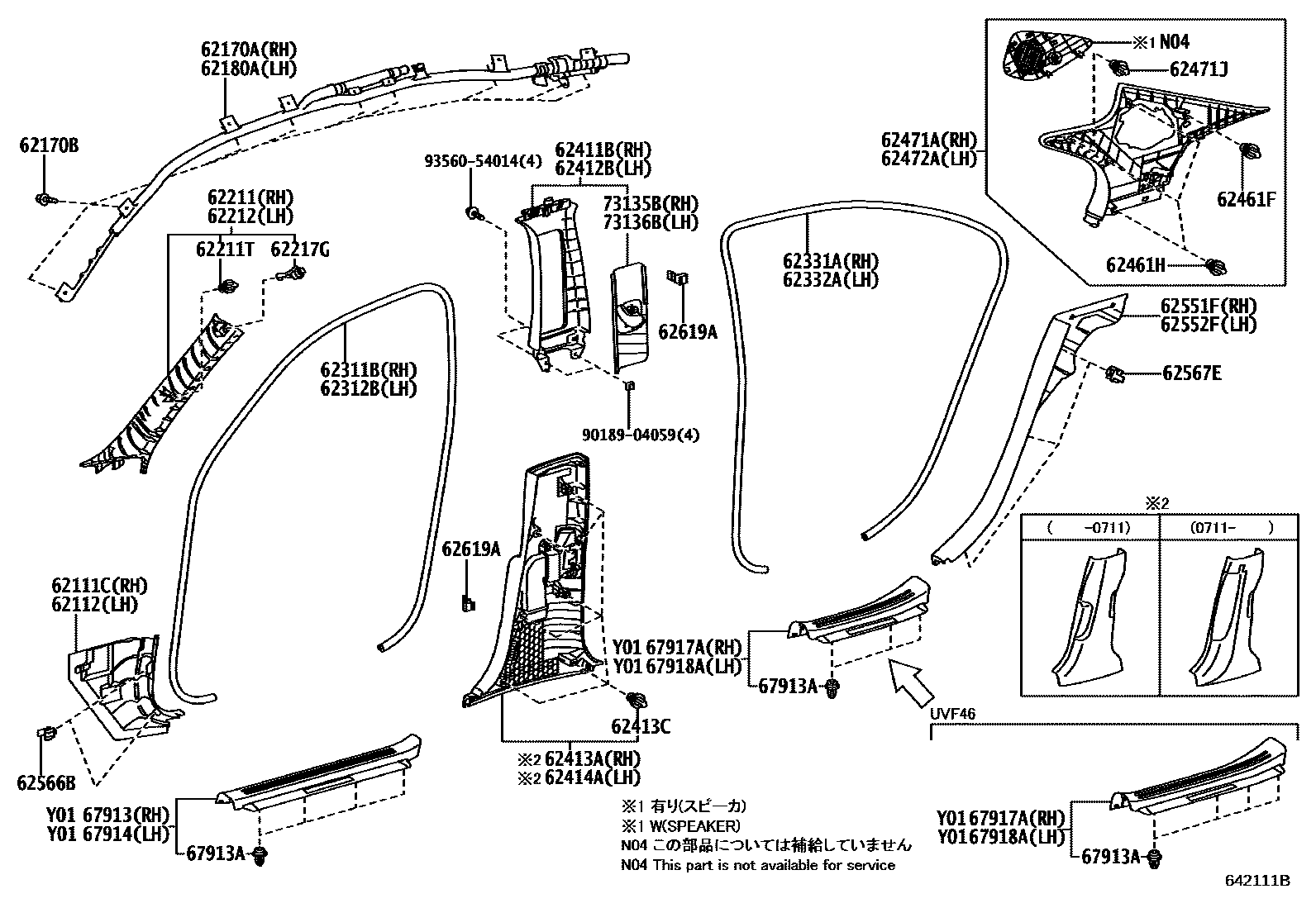

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-50020-A0iUVF4#200704-200809

IVORY,TRIM00,06

main62111-50020-A1iUVF4#200911-201209

MELLOW WHITE,TRIM01,05,07,08

main62111-50020-A3iUVF4#200911-201209

IVORY,TRIM02,03

main62111-50020-B0iUVF4#200809-200911

LT.GRAY,TRIM1#

main62111-50020-C0iUVF45; UVF46200911-201209

BLACK,TRIM1#,2#,3#,4#,6#; BLACK,TRIM14,15,2#,3#,4#,6#

62112BOARD, COWL SIDE TRIM, LH

main62112-50020-A0iUVF4#200704-200809

IVORY,TRIM00,06

main62112-50020-A1iUVF4#200704-200809

MELLOW WHITE,TRIM01,05,07,08

main62112-50020-A3iUVF4#200911-201209

IVORY,TRIM02,03

main62112-50020-B0iUVF4#200809-200911

LT.GRAY,TRIM1#

main62112-50020-C0iUVF4#200704-200809

BLACK,TRIM20,21

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-50020iUVF45200704-200809

main62170-50030iUVF46200704-200809

62170BBOLT, W/WASHER

main90119-06869×18iUVF4#200809-200911

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-50020iUVF45200809-200911

main62180-50030iUVF46200704-200809

62211GARNISH, FRONT PILLAR, RH

main62211-50040-A0supersedes 62211-50030-A1iUVF45; UVF46200809-200911

main62211-50040-A1supersedes 62211-50030-A0iUVF45; UVF46200704-200809

main62211-50040-B0supersedes 62211-50030-B0iUVF45; UVF46200704-200809

main62211-50030-A0iUVF45200911-201208

main62211-50030-A2iUVF45200911-201208

main62211-50030-B0iUVF45200911-201208

main62211-50040-A4iUVF45; UVF46200911-201208

main62211-50090-C0iUVF45; UVF46200911-201208

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161×2iUVF4#200809-200911

62212GARNISH, FRONT PILLAR, LH

main62212-50040-A0supersedes 62212-50030-A1iUVF45; UVF46200809-200911

main62212-50040-A1supersedes 62212-50030-A0iUVF45; UVF46200704-200809

main62212-50040-B0supersedes 62212-50030-B0iUVF45; UVF46200704-200809

main62212-50030-A0iUVF45200911-201208

main62212-50030-A2iUVF45200911-201208

main62212-50030-B0iUVF45200911-201208

main62212-50040-A4iUVF45; UVF46200911-201208

main62212-50090-C0iUVF45; UVF46200911-201208

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004×2iUVF4#; UVF45; UVF46200911-201209

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-50040-C1iUVF4#200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main62311-50040-E0iUVF4#200911-201209

ORCHID BROWN,TRIM01,07

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-50040-C1iUVF4#200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main62312-50040-E0iUVF4#200809-200911

ORCHID BROWN,TRIM00,01,06,07

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-50040-C1iUVF45200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main62331-50040-E0iUVF45200704-200809

ORCHID BROWN,TRIM00,01,06,07

main62331-50050-C1iUVF46200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main62331-50050-E0iUVF46200911-201209

ORCHID BROWN,TRIM01,07

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-50040-C1iUVF45200911-201209

BLACK,TRIM0#,1#,2#,3#,4#,6#

main62332-50040-E0iUVF45200911-201209

ORCHID BROWN,TRIM01,07

main62332-50050-C1iUVF46200809-200911

BLACK,TRIM05,08,1#,2#

main62332-50050-E0iUVF46200704-200809

ORCHID BROWN,TRIM00,01,06,07

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-50020-A0iUVF45; UVF46200704-200710

main62410-50020-B0iUVF45; UVF46200704-200710

main62410-50021-A0supersedes 62410-50011-A1iUVF45; UVF46200710-200809

main62410-50021-B0supersedes 62410-50011-B0iUVF45; UVF46200710-200809

main62410-50011-A0iUVF45200911-201208

main62410-50011-A2iUVF45200911-201208

main62410-50011-B0iUVF45200911-201208

main62410-50020-A1supersedes 62410-50011-A0iUVF45; UVF46200704-200710

main62410-50021-A1iUVF45; UVF46200911-201208

main62410-50021-A4iUVF45; UVF46200911-201208

main62410-50060-C0iUVF45; UVF46200911-201208

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-50020-A0iUVF45; UVF46200704-200710

main62420-50020-B0iUVF45; UVF46200704-200710

main62420-50021-A0supersedes 62420-50011-A1iUVF45; UVF46200809-200911

main62420-50021-B0supersedes 62420-50011-B0iUVF45; UVF46200710-200809

main62420-50011-A0iUVF45200911-201208

main62420-50011-A2iUVF45200911-201208

main62420-50011-B0iUVF45200911-201208

main62420-50020-A1supersedes 62420-50011-A0iUVF45; UVF46200704-200710

main62420-50021-A1iUVF45; UVF46200911-201208

main62420-50021-A4iUVF45; UVF46200911-201208

main62420-50060-C0iUVF45; UVF46200911-201208

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-50080-A0iUVF4#200704-200711

IVORY,TRIM00,06

main62413-50080-A1iUVF4#200704-200711

MELLOW WHITE,TRIM01,05,07,08

main62413-50080-B0iUVF4#200704-200711

LT.GRAY,TRIM10,11

main62413-50080-C0iUVF4#200704-200711

BLACK,TRIM20,21

main62413-50100-A0iUVF4#200711-200809

IVORY,TRIM00,06

main62413-50100-A1iUVF4#200711-200809

MELLOW WHITE,TRIM01,05,07,08

main62413-50100-A2iUVF4#; UVF45; UVF46200911-201208

main62413-50100-B0iUVF4#200809-200911

LT.GRAY,TRIM1#

main62413-50100-C0iUVF4#; UVF45; UVF46200911-201208

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161×12iUVF4#200809-200911

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-50090-A0iUVF4#200704-200711

IVORY,TRIM00,06

main62414-50090-A1iUVF4#200704-200711

MELLOW WHITE,TRIM01,05,07,08

main62414-50090-B0iUVF4#200704-200711

LT.GRAY,TRIM10,11

main62414-50090-C0iUVF4#200704-200711

BLACK,TRIM20,21

main62414-50110-A0iUVF4#200809-200911

IVORY,TRIM00,06

main62414-50110-A1iUVF4#200711-200809

MELLOW WHITE,TRIM01,05,07,08

main62414-50110-A2iUVF4#; UVF45; UVF46200911-201208

main62414-50110-B0iUVF4#200809-200911

LT.GRAY,TRIM1#

main62414-50110-C0iUVF4#200711-200809

BLACK,TRIM20,21

62461FCLIP (FOR ROOF SIDE TRIM GARNISH)

main90467-10167×2iUVF4#200809-200911

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10161×6iUVF4#200704-200809

62471AGARNISH, ROOF SIDE, INNER RH

main62471-50060-A2supersedes 62471-50030-A1iUVF45; UVF46200704-200809

main62471-50060-A3supersedes 62471-50030-A0iUVF45; UVF46200704-200809

main62471-50060-B1supersedes 62471-50030-B0iUVF45; UVF46200704-200809

main62471-50030-A0iUVF45200911-201208

main62471-50030-A2iUVF45200911-201208

main62471-50030-B0iUVF45200911-201208

main62471-50040-A0supersedes 62471-50030-A1iUVF45200704-200809

main62471-50040-A1supersedes 62471-50030-A0iUVF45200809-200911

main62471-50040-A4iUVF45200911-201208

main62471-50040-B0supersedes 62471-50030-B0iUVF45200911-201208

main62471-50050-A2supersedes 62471-50030-A0iUVF45200911-201208

main62471-50050-A3supersedes 62471-50030-A1iUVF45200809-200911

main62471-50050-A4supersedes 62471-50030-A2iUVF45200911-201208

main62471-50050-B1supersedes 62471-50030-B0iUVF45200704-200809

main62471-50060-A6iUVF45; UVF46200911-201208

main62471-50130-C0iUVF45200911-201208

main62471-50140-C0iUVF45; UVF46200911-201208

62471JCLIP (FOR ROOF SIDE GARNISH)

main62217-12050×2iUVF4#; UVF45; UVF46200911-201209

62472AGARNISH, ROOF SIDE, INNER LH

main62472-50060-A2supersedes 62472-50030-A1iUVF45; UVF46200809-200911

main62472-50060-A3supersedes 62472-50030-A0iUVF45; UVF46200704-200809

main62472-50060-B1supersedes 62472-50030-B0iUVF45; UVF46200704-200809

main62472-50030-A0iUVF45200911-201208

main62472-50030-A2iUVF45200911-201208

main62472-50030-B0iUVF45200911-201208

main62472-50040-A0supersedes 62472-50030-A1iUVF45200704-200809

main62472-50040-A1iUVF45200911-201208

main62472-50040-A4iUVF45200911-201208

main62472-50040-B0iUVF45200911-201208

main62472-50050-A2supersedes 62472-50030-A0iUVF45200809-200911

main62472-50050-A3supersedes 62472-50030-A1iUVF45200704-200809

main62472-50050-A4supersedes 62472-50030-A2iUVF45200911-201208

main62472-50050-B1supersedes 62472-50030-B0iUVF45200809-200911

main62472-50060-A6iUVF45; UVF46200911-201208

main62472-50130-C0iUVF45200911-201208

main62472-50140-C0iUVF45; UVF46200911-201208

62551FGARNISH, REAR SEAT SIDE, RH

main62551-50080-A2iUVF45200911-201209

IVORY,TRIM02,03

main62551-50080-C0iUVF45200911-201209

BLACK,TRIM14,15,2#

main62551-50100-A0supersedes 62551-50080-A0iUVF45; UVF46200704-200809

main62551-50100-A1supersedes 62551-50080-A1iUVF45; UVF46200704-200809

main62551-50100-A2iUVF45; UVF46200911-201209

main62551-50100-B0supersedes 62551-50080-B0iUVF45; UVF46200704-200809

main62551-50100-C0supersedes 62551-50080-C0iUVF45; UVF46200704-200809

62552FGARNISH, REAR SEAT SIDE, LH

main62552-50060-A2iUVF45200911-201209

IVORY,TRIM02,03

main62552-50060-C0iUVF45200911-201209

BLACK,TRIM14,15,2#

main62552-50080-A0supersedes 62552-50060-A0iUVF45; UVF46200704-200809

main62552-50080-A1supersedes 62552-50060-A1iUVF45; UVF46200809-200911

main62552-50080-A2iUVF45; UVF46200911-201209

main62552-50080-B0supersedes 62552-50060-B0iUVF45; UVF46200809-200911

main62552-50080-C0supersedes 62552-50060-C0iUVF45; UVF46200809-200911

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-30010×4iUVF4#200911-201209

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62566-30010×6iUVF4#200911-201209

62619APLATE, SIDE TRIM SET

main62619-30030×4iUVF4#200704-200809

67913PLATE, FRONT DOOR SCUFF, RH

main67913-50111-A0iUVF4#200809-200911

IVORY,TRIM00,06

main67913-50111-A1iUVF4#200704-200809

MELLOW WHITE,TRIM01,05,07,08

main67913-50111-A2iUVF4#200911-201208

IVORY,TRIM00,02,03,06

main67913-50111-B0iUVF4#200704-200809

LT.GRAY,TRIM10,11

main67913-50111-C0iUVF4#200911-201208

BLACK,TRIM14,15,2#,3#,4#,6#

67913ACLIP(FOR SCUFF PLATE)

main90467-09229×14iUVF45; UVF46200911-201209

67914PLATE, FRONT DOOR SCUFF, LH

main67914-50111-A0iUVF4#200704-200809

IVORY,TRIM00,06

main67914-50111-A1iUVF4#200704-200809

MELLOW WHITE,TRIM01,05,07,08

main67914-50111-A2iUVF4#200911-201208

IVORY,TRIM00,02,03,06

main67914-50111-B0iUVF4#200704-200809

LT.GRAY,TRIM10,11

main67914-50111-C0iUVF4#200911-201208

BLACK,TRIM14,15,2#,3#,4#,6#

67917APLATE, REAR DOOR SCUFF, RH

main67917-50111-A0iUVF46200704-200809

IVORY,TRIM00,06

main67917-50111-A1iUVF46200911-201208

MELLOW WHITE,TRIM01,05,07,08

main67917-50111-A2iUVF46200911-201208

IVORY,TRIM00,02,03,06

main67917-50111-B0iUVF46200704-200809

LT.GRAY,TRIM10,11

main67917-50111-C0iUVF46200911-201208

BLACK,TRIM14,15,2#,3#,4#,6#

main67917-50121-A0iUVF45200809-200911

IVORY,TRIM00,06

main67917-50121-A1iUVF45200704-200809

MELLOW WHITE,TRIM01,05,07,08

main67917-50121-A2iUVF45200911-201209

IVORY,TRIM02,03

main67917-50121-B0iUVF45200704-200809

LT.GRAY,TRIM10,11

main67917-50121-C0iUVF45200809-200911

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-50111-A0iUVF46200704-200809

IVORY,TRIM00,06

main67918-50111-A1iUVF46200911-201208

MELLOW WHITE,TRIM01,05,07,08

main67918-50111-A2iUVF46200911-201208

IVORY,TRIM00,02,03,06

main67918-50111-B0iUVF46200911-201208

LT.GRAY,TRIM10,11

main67918-50111-C0iUVF46200809-200911

BLACK,TRIM2#

main67918-50121-A0iUVF45200704-200809

IVORY,TRIM00,06

main67918-50121-A1iUVF45200809-200911

MELLOW WHITE,TRIM01,05,07,08

main67918-50121-A2iUVF45200911-201209

IVORY,TRIM02,03

main67918-50121-B0iUVF45200704-200809

LT.GRAY,TRIM10,11

main67918-50121-C0iUVF45200704-200809

BLACK,TRIM20,21

73135BCOVER, SHOULDER BELT ANCHOR, RH

main73135-50070-A0iUVF4#200704-200710

IVORY,TRIM00,06

main73135-50070-A1iUVF4#200704-200710

MELLOW WHITE,TRIM01,05,07,08

main73135-50070-B0iUVF4#200704-200710

LT.GRAY,TRIM10,11,20,21

main73135-50080-A0iUVF4#200710-200809

IVORY,TRIM00,06

main73135-50080-A1iUVF4#200710-200809

MELLOW WHITE,TRIM01,05,07,08

main73135-50080-B0iUVF4#200710-200809

LT.GRAY,TRIM10,11,20,21

main73135-50080-A2iUVF45; UVF46200911-201209

main73135-50090-C0iUVF45; UVF46200911-201209

73136BCOVER, SHOULDER BELT ANCHOR, RH

main73136-50070-A0iUVF4#200704-200710

IVORY,TRIM00,06

main73136-50070-A1iUVF4#200704-200710

MELLOW WHITE,TRIM01,05,07,08

main73136-50070-B0iUVF4#200704-200710

LT.GRAY,TRIM10,11,20,21

main73136-50080-A0iUVF4#200809-200911

IVORY,TRIM00,06

main73136-50080-A1iUVF4#200710-200809

MELLOW WHITE,TRIM01,05,07,08

main73136-50080-B0iUVF4#200809-200911

LT.GRAY,TRIM1#,2#

main73136-50080-A2iUVF45; UVF46200911-201209

main73136-50090-C0iUVF45; UVF46200911-201209

9018904059

main90189-04059

9356054014

main93560-54014

37 parts on this diagram · 1 diagram in section
