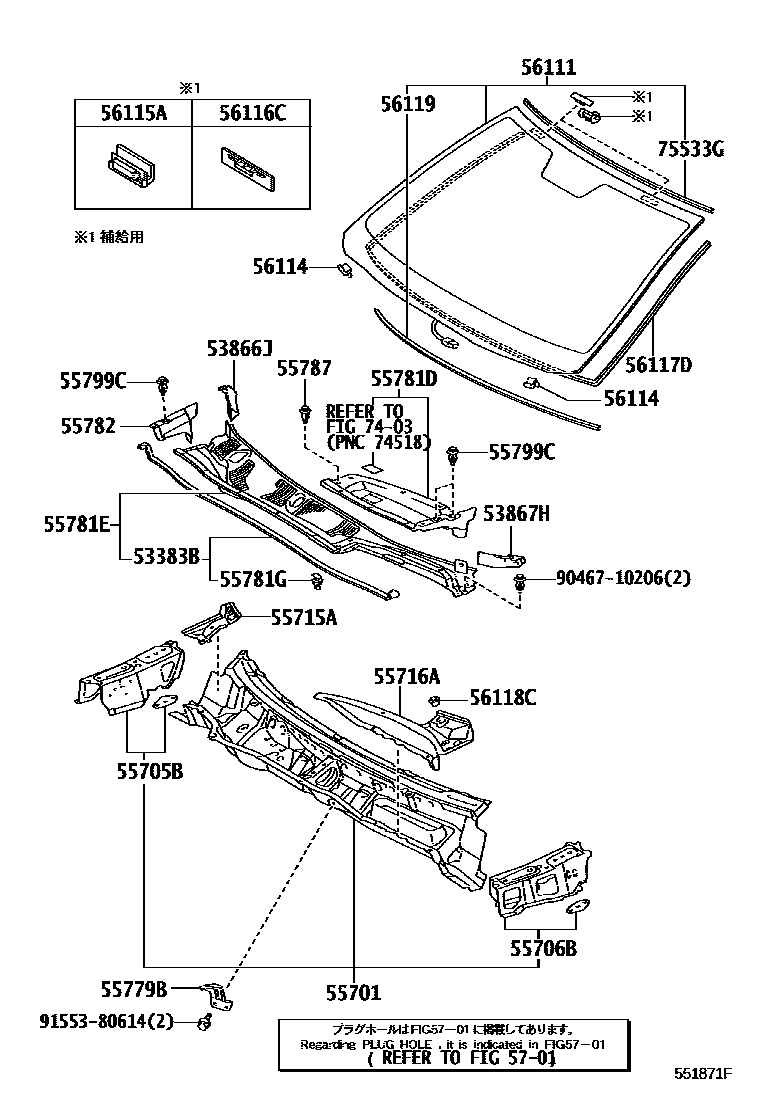

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-50060iUVF4#200809-200911

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-50040iUVF4#200809-200911

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-50040iUVF4#200704-200809

55701PANEL SUB-ASSY, COWL

main55700-50191iUVF4#200809-200911

main55700-50192iUVF4#201109-201110

main55700-50193iUVF4#201111-201209

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-50901iUVF4#200704-200809

main55705-50902iUVF4#201111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-50901iUVF4#200704-200809

main55706-50902iUVF4#201111

55715ABRACE, COWL TOP TO APRON, RH

main55715-50080iUVF4#200809-200911

55716ABRACE, COWL TOP TO APRON, LH

main55716-50080iUVF4#200809-200911

55779BBRACKET, WIRING HARNESS MOUNTING

main55779-50030iUVF4#200911

55781DLOUVER, COWL TOP VENTILATOR, RH

main55782-50060iUVF4#200704-200809

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-50080supersedes 55708-50061iUVF4#200704-200705

main55708-50081supersedes 55708-50061iUVF4#200706-200809

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×9iUVF4#200809-200911

55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH

main55785-50040iUVF4#200809-200911

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-07076-C0×4iUVF4#200809-200911

BLACK

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-10170-C0×3iUVF4#200911-201209

BLACK

56111GLASS, WINDSHIELD

main56101-50330supersedes 56101-50600iUVF45; UVF46200704-200708

main56101-50331supersedes 56101-50600iUVF45; UVF46200709-200809

main56101-50340supersedes 56101-50600iUVF4#; UVF45200704-200708

main56101-50341supersedes 56101-50600iUVF4#; UVF45200709-200809

main56101-50350supersedes 56101-50351iUVF45; UVF46200704-200708

main56101-50351supersedes 56101-50600iUVF45; UVF46200911

main56101-50360supersedes 56101-50351iUVF45; UVF46200704-200708

main56101-50361supersedes 56101-50600iUVF4#; UVF45200809-200911

main56101-50370supersedes 56101-50600iUVF45200704-200708

main56101-50371supersedes 56101-50600iUVF45200809-200911

main56101-50380supersedes 56101-50351iUVF45; UVF46200704-200708

main56101-50381supersedes 56101-50600iUVF45; UVF46200809-200911

main56101-50390supersedes 56101-50600iUVF4#; UVF45200704-200708

main56101-50391supersedes 56101-50600iUVF4#; UVF45200709-200809

main56101-50400supersedes 56101-50351iUVF45; UVF46200704-200708

main56101-50401supersedes 56101-50351iUVF45; UVF46200809-200911

main56101-50410supersedes 56101-50600iUVF45; UVF46200704-200708

main56101-50411supersedes 56101-50600iUVF4#; UVF45200809-200911

main56101-50600iUVF45200809-200911

main56101-50610supersedes 56101-50600iUVF45200809-200911

main56101-50620supersedes 56101-50600iUVF4#; UVF45200911

main56101-50630supersedes 56101-50600iUVF4#; UVF45200911

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2iUVF4#200704-200809

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iUVF4#200911

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iUVF4#200911

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-50120iUVF4#; UVF45; UVF46200704-200809

56118CRETAINER, WINDSHIELD GLASS, NO.2

main56118-30080iUVF4#200704-200809

56119SEAL, WINDSHIELD GLASS

main56119-50050iUVF4#200704-200809

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-50050iUVF4#200704-200809

9046710206

main90467-10206

9155380614

main91553-80614

27 parts on this diagram · 1 diagram in section
