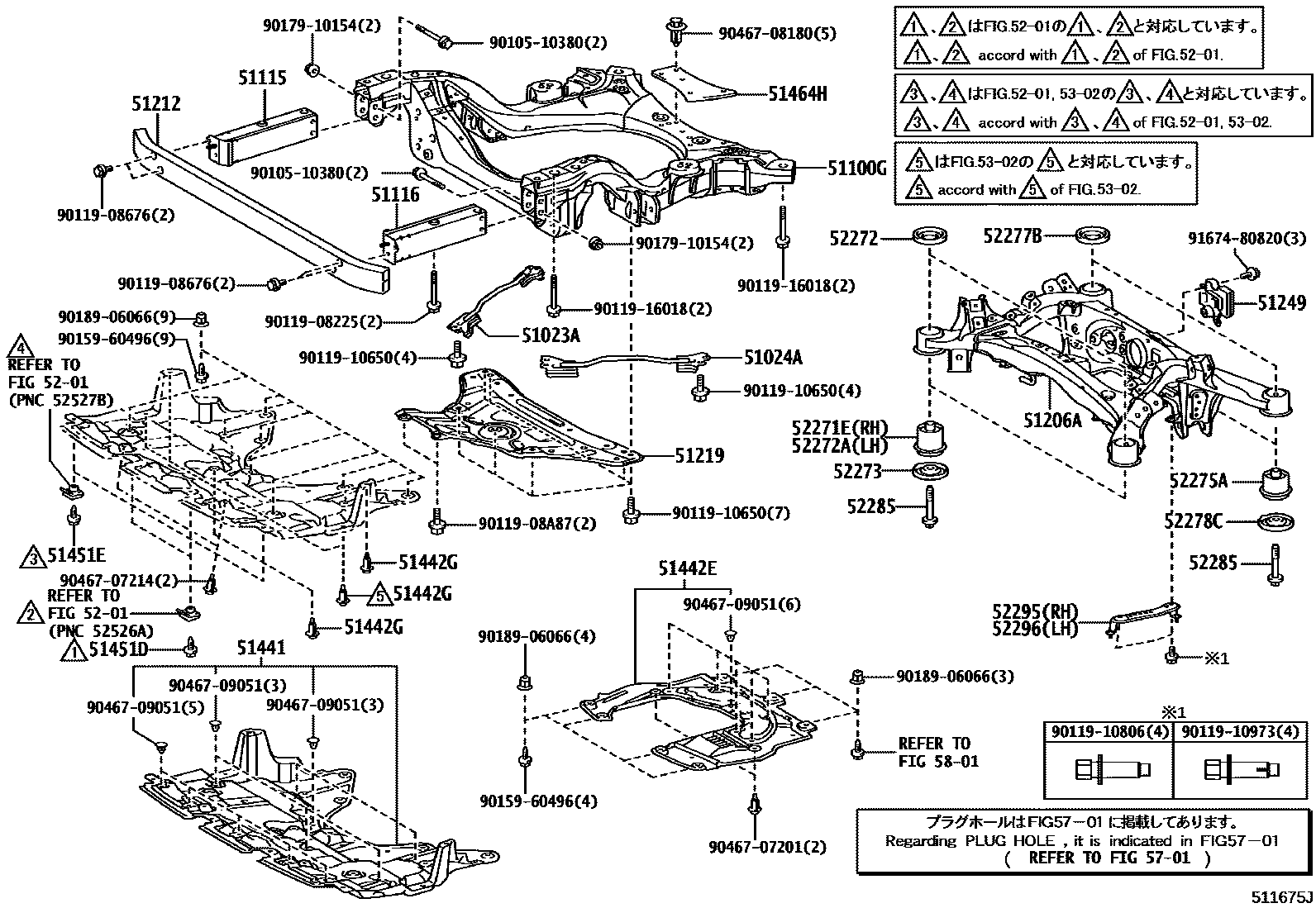

SUSPENSION CROSSMEMBER & UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-50010iUVF4#200704-200809

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-50010iUVF4#200704-200809

51100GFRAME ASSY, FRONT

main51100-50030iUVF4#200704-200809

51115RAIL, FRAME SIDE, REAR RH

main51107-50021iUVF4#200704-200809

main51107-50022iUVF4#201106

51116RAIL, FRAME SIDE, REAR LH

main51108-50021iUVF4#200704-200809

main51108-50022iUVF4#201106

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50050iUVF4#200704-200809

51212CROSSMEMBER, FRONT SUSPENSION, LOWER

main51212-50031iUVF4#200704-200809

main51212-50050iUVF4#200911-201108

main51212-50051iUVF4#201109-201209

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-50030iUVF4#200704-200809

51249DAMPER, REAR SUSPENSION MEMBER

main51249-50030iUVF4#200704-200809

51441COVER, ENGINE UNDER, NO.1

main51440-50050iUVF4#200704-200809

main51440-50051iUVF4#200809-200911

51442ECOVER, ENGINE UNDER, NO.2

main51420-50030iUVF4#200704-200809

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07166×5iUVF4#200704-200809

main90467-07214×5iUVF4#201004-201209

51451DSCREW, NO.1

main90159-60477×2iUVF4#200704-200809

51451ESCREW, NO.2

main90159-60477×2iUVF4#200704-200809

51464HSILENCER, TRANSMISSION UNDER

main51464-50010iUVF4#200704-200809

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-50060iUVF4#200704-200809

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52278-50030×2iUVF4#200704-200809

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-50010iUVF4#200704-200809

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-50020×2iUVF4#200704-200809

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50071×2iUVF4#200704-200809

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-50031×2iUVF4#200704-200809

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020×2iUVF4#200704-200809

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×4iUVF4#200704-200809

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50030iUVF4#200704-200809

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50030iUVF4#200704-200809

5701HOLE PLUG

→ Go to FIG 57-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010510380

main90105-10380

9011908225

main90119-08225

9011908676

main90119-08676

9011908A87

main90119-08A87

9011910650

main90119-10650

9011910806

main90119-10806

9011910973

main90119-10973

9011916018

main90119-16018

9015960496

main90159-60496

9017910154

main90179-10154

9018906066

main90189-06066

9046707201

main90467-07201

9046707214

main90467-07214

9046708180

main90467-08180

9046709051

main90467-09051

9167480820

main91674-80820

44 parts on this diagram · 1 diagram in section
