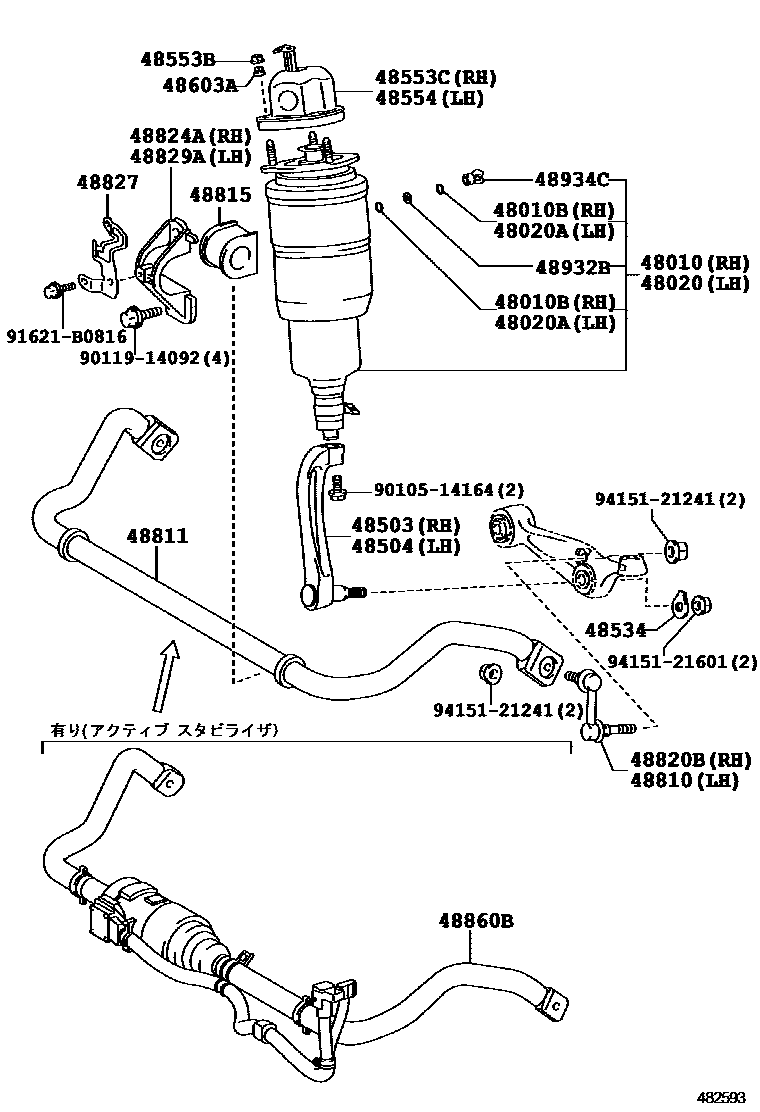

FRONT SPRING & SHOCK ABSORBER

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50200iUVF4#200704-200711

main48010-50201iUVF4#200712-200809

main48010-50260iUVF4#200911-201104

main48010-50261iUVF4#201105-201201

main48010-50262iUVF4#201202-201209

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2iUVF4#200704-200809

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50200iUVF4#200704-200711

main48020-50201iUVF4#200712-200809

main48020-50260iUVF4#200911-201104

main48020-50261iUVF4#201105-201201

main48020-50262iUVF4#201202-201209

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2iUVF4#200704-200809

48503BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER RH

main48503-50010iUVF4#200704-200809

48504BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, LOWER LH

main48504-50010iUVF4#200704-200809

48534PLATE, FRONT SHOCK ABSORBER UPPER BRACKET

main48534-30010×2iUVF4#200704-200809

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6iUVF4#200704-200809

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-50120iUVF4#200704-200809

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-50120iUVF4#200704-200809

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iUVF4#200911

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020iUVF4#200704-200809

48811BAR, STABILIZER, FRONT

main48811-50150iUVF45200809-200911

main48811-50220iUVF46200911

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50220×2iUVF4#200911

main48815-50230×2iUVF45200911

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030iUVF4#200911

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50060iUVF4#200704-200809

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-50010iUVF4#200704-200809

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-50010iUVF4#200704-200809

48860BACTUATOR ASSY, FRONT ACTIVE STABILIZER CONTROL

main48860-50010iUVF45200704-200809

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUVF4#200704-200809

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUVF4#200704-200809

9010514164

main90105-14164

9011914092

main90119-14092

91621B0816

main91621-B0816

9415121241

main94151-21241

9415121601

main94151-21601

26 parts on this diagram · 1 diagram in section
