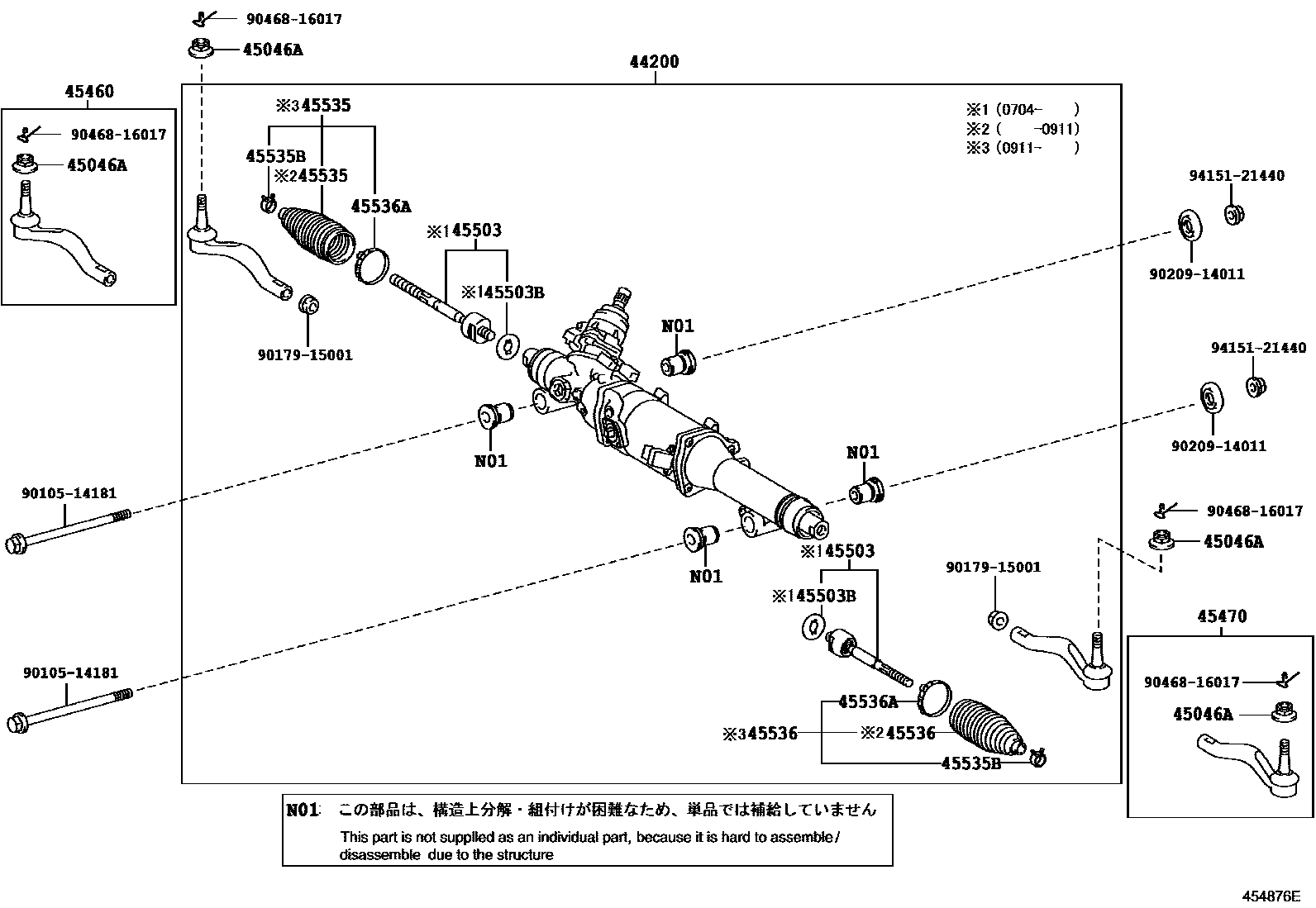

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-50260iUVF4#200704-200809

main44200-50350iUVF4#200809-200911

main44200-50351iUVF4#201109

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12012×2iUVF4#200704-200809

45460ROD ASSY, TIE, RH

main45460-59095iUVF4#200809-200911

45470ROD ASSY, TIE, LH

main45470-59105iUVF4#200911

45503END SUB-ASSY, STEERING RACK

main45503-59145×2iUVF4#201109-201209

main45503-59155×2iUVF4#200704-200809

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-16002×2iUVF4#200911

45535BOOT, STEERING RACK, NO.1

main45535-26060iUVF4#200704-200809

main45535-29005iUVF4#200911-201209

main45535-59065iUVF4#201109-201209

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iUVF4#201109-201209

main90467-19021×2iUVF4#200704-200809

45536BOOT, STEERING RACK, NO.2

main45535-26060iUVF4#200704-200809

main45535-29005iUVF4#200911-201209

main45535-59065iUVF4#201109-201209

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016×2iUVF4#200704-200809

9010514181

main90105-14181

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

9415121440

main94151-21440

15 parts on this diagram · 2 diagrams in section
