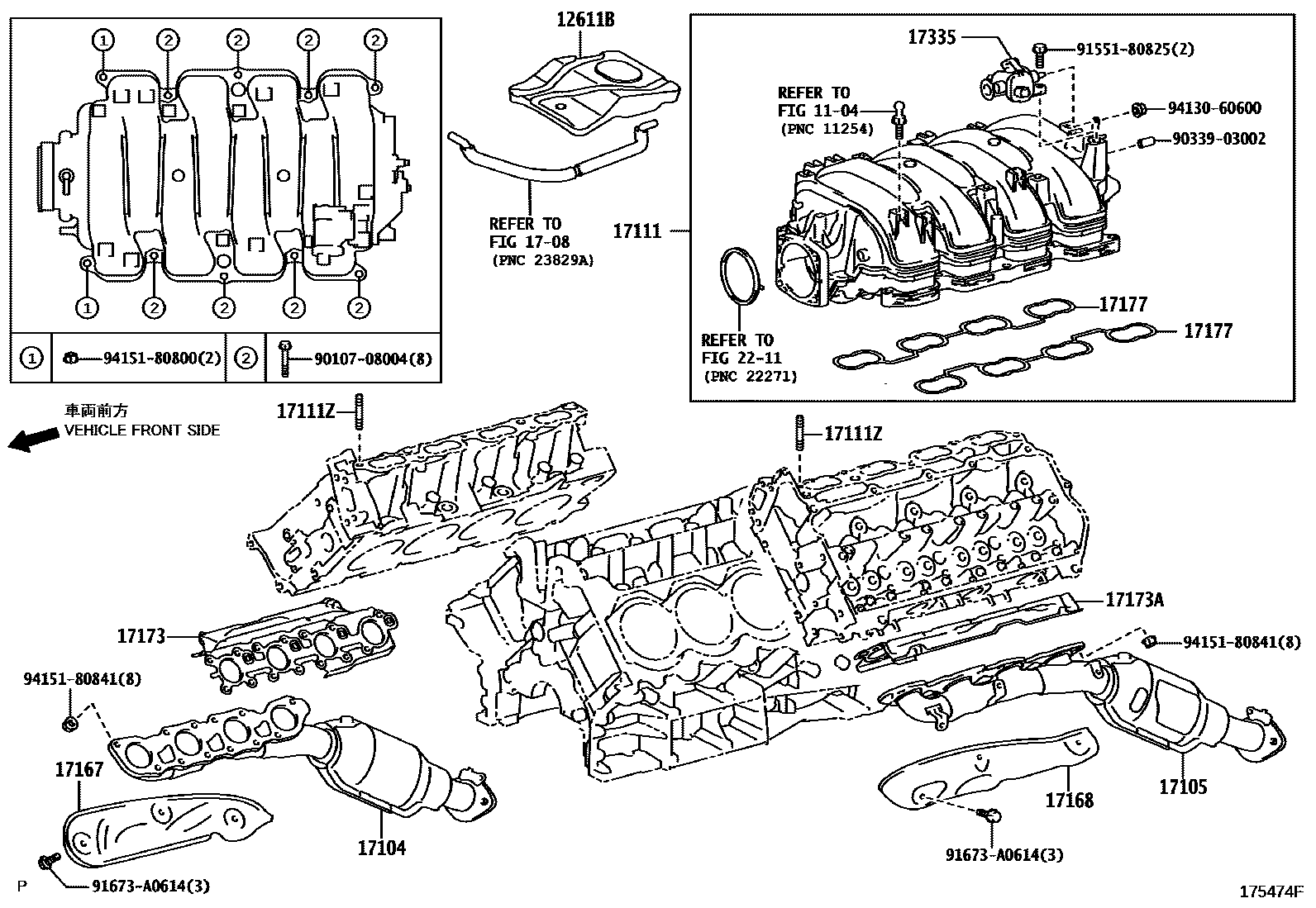

MANIFOLD

1104CYLINDER HEAD

→ Go to FIG 11-04

12611BCOVER, ENGINE, NO.1

main12611-38020i2URFSE..UVF4#200704-200809

1708VACUUM PIPING

→ Go to FIG 17-08

17104MANIFOLD SUB-ASSY, EXHAUST, RH

main17104-38050i2URFSE..UVF4#200704-200809

17105MANIFOLD SUB-ASSY, EXHAUST, LH

main17105-38050i2URFSE..UVF4#200704-200809

17111MANIFOLD, INTAKE

main17120-38021i2URFSE..UVF4#200704-200809

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2URFSE..UVF4#200704-200809

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-38090i2URFSE..UVF4#200704-200809

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-38100i2URFSE..UVF4#200704-200809

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-38040i2URFSE..UVF4#200704-200809

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-38040i2URFSE..UVF4#200704-200809

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-38020×2i2URFSE..UVF4#200704-200809

17335ACTUATOR, INTAKE AIR CONTROL VALVE

main17335-38020i2URFSE..UVF4#200704-200809

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9010708004

main90107-08004

9033903002

main90339-03002

9155180825

main91551-80825

91673A0614

main91673-A0614

9413060600

main94130-60600

9415180800

main94151-80800

9415180841

main94151-80841

21 parts on this diagram · 1 diagram in section
