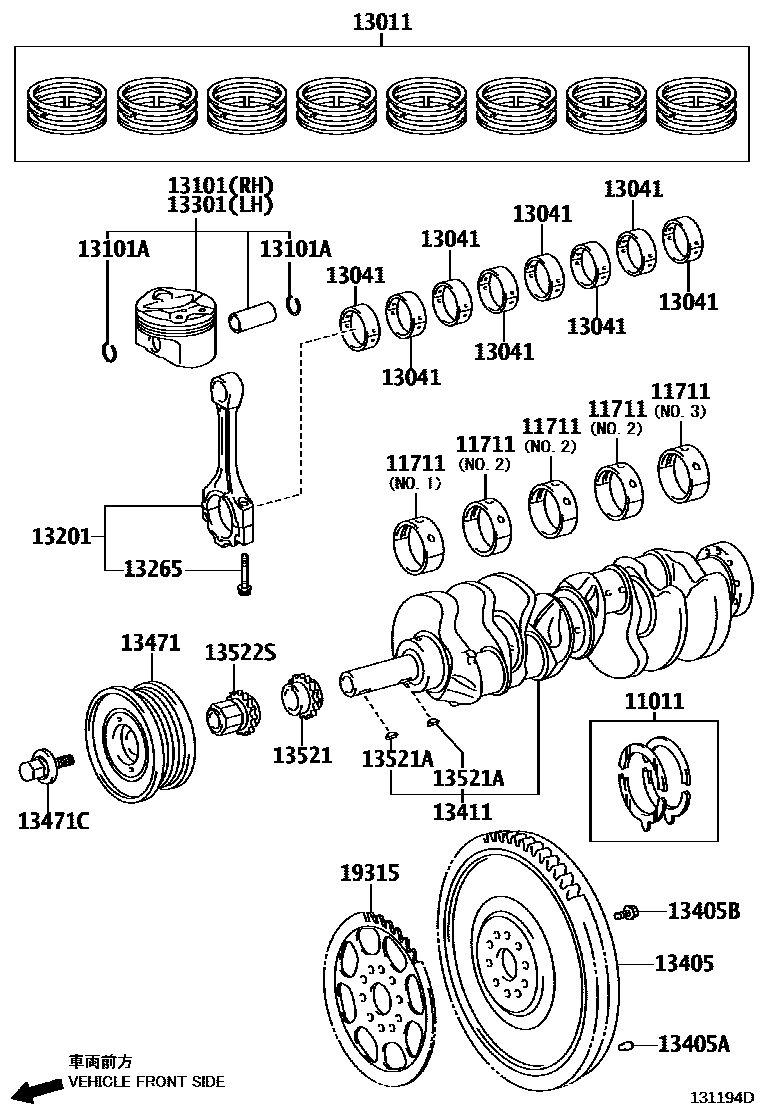

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-38040i2URFSE..UVF4#200704-200711

main11011-38050i2URFSE..UVF4#200809-200911

11711BEARING, CRANKSHAFT

main11071-38010-C4×3i2URFSE..UVF4#200809-200911

main11071-38010-D4×3i2URFSE..UVF4#200809-200911

main11071-38010-D5×3i2URFSE..UVF4#200809-200911

main11071-38010-E5×3i2URFSE..UVF4#200704-200809

main11071-38010-E6×3i2URFSE..UVF4#200911

main11071-38010-F6×3i2URFSE..UVF4#200911

main11071-38010-F7×3i2URFSE..UVF4#200809-200911

main11071-38010-G7×3i2URFSE..UVF4#200809-200911

main11071-38010-G8×3i2URFSE..UVF4#200809-200911

main11071-38010-H8×3i2URFSE..UVF4#200911

main11072-38010-D5i2URFSE..UVF4#200704-200809

main11072-38010-E5×2i2URFSE..UVF4#200911

main11072-38010-E6×2i2URFSE..UVF4#200901-200911

main11072-38010-F6i2URFSE..UVF4#200809-200901

main11072-38010-F7×2i2URFSE..UVF4#200901-200911

main11072-38010-G7i2URFSE..UVF4#200809-200901

main11072-38010-G8i2URFSE..UVF4#200809-200901

main11072-38010-H8i2URFSE..UVF4#200704-200809

main11072-38010-H9i2URFSE..UVF4#200704-200809

main11072-38010-K9i2URFSE..UVF4#200704-200809

main11701-38030-D5i2URFSE..UVF4#200704-200809

main11701-38030-E5i2URFSE..UVF4#200704-200809

main11701-38030-E6i2URFSE..UVF4#200704-200809

main11701-38030-F6i2URFSE..UVF4#200809-200901

main11701-38030-F7i2URFSE..UVF4#200809-200901

main11701-38030-G7i2URFSE..UVF4#200809-200901

main11701-38030-G8i2URFSE..UVF4#200704-200809

main11701-38030-H8i2URFSE..UVF4#200809-200901

main11701-38030-H9i2URFSE..UVF4#200809-200901

main11701-38030-K9i2URFSE..UVF4#200809-200901

13011RING SET, PISTON

main13011-38090i2URFSE..UVF4#200704-200809

13041BEARING, CONNECTING ROD

main13041-38050-02×8i2URFSE..UVF4#200704-200709

main13041-38050-03×8i2URFSE..UVF4#200704-200709

main13041-38050-04×8i2URFSE..UVF4#200704-200709

main13041-38050-05×8i2URFSE..UVF4#200704-200709

main13041-38050-06×8i2URFSE..UVF4#200704-200709

main13041-38050-07×8i2URFSE..UVF4#200704-200709

main13041-38070-02×8i2URFSE..UVF4#200809-200911

main13041-38070-03×8i2URFSE..UVF4#200911

main13041-38070-04×8i2URFSE..UVF4#200709-200809

main13041-38070-05×8i2URFSE..UVF4#200911

main13041-38070-06×8i2URFSE..UVF4#200809-200911

main13041-38070-07×8i2URFSE..UVF4#200809-200911

13101PISTON SUB-ASSY, W/PIN

main13101-38120×4i2URFSE..UVF4#200911

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×16i2URFSE..UVF4#200911

13201ROD SUB-ASSY, CONNECTING

main13201-38041×8i2URFSE..UVF4#200704-200712

main13201-38042×8i2URFSE..UVF4#200712-200809

13265BOLT, CONNECTING ROD

main13265-31020×16i2URFSE..UVF4#200704-200809

13301PISTON SUB-ASSY, W/PIN, LH

main13301-38020×4i2URFSE..UVF4#200704-200809

13405FLYWHEEL SUB-ASSY

main13405-38030i2URFSE..UVF4#200704-200809

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i2URFSE..UVF4#200704-200809

13405BBOLT, FLYWHEEL SETTING

main90910-02129×10i2URFSE..UVF4#200704-200809

13411CRANKSHAFT

main13401-38030i2URFSE..UVF4#200704-200809

13471PULLEY, CRANKSHAFT

main13470-38020i2URFSE..UVF4#200704-200809

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-18003i2URFSE..UVF4#200704-200809

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-38020i2URFSE..UVF4#200704-200806

main13521-38030i2URFSE..UVF4#200806-200809

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i2URFSE..UVF4#200704-200809

13522SSPROCKET, CRANKSHAFT TIMING, LH

main13522-38020i2URFSE..UVF4#200704-200806

main13522-38030i2URFSE..UVF4#200806-200809

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-38020i2URFSE..UVF4#200704-200809

19 parts on this diagram · 1 diagram in section
