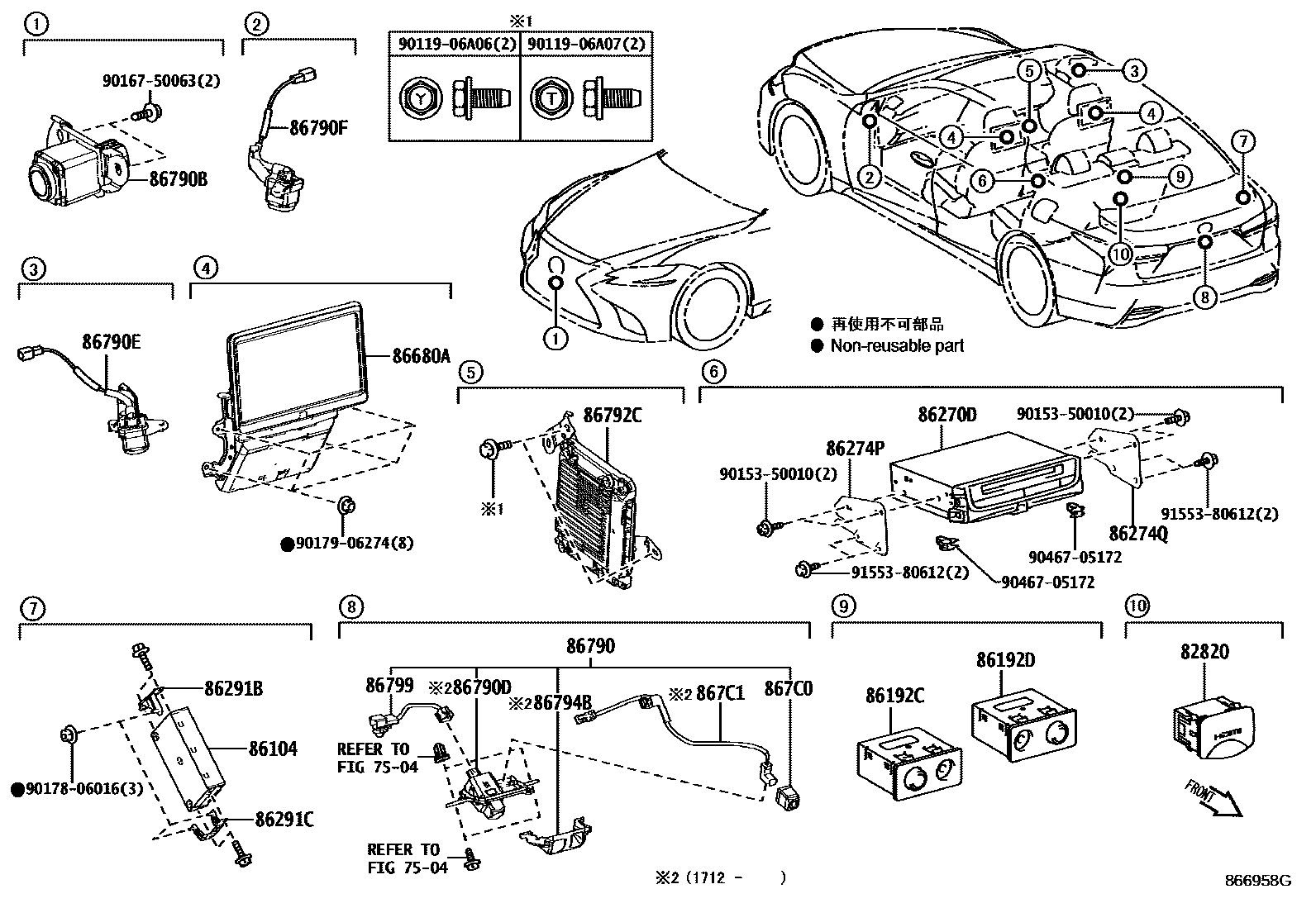

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1������������� 0003 1������������� 0004 1��� 0005 1���

7504

82820COVER, CONNECTOR

main82821-58050iGVF5#,VXFA5#201710-201806

main82821-58050-C2iGVF50,VXFA5#201806-201809

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main862B1-50010iGVF5#,VXFA5#201809-201909

main862B1-50021iGVF5#,VXFA5#201909-202010

main862B1-50040iGVF5#,VXFA5#202010-202210

86192CTERMINAL, HEADPHONE, RH

main86192-50030iGVF5#,VXFA5#201710-201809

main86192-50050iGVF5#,VXFA5#202210

86192DTERMINAL, HEADPHONE, LH

main86192-50040iVXFA5#201809-202008

main86192-50060iGVF5#,VXFA5#202210

86270DDISC PLAYER ASSY

main86270-50E60iGVF5#,VXFA5#201710-201809

main86270-50E61iGVF5#,VXFA5#202010-202210

main86270-50G90iGVF5#,VXFA5#202210

86274PBRACKET, DISC PLAYER, NO.1

main86274-50320iGVF5#,VXFA5#201710-201809

86274QBRACKET, DISC PLAYER, NO.2

main86274-50330iVXFA5#201809-202008

86291BBRACKET, TELEVISION, NO.1

main86291-50060iGVF5#,VXFA5#201710-201809

86291CBRACKET, TELEVISION, NO.2

main86291-50070iGVF5#,VXFA5#201809-202010

86680ADISPLAY ASSY, TELEVISION

main86680-50400×2iGVF5#,VXFA5#201809-201909

main86680-50450iGVF5#201909-202010

main86680-50460iGVF5#201909-202010

main86680-50530iGVF5#,VXFA5#202010-202210

main86680-50540iGVF5#,VXFA5#202010-202210

main86680-50590iGVF5#,VXFA5#202210

main86680-50600iGVF5#,VXFA5#202210

86790CAMERA ASSY, TELEVISION

main867A0-50100iGVF5#,VXFA5#202210-202310

main867A0-50111iGVF5#,VXFA5#202310

main867B0-50150iGVF5#202010-202210

main867A0-50050supersedes 867B0-50050iGVF5#,VXFA5#201710-201808

main867A0-50051supersedes 867B0-50051iVXFA5#201809-202008

main867A0-50101iGVF55202310-202510

main867B0-50110supersedes 867B0-50100iVXFA5#202010-202210

86790BCAMERA ASSY, TELEVISION, FR

main86790-50100supersedes 867B0-50060iGVF5#202010-202210

main86790-50180iGVF5#,VXFA5#202210-202310

main86790-50181iGVF5#,VXFA5#202310

main867B0-50060supersedes 867B0-50060iVXFA5#202010-202210

86790DCAMERA ASSY, TELEVISION, RR

main867B0-50140iGVF5#,VXFA5#201712-201808

main867B0-50141iVXFA5#201809-202008

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-33300iVXFA5#202210-202310

main86790-50170iGVF5#202210-202310

main86790-50171iGVF5#,VXFA5#202310-202411

main86790-52820iGVF5#,VXFA5#202411

main867B0-50130supersedes 867B0-50130iVXFA5#202010-202210

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-33290iVXFA5#202210-202310

main86790-50160iGVF5#202210-202310

main86790-50161iGVF5#,VXFA5#202310-202411

main86790-52810iGVF5#,VXFA5#202411

main867B0-50120supersedes 867B0-50120iVXFA5#202010-202210

86792CCOMPUTER, PARKING ASSIST

main86792-50340iGVF5#,VXFA5#201710-201809

main86792-50341iGVF5#,VXFA5#201809-201909

main86792-50342iVXFA5#201909-202008

main86792-50370iVXFA5#202010-202210

main86792-50411iGVF5#202010-202210

main86792-50430iVXFA5#202210-202310

main86792-50450iGVF5#202210-202310

main86792-50520iGVF5#,VXFA5#202310-202411

main86792-50521iGVF5#,VXFA5#202411

main86792-50570iGVF55202310-202501

main86792-50571iGVF55202501-202510

86794BCOVER, TELEVISION CAMERA

main86794-50020iGVF5#202010-202310

main86794-50040iGVF5#,VXFA5#202310

main86794-50010iVXFA5#201712-202008

86799WIRE, TELEVISION CAMERA

main86799-50030iVXFA5#201710-202008

main86799-50090iGVF5#,VXFA5#202210

867C0CAMERA ASSY, INNER MIRROR

main867C0-50030iGVF5#202010-202310

main867C0-50060iGVF5#,VXFA5#202310

main867C0-50010iVXFA5#201710-202008

867C1WIRE, MIRROR CAMERA

main867C1-50050iVXFA5#201712-202008

9011906A06

main90119-06A06

9011906A07

main90119-06A07

9015350010

main90153-50010

9016750063

main90167-50063

9017806016

main90178-06016

9017906274

main90179-06274

9046705172

main90467-05172

9155380612

main91553-80612

29 parts on this diagram · 5 diagrams in section
