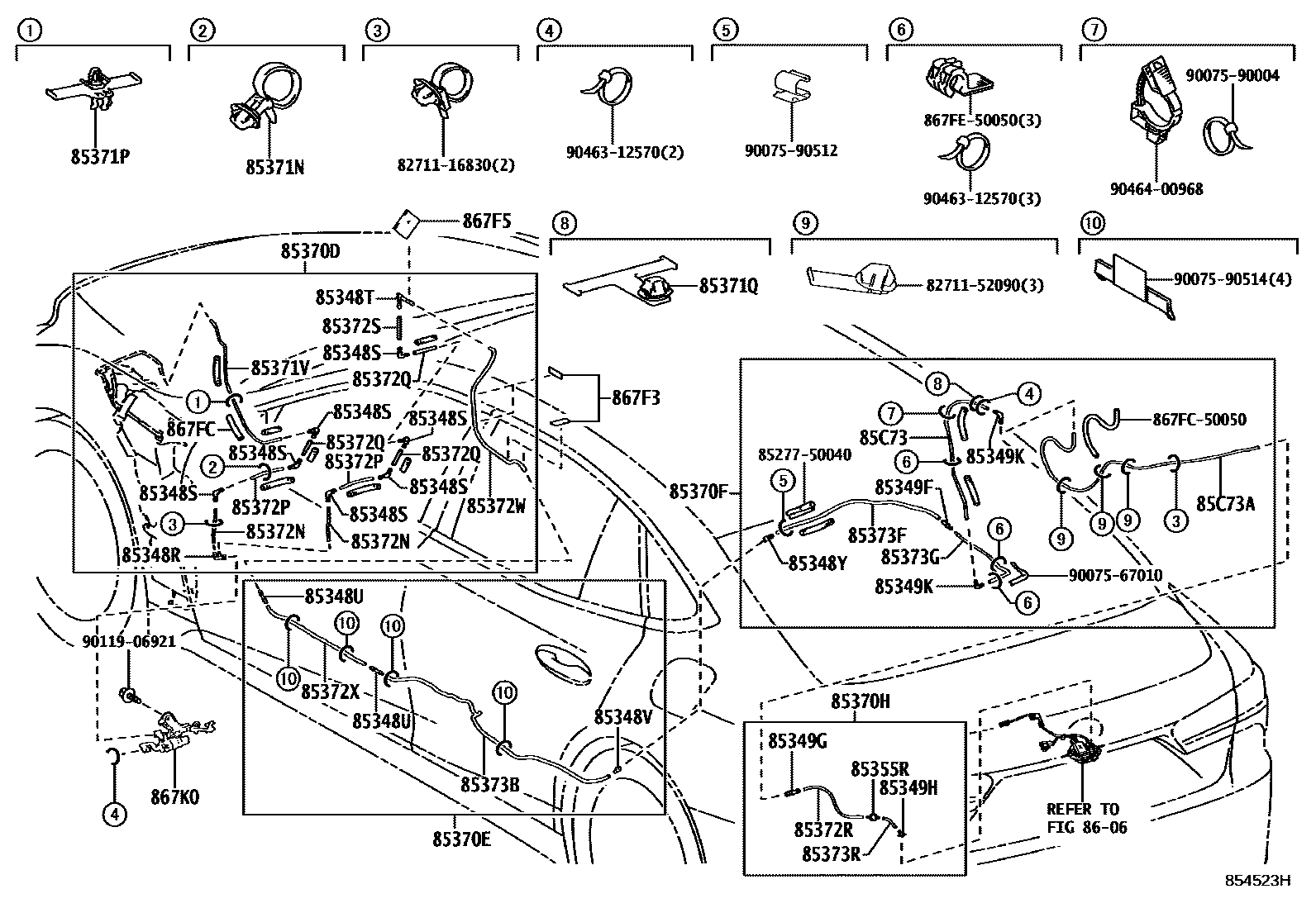

REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85355RVALVE, REAR WASHER HOSE
85370DHOSE ASSY, REAR WASHER, NO.1
85370EHOSE ASSY, REAR WASHER, NO.2
85370HHOSE ASSY, REAR WASHER, NO.4
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85373GHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.9
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85C73HOSE, REAR WASHER, NO.12(FROM JOINT TO JOINT)
85C73AHOSE, REAR WASHER, NO.13(FROM JOINT TO JOINT)
8606CAMERA & REAR MONITOR DISPLAY
867F3TAPE, WASHER HOSE
867F5SILENCER, WASHER HOSE
867FCCUSHION, CLEANER HOSE
867K0HOSE & PUMP ASSY, SENSOR WASHER
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8527750040HOSE, HEADLAMP CLEANER, C
main85277-50040
867FC50050CUSHION, CLEANER HOSE
main867FC-50050
867FE50050
main867FE-50050
9007567010
main90075-67010
9007590004
main90075-90004
9007590512
main90075-90512
9007590514
main90075-90514
9011906921
main90119-06921
9046312570
main90463-12570
9046400968
main90464-00968
49 parts on this diagram · 4 diagrams in section
