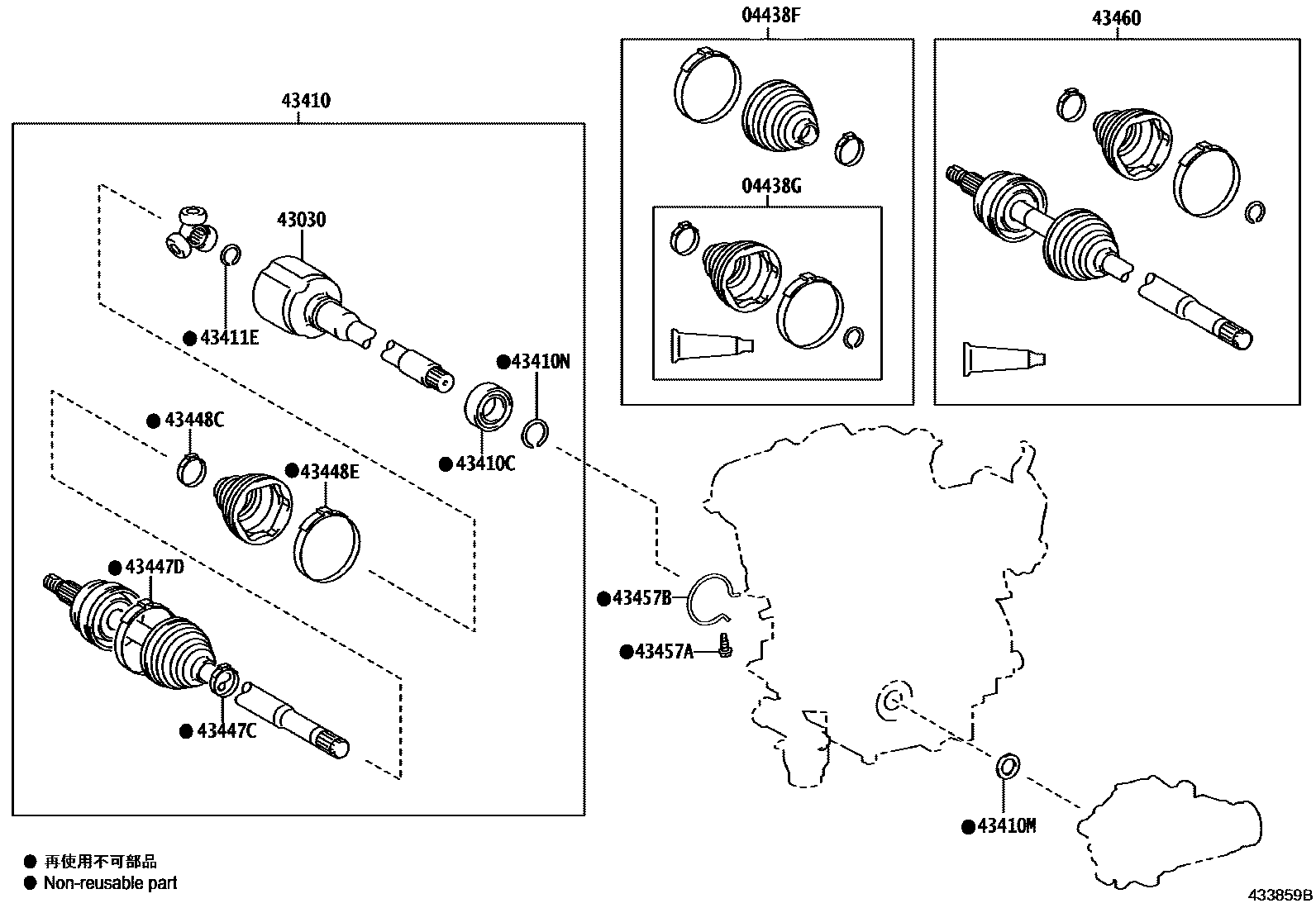

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-50060iVXFA55201710-202008

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-50050iVXFA55201710-202008

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-50030iVXFA55201710-202008

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-50040iVXFA55201710-202008

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36010iVXFA55201710-202008

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35070iVXFA55201710-202008

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iVXFA55201710-202008

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-48010iVXFA55201710-202008

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48070iVXFA55201710-202008

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-50090iVXFA55201710-202008

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-50070iVXFA55201710-202008

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42346-50010iVXFA55201710-202008

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iVXFA55201710-202008

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iVXFA55201710-202008

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59885iVXFA55201710-202008

15 parts on this diagram · 2 diagrams in section
