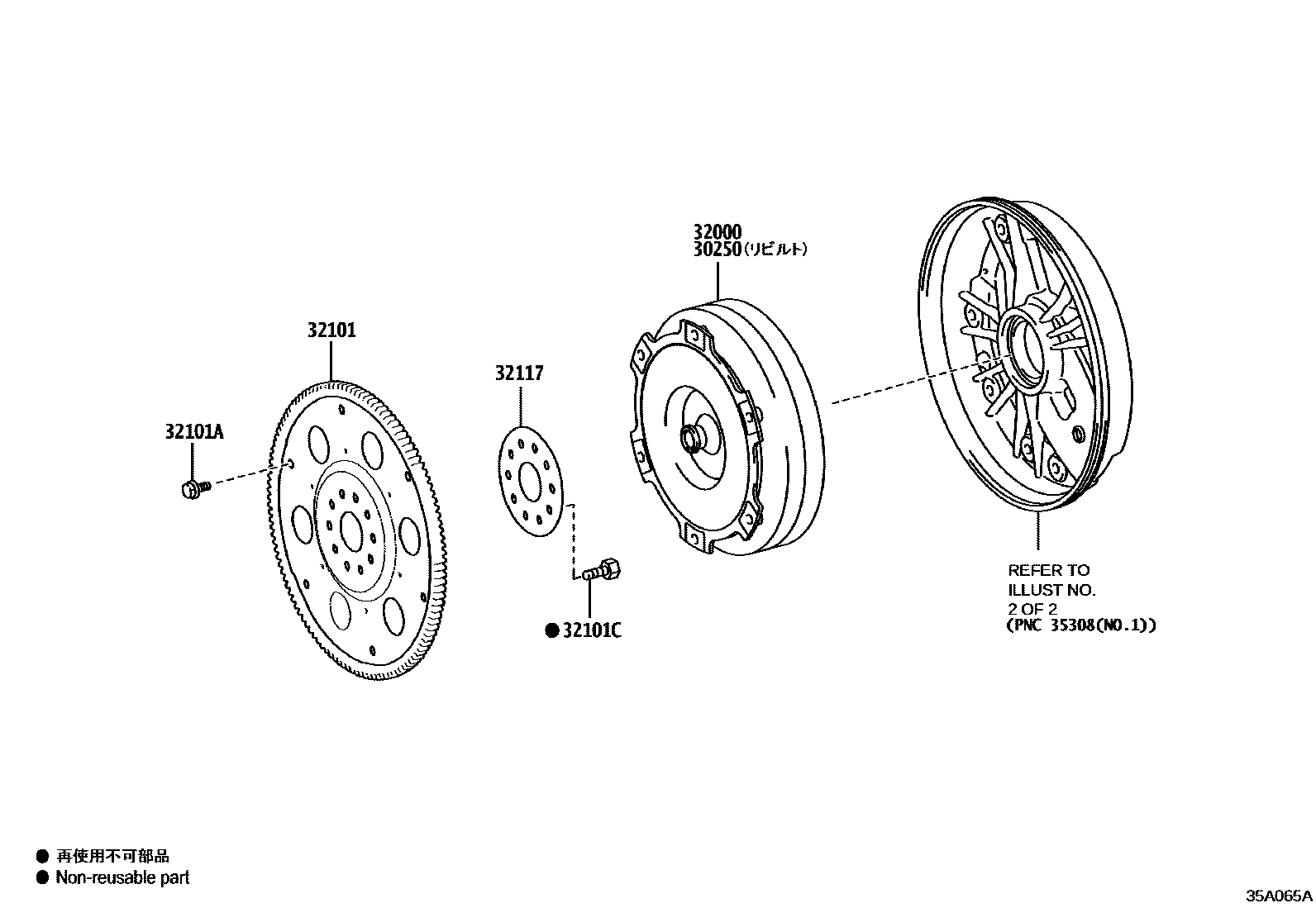

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AGA0E,AGA0F 0002 1AGA0E,AGA0F

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-50060iVXFA5#201712-202008

32000CONVERTER ASSY, TORQUE

main32000-50060iVXFA5#201712-202008

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-50030iVXFA5#201712-202008

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10595iVXFA5#201712-202008

main90105-10596×5iVXFA5#201712-202008

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90910-02129×10iVXFA5#201712-202008

main90910-A2002×10iVXFA5#201712-202008

32117SPACER, DRIVE PLATE, REAR

main32117-50020iVXFA5#202010

6 parts on this diagram · 2 diagrams in section
