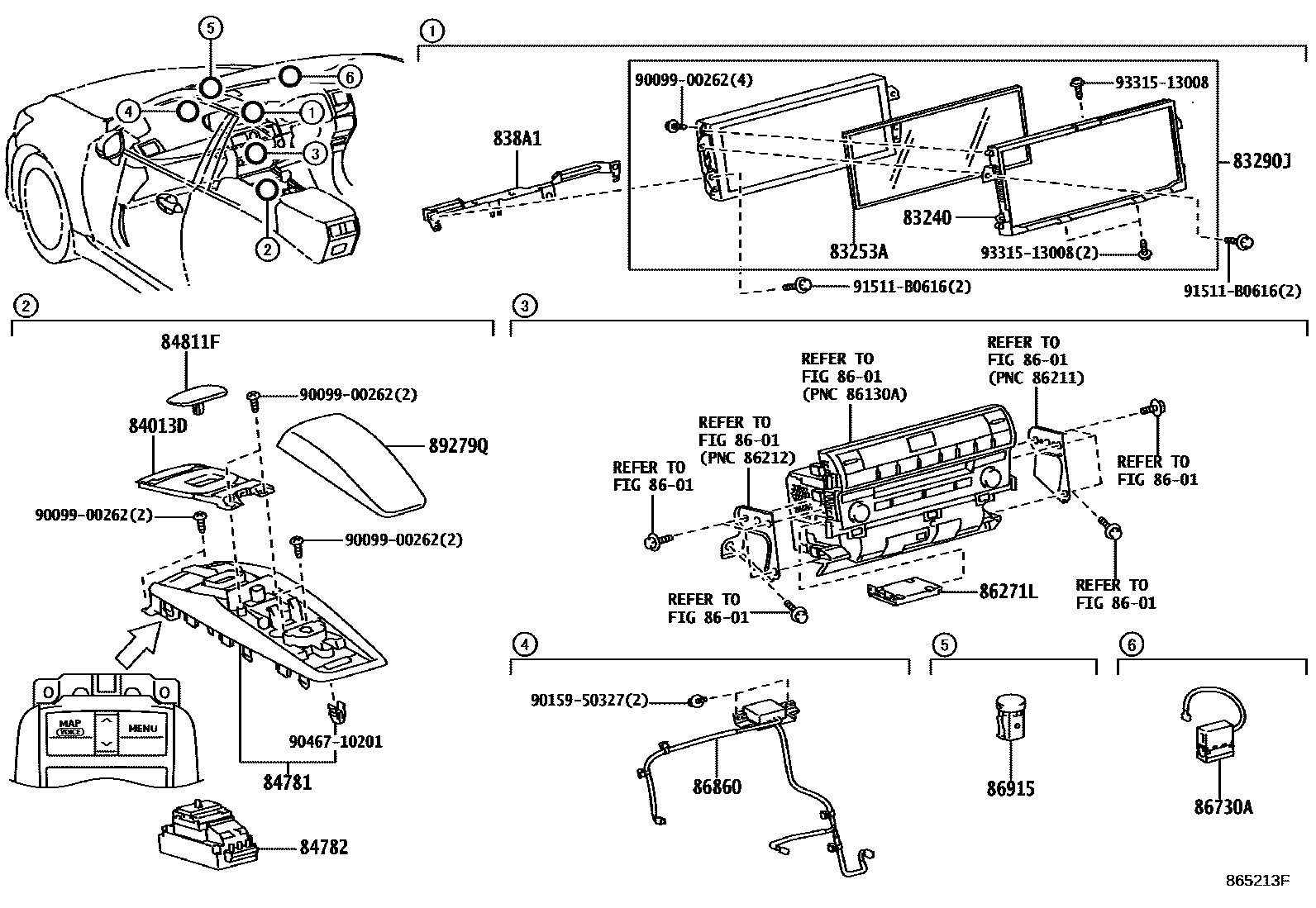

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

83240CASE ASSY, MULTI INFORMATION DISPLAY

main83811-50010iUSF4#201209-201309

main83811-50080iUSF4#201309

83253AGLASS, ACCESSORY METER

main83253-50010iUSF4#201209-201309

main83253-50080iUSF4#201309

83290JMETER ASSY, ACCESSORY

main83290-50070iUSF4#; USF40,45; USF41,46201209-201309

main83290-50140iUSF4#; USF40,45; USF41,46201309-201410

main83290-50210supersedes 83290-50190iUSF4#; USF40,45; USF41,46201410-201509

main83290-50260iUSF4#; USF40,45; USF41,46201509

838A1BRACKET, COMBINATION METER

main838A1-50030iUSF4#201209

84013DPANEL SUB-ASSY, INTEGRATION

main84013-50010iUSF4#201209-201509

main84013-50020iUSF4#201509-201708

84781SWITCH, REMOTE OPERATION

main84781-50030iUSF4#201209-201509

main84781-50090iUSF4#201509

84782BOARD, REMOTE OPERATION

main84782-50010iUSF4#201209-201410

main84782-50020iUSF4#201410-201509

main84782-50030iUSF4#201509

84811FKNOB, SWITCH

main84811-50010iUSF4#201209-201410

main84811-50011iUSF4#201410-201506

main84811-50020iUSF4#201509

main84811-50030iUSF4#201507-201509

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86271DISC, DISC PLAYER

main86271-30A71iUSF4#201410-201503

main86271-30A72iUSF4#201504-201509

main86271-48260iUSF4#201509-201603

main86271-48261iUSF4#201604-201609

main86271-53401iUSF4#201609-201704

main86271-53402iUSF4#201704-201708

86271LHARD DISC

main86271-30662iUSF4#201209-201304

main86271-30663iUSF4#201304-201308

main86271-30664iUSF4#201309-201404

main86271-30665iUSF4#201404-201408

main86271-30666iUSF4#201409-201410

86730AMICROPHONE ASSY, TELEPHONE

main86730-50070iUSF4#201209-201309

main86730-50090iUSF4#201309-201708

86860ANTENNA ASSY, NAVIGATION

main86880-50020iUSF4#201209-201410

main86880-50030iUSF4#201410

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iUSF4#201209

89279QCOVER

main89279-50040iUSF4#201209-201509

main89279-50050iUSF4#201509

9009900262

main90099-00262

9015950327

main90159-50327

9046710201

main90467-10201

91511B0616

main91511-B0616

9331513008

main93315-13008

20 parts on this diagram · 2 diagrams in section
